PEMP (9559) Linux 12.3" Screen for BMW X1 F48 EVO Wired and Wireless Apple CarPlay Retrofit Android Auto use The OEM Bluetooth 2018-

$379.00
$379.00
$349.00
Shipping calculated at checkout.
  1. [VERTICAL SCREEN] Vertical screen style, Parallel with eye line of sight, that is safe and comfortable; easier to touch. Only suitable for BMW EVO original 6PIN LVDS system.
  2. [SUPPORT OEM BLUETOOTH] Supports wireless and wired CarPlay and Android Auto, you can use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.
  3. [HD SCREEN] 12.3 HD IPS Display Screen, Resolution Up To 1920 * 1080; with Capacitive Touch Function; Support Car's Knob to Control CarPlay or Android Auto Interface; Support Playing Music and Video Via USB.

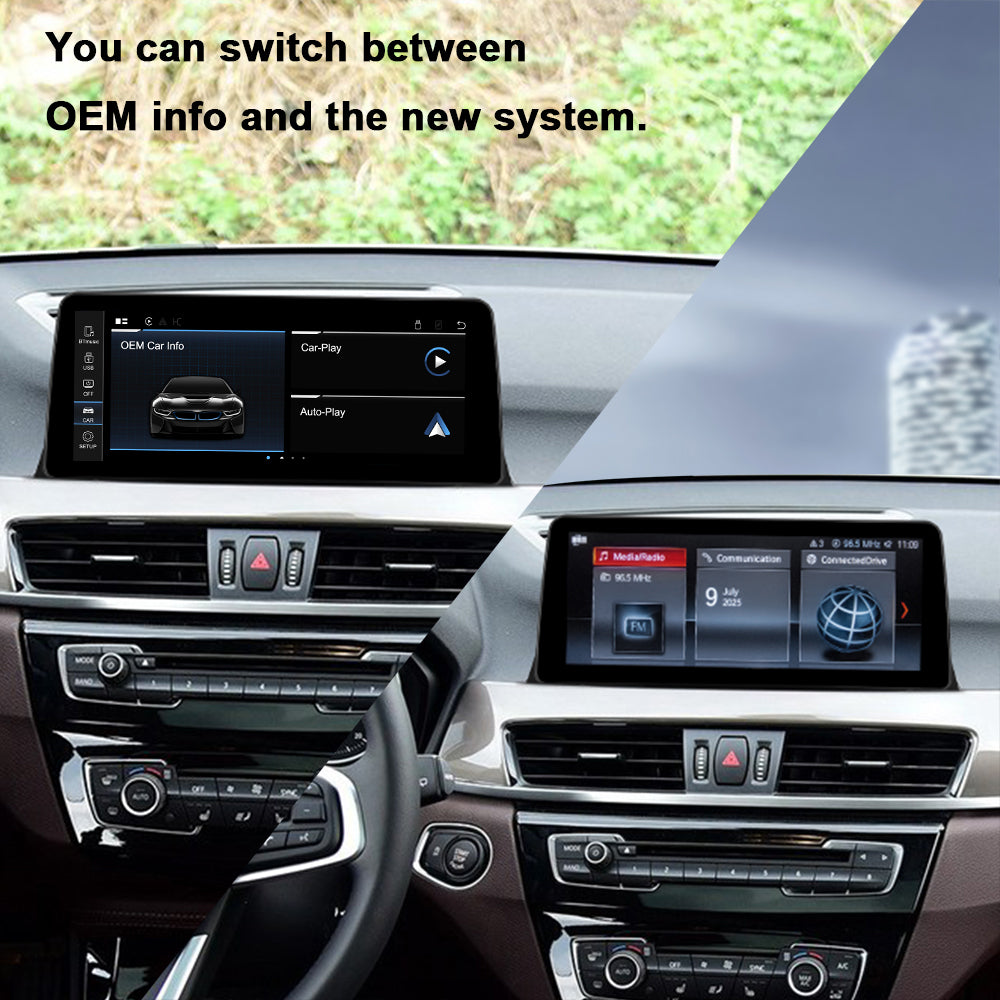

  4. [OEM INFO] Support Factory Monitor Information Display; You Can Long Press Menu Button to Switch Between Factory OEM Interface and CarPlay Interface; Support Steering Wheel Button Function.
  5. [QUICKLY] With Linux System, You Can Get CarPlay or Android Auto Interface Quickly; In 2 Seconds You Can Get Reverse Camera Video.
  6. [CAMERA] Support The OEM Camera and after market Camer & front Camera (720P or Less). The Reversing Picture Will Be Very Clear.
  7. [SPECIAL ATTENTION] If you need to get Airplay and USB flash drive sound, you need a separately purchased USBAUX box and AUX cable, please contact us.
Camera:
$19.90
$65.00
$69.00
Pay in installment: $661 /mth
Payment
MastercardVisaAmerican Express PayPalMaestroKlarnaJCBDiscover

  1. System: Linux
  2. CPU: 8368XU
  3. Main frequency: 1GHz
  4. Storage: SPI flash 1Gb
  5. Memory: DDR3 2Gb
  6. Resolution: 1920*720RGB
  7. Bluetooth Version: BT5.0
  8. Carplay/Android Auto: Wired/Wireless
  9. AirPlay Mirror link: Wired/Wireless
  10. USB Version: 2.0
  11. UI interface: Three Styles

1-Year Warranty
In stock! Ships within 1-2 business days.
Respond to questions within 12 hours.
Return to your nearest address. (USA and Europe)
Use the OEM Bluetooth to Calling in CarPlay Android auto

If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.
NOTE: This connection can only be used to get music sound when your vehicle has Bluetooth audio capability.

Read More
Utilizes Non-Air-Gap Lamination Technology

Non-air-gap lamination technology has the following advantages over ordinary lamination
1. The image is more real and clear;
2. The viewing angle can reach 178 degrees;
3. Long-term use effectively prevent dust from entering the display;

Read More

Intelligent Interconnection

Support wired and wireless

Built-in Wired And Wireless Carplay For BMW F48

You can use Apple Maps, iTunes, Spotify Music and other apps on your phone.

Built-in Wired And Wireless Android Auto For BMW F48

You can use Google Maps, Spotify Music and other apps on your phone.

Built-in Wired And Wireless Mirror link For BMW F48

You can mirror pictures or videos from your phone to your display through the Mirror Link program.

OEM Functions

Support reverse camera and OEM system display

Set the OEM Resolution

Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly. Setup>Car Settings> Original Car's Screen Resolution> Select the item

Support the OEM or after-market Camera

Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Product Installation and Setup

Approaches to common problems
Product Manual

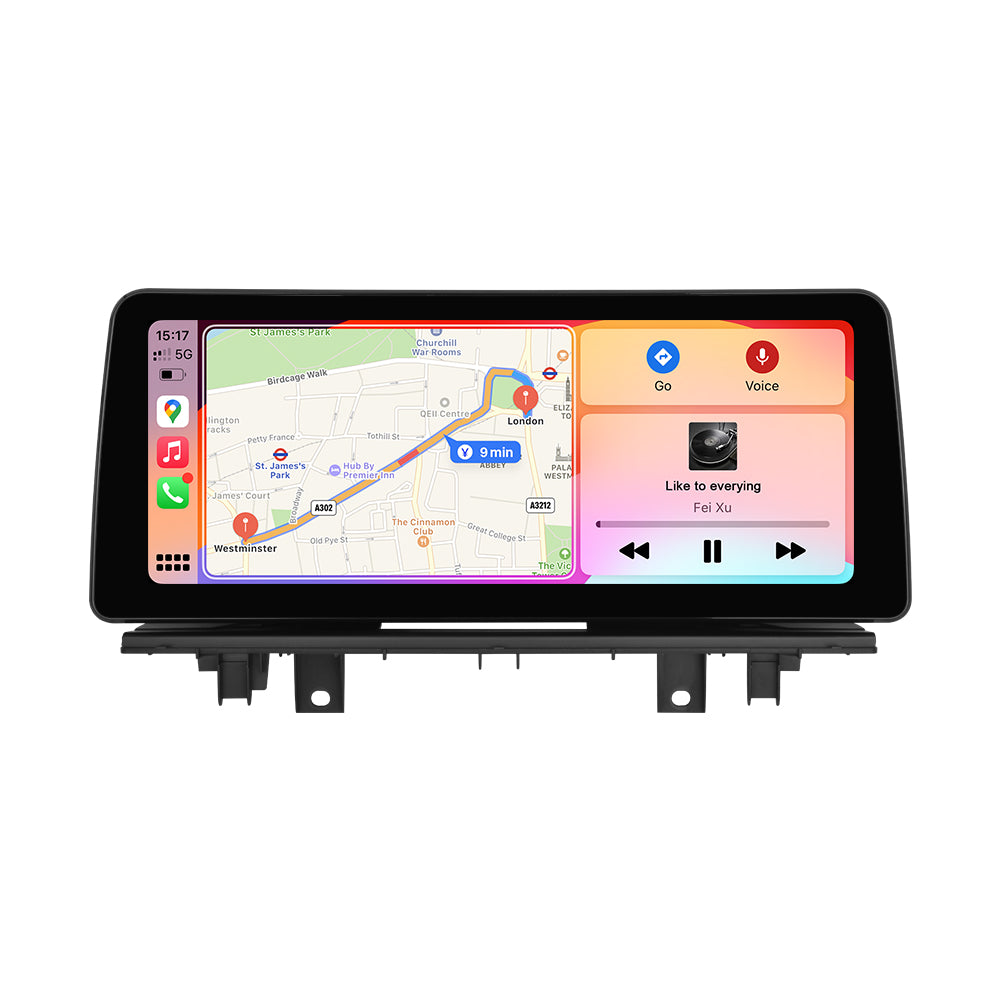

Use The 12.3" Big Ips Touch Screen

Use 12.3" big screen, the Resolution: 1920X720 Aspect ratio: 8:3, Viewing angle: 170 degrees

Need use The USB IN1 Connect The Wired Function

Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

Move The Original Host Fiber Optic Cable To The Linux Harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Linux harness. Otherwise you can't get the car information and the Linux sound. And it will be accompanied by a heartbeat wheezing sound.

Why can't get OEM car info and Sound?

Please resolve the sound and Car OEM Car info you are currently experiencing based on the two scenarios above.

You May Also Like

IN THE BOX

1× Linux Screen

1 x ISO Wiring Harness

1 x USB Cable

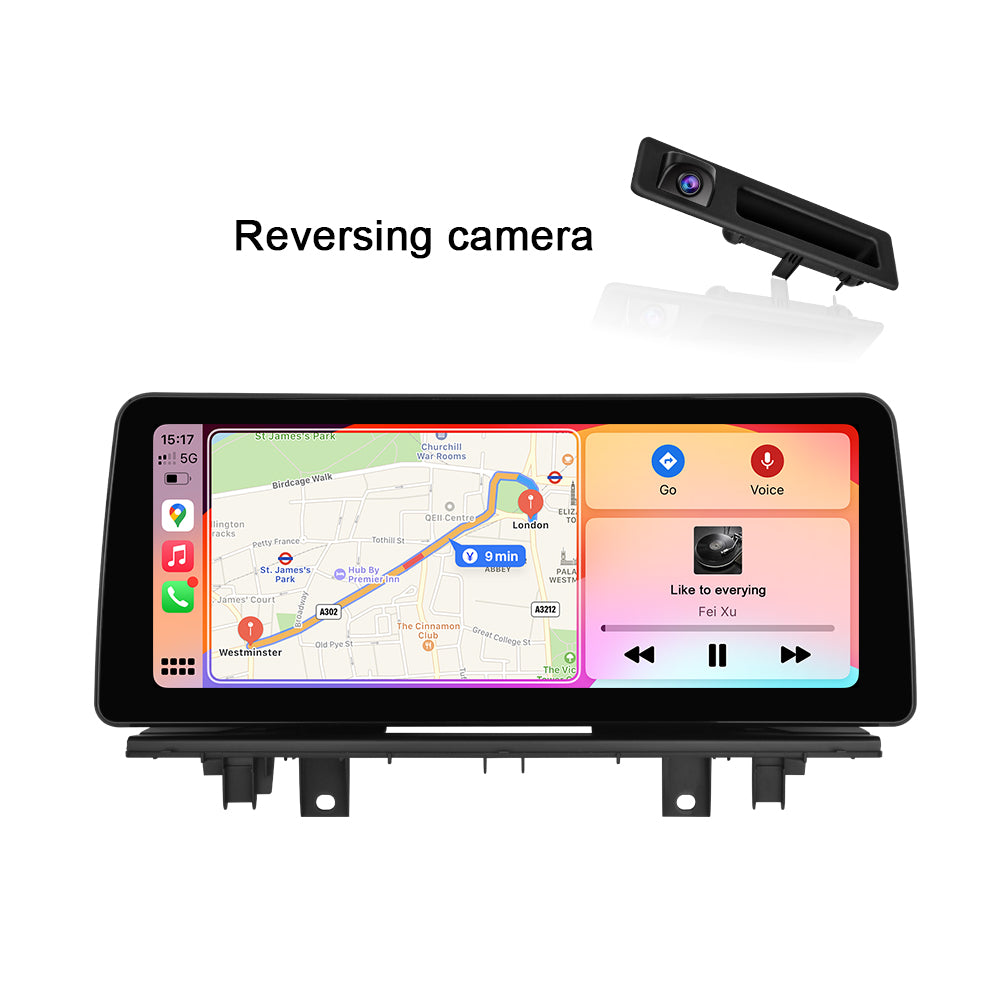

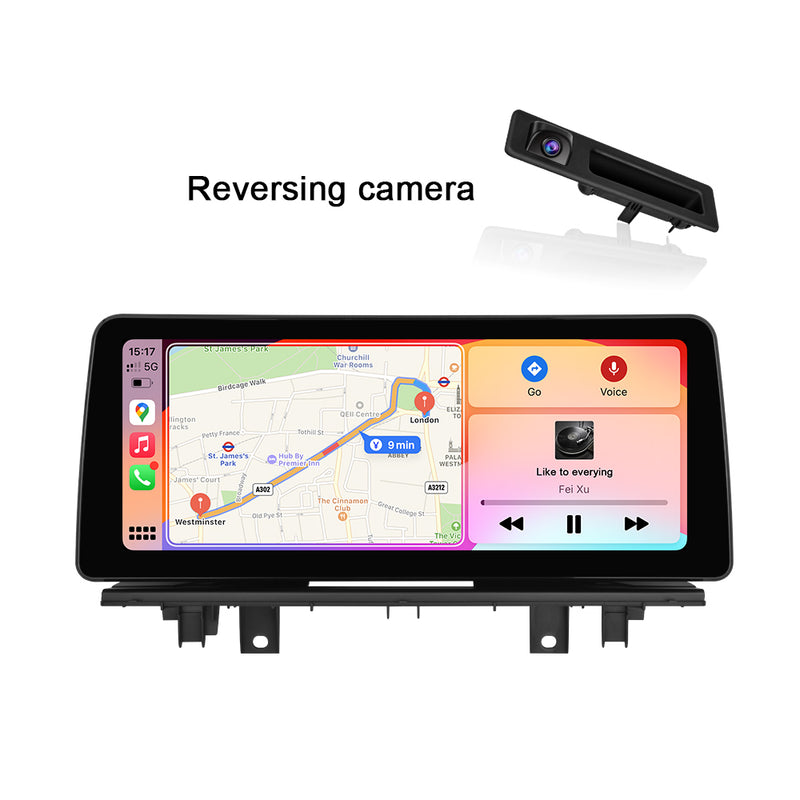

Reversing Camera (Only for With Camera option)

Frequently Asked Questions

Pre-Sales FAQ

Answer your pre-sales questions

  1. PEMP screen products are abundant, if you want to buy the right PEMP screen for your car, you need to know which kind of OEM system your car has first.
  2. Below we'll cover the differences and appearance of the 4 common BMW screen systems
  3. 1. The CCC system is used in older models, with a simple display interface and four functions, communication, Climate, navigation and Entertainment, that can be distinguished at a glance.
  4. 配置图片
  5. The CCC LVDS cable is a 10 PIN LVDS cable:
  6. 配置图片
  7. 配置图片
  8. 2. The CIC system, with significantly more features than the CCC, is arranged in a vertical list. Maps, phone, radio, navigation, CD, etc. are available, and you can set options and view vehicle information at the same time.
  9. 配置图片
  10. The LVDS cable used in the CIC system is a 4 PIN LVDS cable:
  11. 配置图片
  12. The NBT system is still arranged in a vertical list and begins to have a connected driving function as well as a mobile office, and the system is more technological compared to the CIC detailing with highlights and shadows.
  13. 配置图片
  14. NBT uses a 6 PIN LVDS cable
  15. 配置图片
  16. 2. The EVO is arranged horizontally for a richer functionality and an easily recognizable system UI.
  17. 配置图片
  18. 配置图片
  19. EVO system still utilizes the 6 PIN LVDS connector.
  20. 配置图片
  1. This content describes in detail the difference between Android screen and LINUX, I believe you will have a clear understanding of them after reading all the content, and then according to your needs to buy the right screen for you.
  2. You can also copy the video link to your browser off to see the detailed video tutorial:
  3. https://youtu.be/wReZG_1Aajo
  4. Or scan the QR code of the video to watch it:
  5. 配置图片
  6. Below is a general overview of the differences between the Android screen and the LINUX screen:
  7. 配置图片
  8. Points of difference:
  9. Difference 1: Start-up speed difference
  10. Android screen startup time is about 35 seconds,
  11. LINUX screen startup time is about 9 seconds.
  12. 配置图片
  13. Difference 2: Price difference
  14. Android screens are relatively expensive due to their functionality and highly regulated configuration.
  15. LINUX screens are relatively simple in terms of functionality and configuration and are relatively inexpensive.
  16. 配置图片
  17. Difference 3: APP Download and Installation.
  18. Android screen supports downloading APP and installing，
  19. LINUX screen can't download APP and only supports using some APP by connecting Carplay and Android Auto.
  20. 配置图片
  21. Difference 4: SIM card and TF/SD card difference
  22. Android screen has built-in SIM card and SD/TF card slot, support using SIM card network and TF/SD card memory expansion.
  23. LINUX screen has no SIM card and SD/TF card slot, does not support SIM card and TF/SD card function.
  24. 配置图片
  25. Difference 5: Built-in navigation .
  26. Android screen with built-in navigation, support for connecting GPS antenna, you can use the navigation directly without connecting the phone.
  27. The LINUX screen does not have built-in navigation and does not support the connection of a GPS antenna; navigation must be used through the phone with Carplay and Android Auto connected.
  28. 配置图片
  29. Difference 6: Memory Difference
  30. Android screens support the selection of memory configurations.
  31. LINUX screens do not support the selection of memory configurations.
  32. 配置图片
  33. Difference 7: Antenna and installation difficulty.
  34. Android screen support GPS and SIM card, standard equipped with GPS and 4G antenna, the installation of the GPS and 4G antenna need to find the location of the installation and the location of the cable, the difficulty of installation is relatively difficult.
  35. LINUX screen does not support GPS and SIM card, do not need to install GPS and 4G antenna, the difficulty of installation is relatively easy.
  36. 配置图片
  37. Difference 8: CPU difference
  38. Android screen uses a Qualcomm processor,
  39. LINUX screen uses a Sunplus processor.
  40. 配置图片
  41. Difference 9: Aftermarket Reverse Camera
  42. Android screen supports installation of 1080P and 720P AHD/CVBS aftermarket reversing cameras.
  43. LINUX only supports to install 720P aftermarket reversing camera.
  44. 配置图片
  45. Similarities:
  46. Similarity 1: Intelligent Connectivity
  47. Both Android and LINUX screens support wireless and wired Carplay & Android Auto connectivity.
  48. 配置图片
  49. Similarity 2: Dual system switching
  50. Both Android and LINUX screens support OEM systems as well as quick switching between corresponding aftermarket systems (Android/LINUX).
  51. 配置图片
  52. Similarity 3: Camera and Radar .
  53. Android screen and LINUX screen both support OEM reverse camera and radar display.
  54. Android screen and LINUX screen both support installation of aftermarket reverse camera.
  55. 配置图片
  56. Similarity 4: Same screen specs.
  57. Both the Android screen and the LINUX screen use touchscreens of the same size and resolution.
  58. 配置图片
After-Sales FAQ

Answer your pre-sales questions

  1. If you are experiencing problems with your OEM system displaying anomalies, you can check your screen and cables one by one by following the steps shown in this document.
  2. 配置图片
  3. You can also copy the video link to your browser off to see the detailed video tutorial:https://youtu.be/0iTuDq0D2Ow
  4. Or scan the QR code of the video to watch it:
  5. 配置图片
  6. Step 1: Press the FM/AM button and check the radio for sound .
  7. A: If you can hear the FM sound, please go to the PEMP system homepage, then click Settings-Car Settings-Original Car’s Screen Resolution in turn, then choose the resolution suitable for your OEM screen,then restart the screen.
  8. 配置图片
  9. B:If you can't hear the FM sound, it means the screen is in unpowered state, you need to check all the ISO harnesses and plugs and unplug them all and plug them in again.  Then check for loose power and LVDS cables behind the screen.
  10. Note: In order to prevent the plug from loosening, the plug is designed to be relatively tight, you can use a little force when inserting, please ensure that the plug is completely
  11. 配置图片
  12. 配置图片
  13. 配置图片
  14. 配置图片
  15. Step 2: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness. Otherwise, it will cause no sound/no time display/no display of OEM system and so on.
  16. 配置图片
  1. If you experience abnormal sound problems, you can check the screen and cables one by one by following the steps in this document.
  2. You can also copy the video link to your browser off to see the detailed video tutorial: https://youtu.be/8sAp9-Lyr5Y
  3. Or scan the QR code of the video to watch it:
  4. 配置图片
  5. Step 1: Click OEM CAR INFO on PEMP home page to enter the OEM system, check whether the OEM system can be displayed normally.
  6. A: If the OEM system displays anomalies, refer to the documentation in the Documentation list on how to handle abnormal OEM system displays.
  7. 配置图片
  8. B: If the OEM system can be displayed normally, please click Multimedia-External Devices, and then select Multimedia Mode as AUX front.
  9. 配置图片
  10. Step 2: Check if the volume is too low, use the screen to play music and use the volume control knob to drastically adjust the volume to increase the volume.
  11. 配置图片
  12. Step 3: Go to Settings-Audio-Volume and turn the volume up.
  13. 配置图片
  14. Step 4: Connect one end of the supplied AUX cable to the AUDIO OUT port on the IOS harness; The other end connects to the car's AUX IN (usually located at the armrest box).
  15. 配置图片
  16. 配置图片
  17. Step 5: Connect the A/B cable plugs to each other.
  18. 配置图片
  19. 配置图片
  20. Step 6: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness.
  21. 配置图片
  22. 配置图片
  23. 配置图片
  24. Step 7: Check the ISO harness plugs and re-unplug and re-insert the plugs .
  25. 配置图片
  26. 配置图片
  27. Step 8: Check the power cable and LVDS cable on the back of the screen and unplug and re-plug them.
  28. 配置图片
