PEMP Car Audio

PEMP (9688) 12.3" Vertical Screen for BMW F10 F11 NBT Wired and Wireless Apple CarPlay Retrofit Android Auto,1920 x 720 Display Mirror Link Car Radio Bluetooth Video Player (2013-2017)

PEMP (9688) 12.3" Vertical Screen for BMW F10 F11 NBT Wired and Wireless Apple CarPlay Retrofit Android Auto,1920 x 720 Display Mirror Link Car Radio Bluetooth Video Player (2013-2017)

Regular price $329.00 USD
Regular price $0.00 USD Sale price $329.00 USD
Sale Sold out
Shipping calculated at checkout.

Built-in Apple CarPlay
Support the wired and wireless Apple CarPlay

Built-in Android Auto
Support the wired and wireless Android auto

Built-in Mirror Link
Support the wired and wireless Mirror Link Function

Metal Casing and Ultra-thin Panel
1. 13MM ultra-thin panel design, aluminum alloy material shell.

2. Narrow bezel process, screen ratio up to 82.3%.

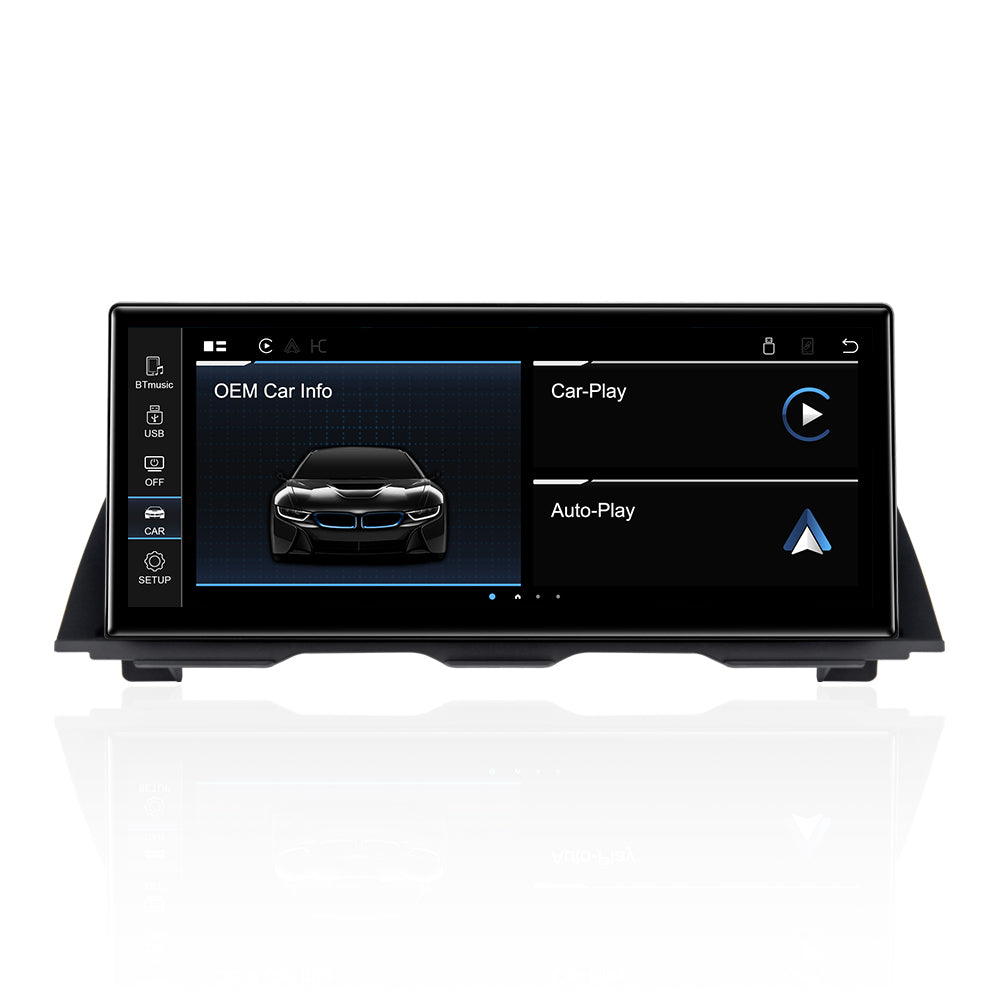

12.3" Big Android Screen
Features a 12.3” IPS display. Wide viewing angle up to 170 degrees.

HD Resolution
High Resolution up to 1920X720RGB

High Screen-to-body Ratio
82.3% screen-to-body ratio using narrow bezels

0-pitch full lamination process and 2.5D touch screen
1. Adopting airless 0-pitch laminating process, the image is more realistic.

2. Using 2.5D touch screen edge processing. Smoother touch.

Solutions To Sound Distortion
After installing the PEMP Screen, if Carplay or Android auto sound distortion occurs, you need to connect plugs GROUND A and GROUND B

Support original steering wheel and button control.
You can use the original steering wheel and knob to control the Android system. Note that F10 F01 does not support steering wheel pulley up and down control.

Use the OEM Bluetooth to Calling in CarPlay Android auto
If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.

Need Use The Usb In1 Connect The Wired Function
Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

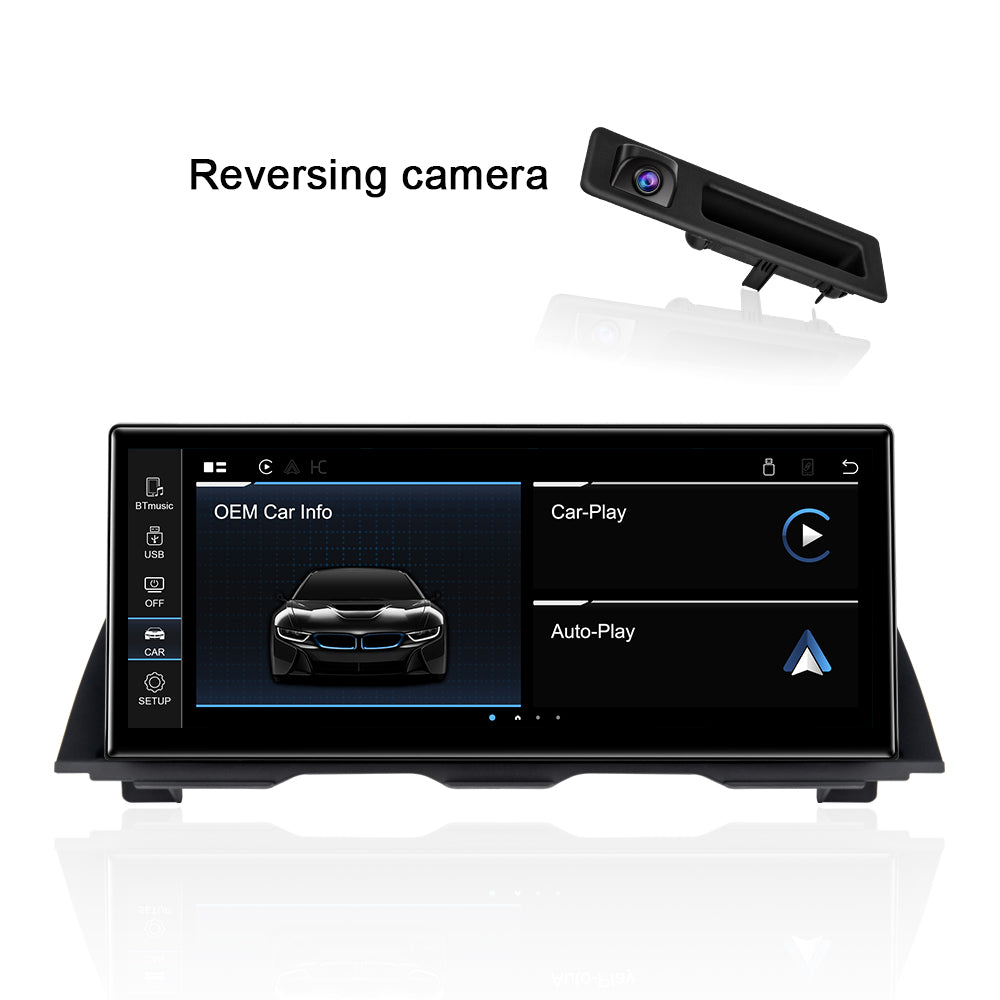

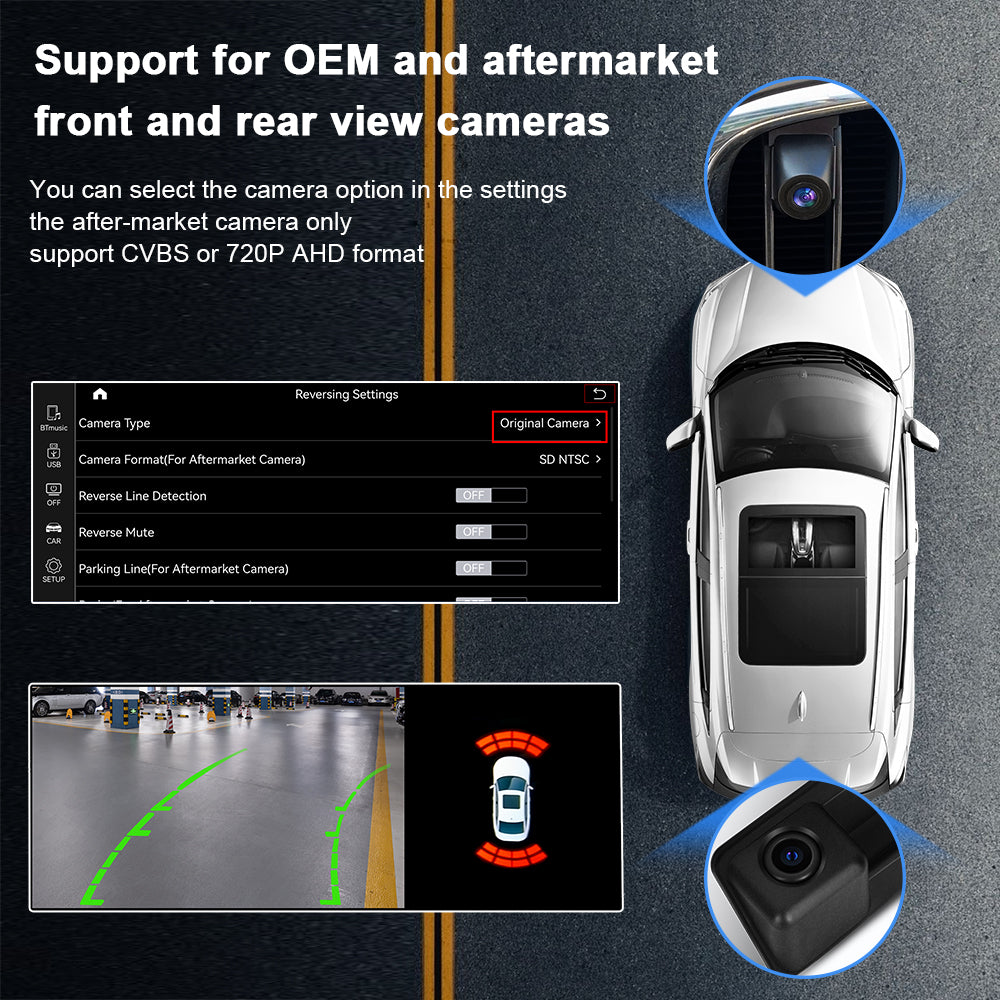

Support The Oem Or After-Market Camera
Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Set The Oem Resolution
Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly.

Setup>Car Settings> Original Car's Screen Resolution> Select the item

Installation Notes

Moving the stock 2 green fiber optic wires to the android harness.
Be sure to move the stock 2 green fiber optic wires to the Android harness. Otherwise the maintenance information will not show up and you will not get the Android sound.

Connect the audio cable between the Android screen audio output and the car's AUX IN
You need to connect the audio cable between the Android screen audio output and the car's AUX IN if necessary. Only then you can get the sound of Android.

Product Features:
1. Using Ultra-thin process, the screen-to-body ratio reaches 82.3%, 12.3" large Android display; metal material shell and Non-Airgap process, the picture quality image is more realistic.
2. Supports wireless and wired CarPlay and Android Auto, you can use the original car microphone to make calls when using CarPlay and Android Auto. No echo and high quality sound.
3. Support The OEM Camera and PEMP AHD Reversing Camera (Asin: B08YWL8CND) & front Camera (ASIN:B09TLCVYRB). The Reversing Picture Will Be Very Clear.

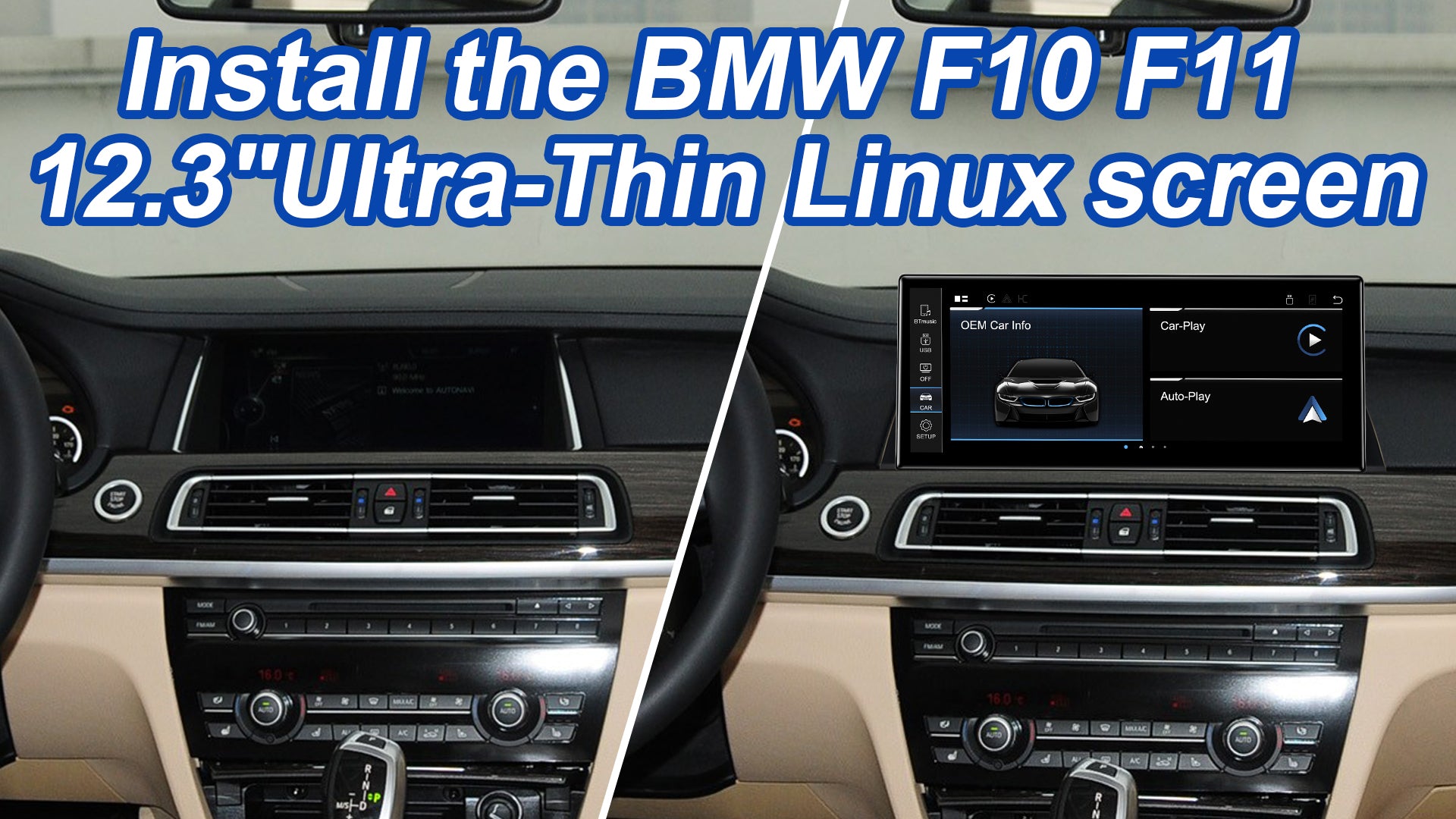

How to install BMW F10 F11 12.3" Ultra-Thin Screen

https://youtu.be/5vxkRvDwQIY
