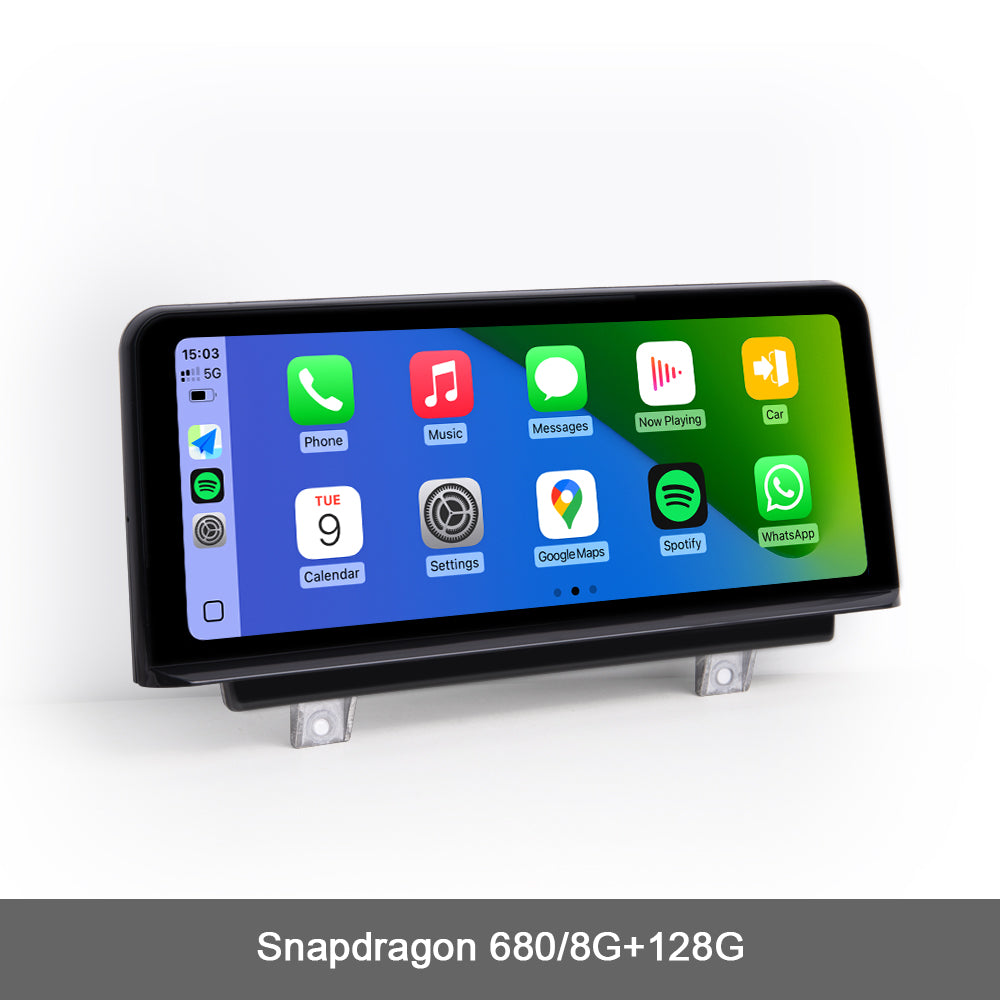

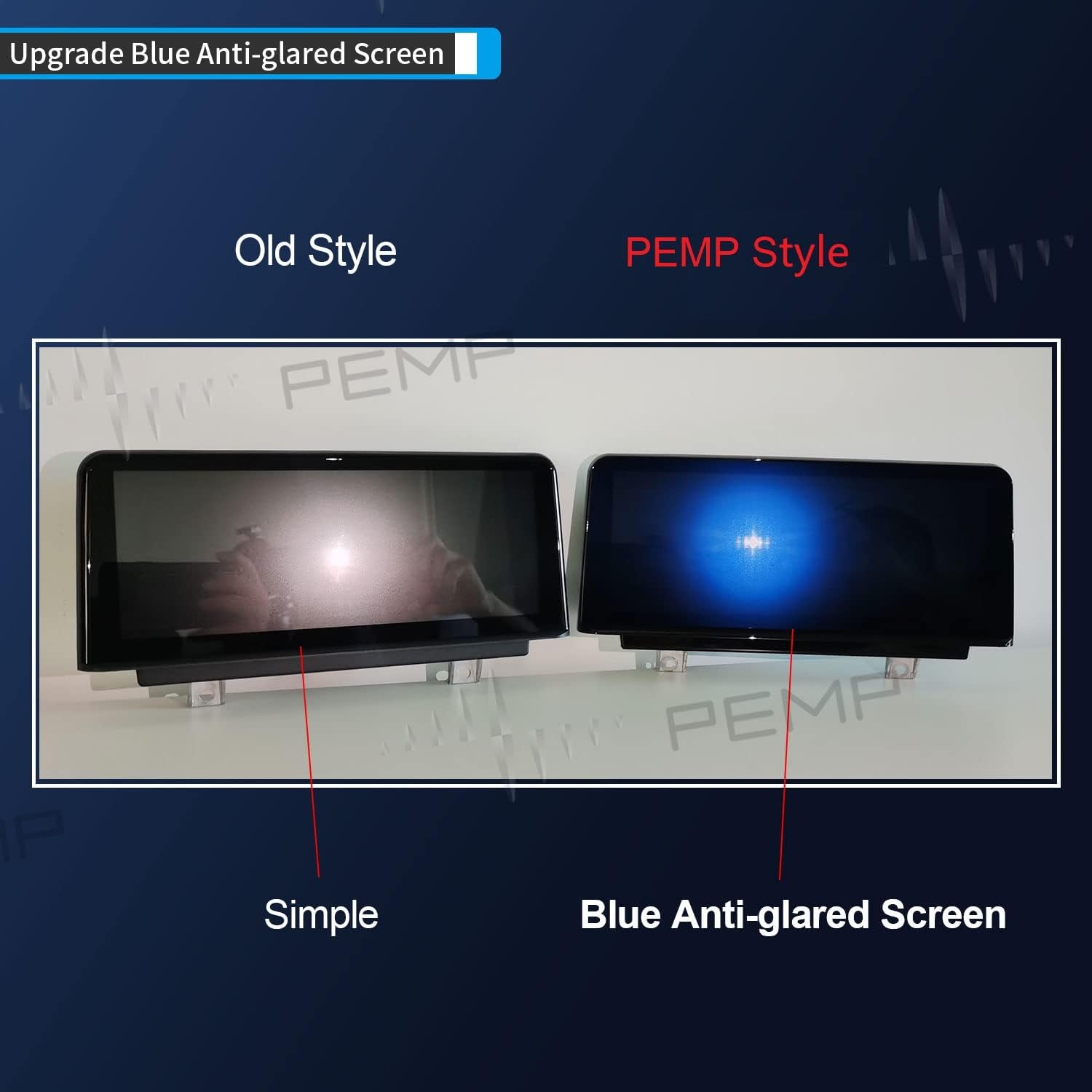

PEMP (5213) Android 14 10.25" IPS 1920X720 Screen for BMW F30 Anti-glared Screen, Snapdragon 680 8core Carplay Android Auto Use The OEM Microphone, for BMW 3 Series Monitor Accessories (2012-2017) NBT CIC

$549.00
$549.00
Shipping calculated at checkout.
  1. [Fast] Adopt Qualcomm Snapdragon 680, 8-core processor with up to 2.4GHz; 8GB RAM and 128GB ROM; SM6225 adopts 6NM technology), Android 13 system with low power consumption and no heating!

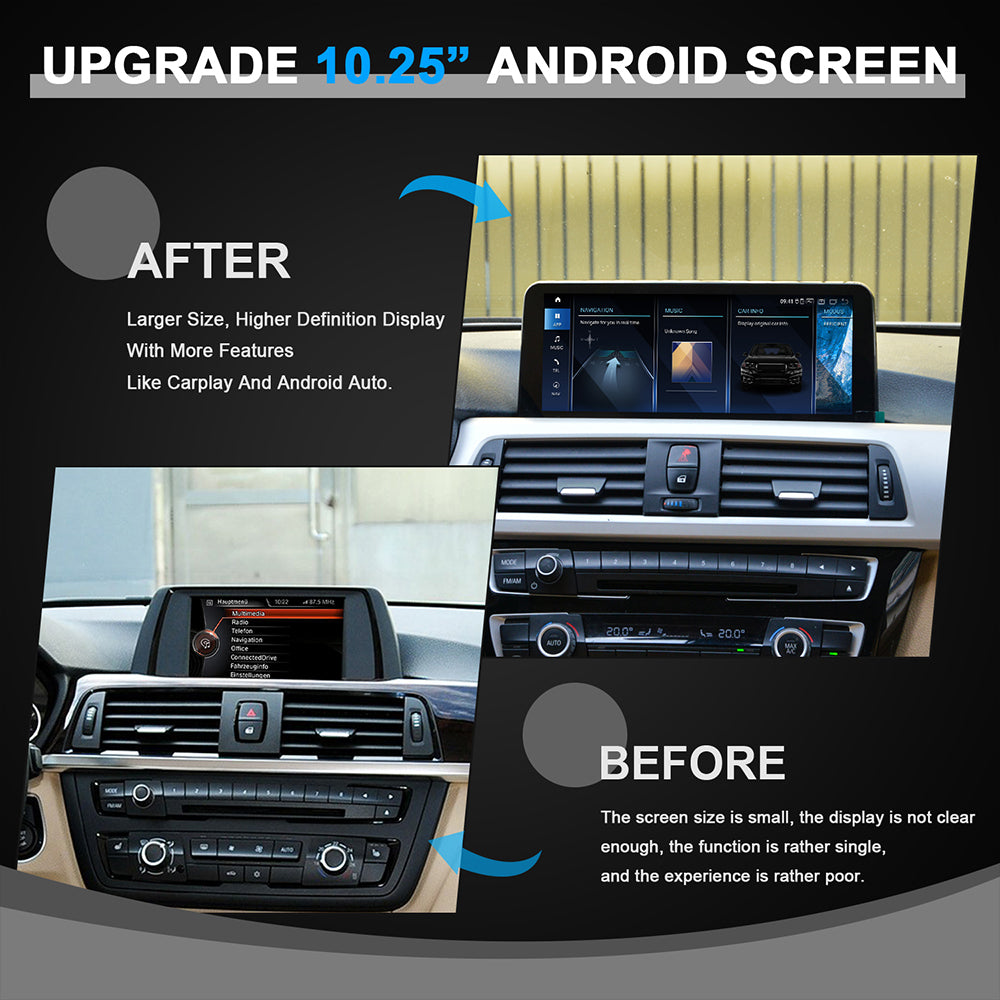

  2. [Clear] Multi-touch capacitive touch screen, 10.25 HD IPS display, resolution up to 1920*720; with PEMP AHD reversing camera, the reversing picture is very clear.
  3. [Support CarPlay and Android Auto] This product has built-in wireless car playback and wired Android Auto function, The sound has no delay and good sound quality.
  4. [4G NETWORK & DUAL BAND WIFI] External Nano SIM card with cell phone style card holder, easy to insert and dial, supports 4G network, 2.4G and 5.0g Wifi.
  5. [INSTALL SIMILAR APPLICATIONS] You can install Google Maps, YouTube apps, Spotify apps and other favorite software.
Configurations:
Camera:
$19.90
$69.00
$399.00 $369.00
$79.00
$89.00 $79.00
$29.00
Pay in installment: $661 /mth
Payment
MastercardVisaAmerican Express PayPalMaestroKlarnaJCBDiscover

  1. Processor:Qualcomm Snapdragon 680
  2. CPU:4xA73@2.4GHz 4xA53@1.9GHz
  3. GPU:Adreno 610 @ 1115MHz
  4. Process Node:6nm
  5. Display:IPS 10.25"1920x720RGB
  6. Touchscreen:Capacitive
  7. Storage:8GB RAM + 128GB ROM
  8. Android Version:14
  9. Operating Voltage and Temperature:DC 14V -20℃ to +70℃
  10. Video Support Format:1080P
  11. Reversing camera support format:1080P/720P/CVBS
  12. Front view support format:1080P 30FPS·

1-Year Warranty
In stock! Ships within 1-2 business days.
Respond to questions within 12 hours.
Return to your nearest address. (USA and Europe)
Use the OEM Bluetooth to Calling in CarPlay Android auto

If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.
NOTE: This connection can only be used to get music sound when your vehicle has Bluetooth audio capability.

Read More
TOP CARD SLOT DESIGN.

Supports 4G signal and 64G memory card
No need to disassemble the screen,can be very easy to replace theSlM card and memory card, the whole processwithout complicated operation.

Read More
Snapdragon 680 chip

Powered by Qualcomm Snapdragon 680 chip with 6nm process, 8-core processor. Android 14 Version. 8GB of RAM with 128GB of ROM, DDR4 Emmc UFS 2.2 can handle multitasking quickly without lagging.

Read More

Intelligent Interconnection

Support wired and wireless

Wireless and wired Carplay for bmw f30

Built-in wireless and wired Carplay, Wired CarPlay need connect the USB IN 1.

Wireless and wired android auto for bmw f30

Built-in Wireless and Wired android auto, Wired Android auto need connect the USB IN 1.

Wired and wireless Mirror link for bmw f30

Built-in Wired and wireless Mirror link, Wired Mirror link need connect the USB IN 1.

Product Features

Piano Finish And Fully Laminated Screen

Piano Lacquer Process

Dozens of processes quench the mirror shine to meet the standard of musical instrument grade finish.

Utilizes Non-Air-Gap Lamination Technology

With the lamination process, the distance between the display and the touchpad is 0. The background is darker when the screen is off and the colors are more realistic when the screen is on!

Product Video

How to install F30 Android Screen

Product Installation and Setup

Approaches to common problems

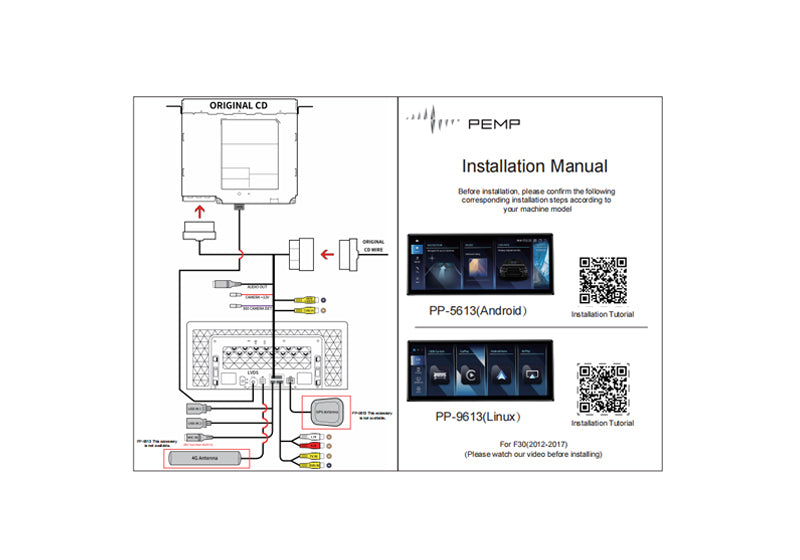

Installation text Product Manual

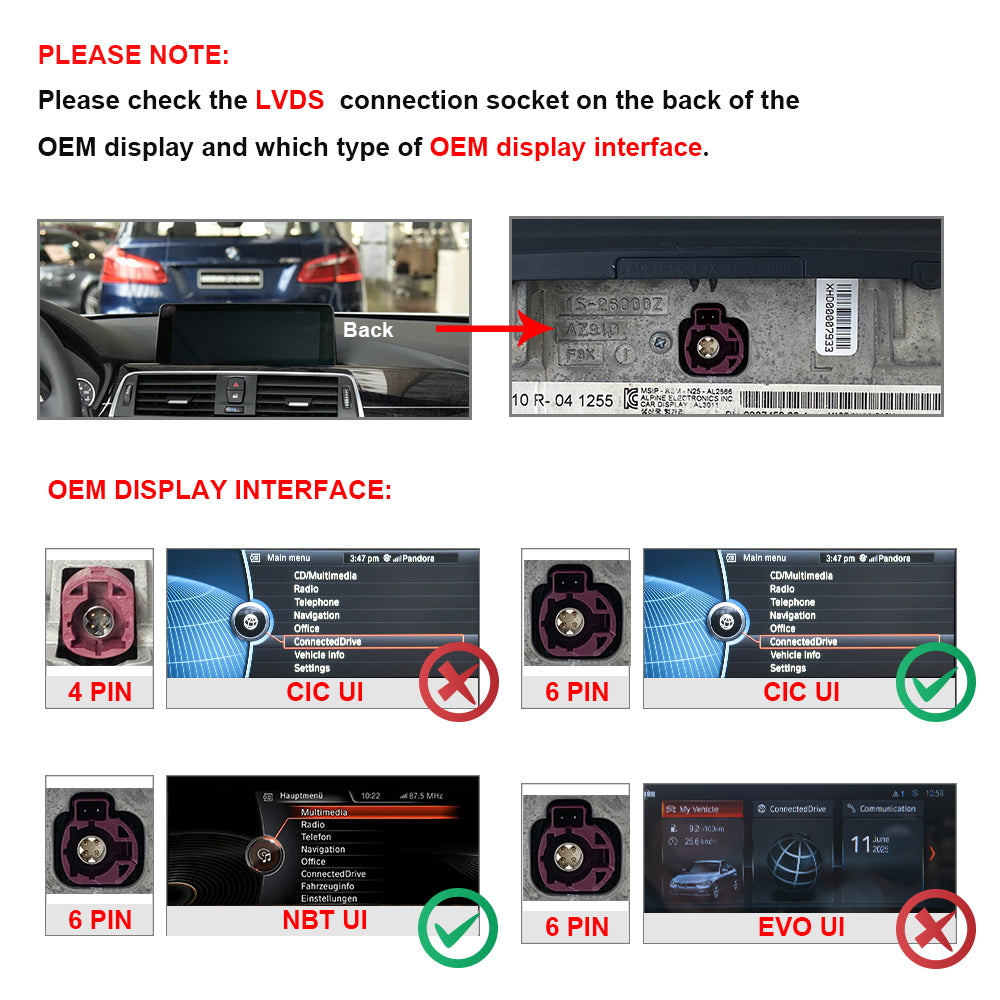

Please focus on checking your OEM screen map version and system

1. Please confirm your OEM system according to the OEM screen UI. 2. Please disassemble the back of the OEM screen to confirm the shape of the LVDS cables. 3. If your OEM screen system is 6PIN LVDS for NBT and CIC system, this screen is suitable for your car. 4. If it is 6PIN EVO system, then this screen is not suitable for your car.

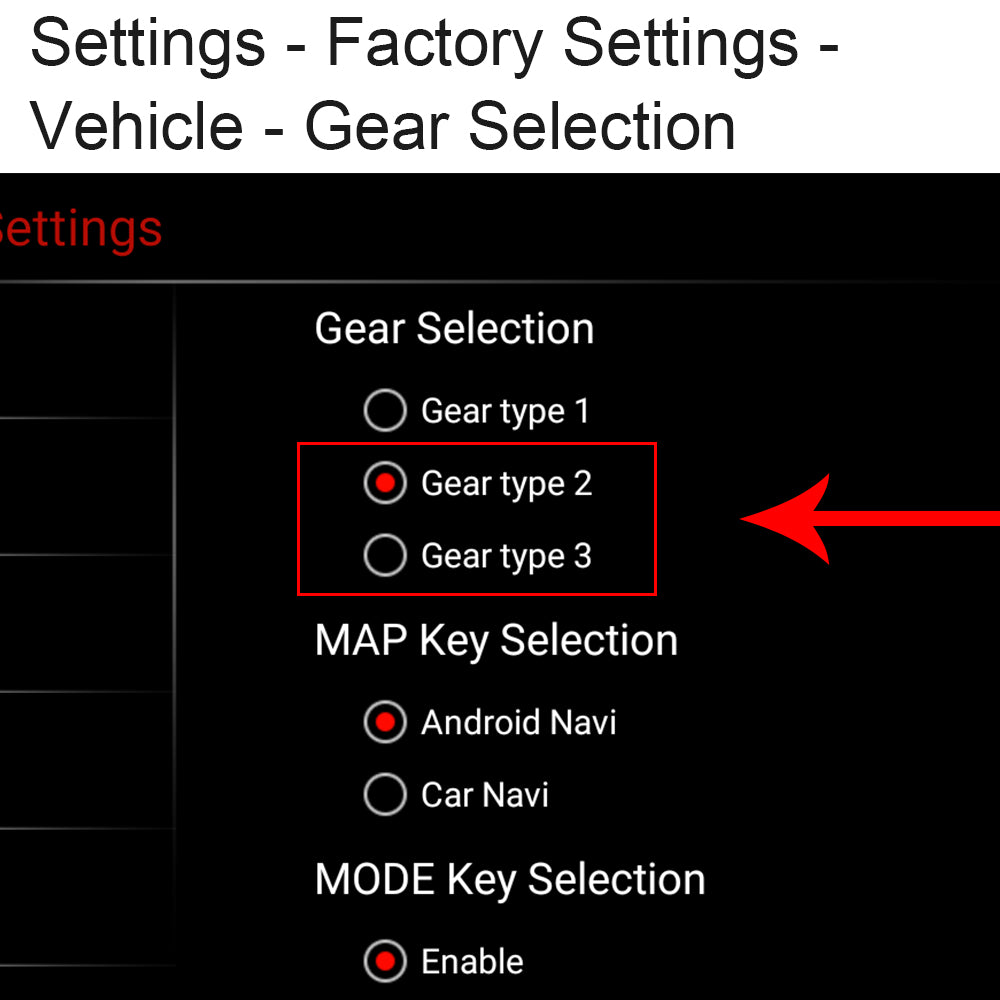

Manual Transmission Back Camera Settings

Settings> factory>pass word070305> vehicle> Gear Selection, pls select type2 or 3 Then reverse the vehicle, and the reversing screen will be displayed normally.

Move the Original Host Fiber Optic Cable to The Android Harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Android harness. Otherwise you can't get the car information and the Android sound. And it will be accompanied by a heartbeat wheezing sound.

Please connect the audio harness to the armrest box AUX IN connector

If you have properly adapted the fiber optic harness and selected the AUX menu in the OEM interface, you still can't get CarPlay or Android auto sound. Be sure to connect the audio cable between the armrest box AUX IN and AUDIO OUT.

You May Also Like

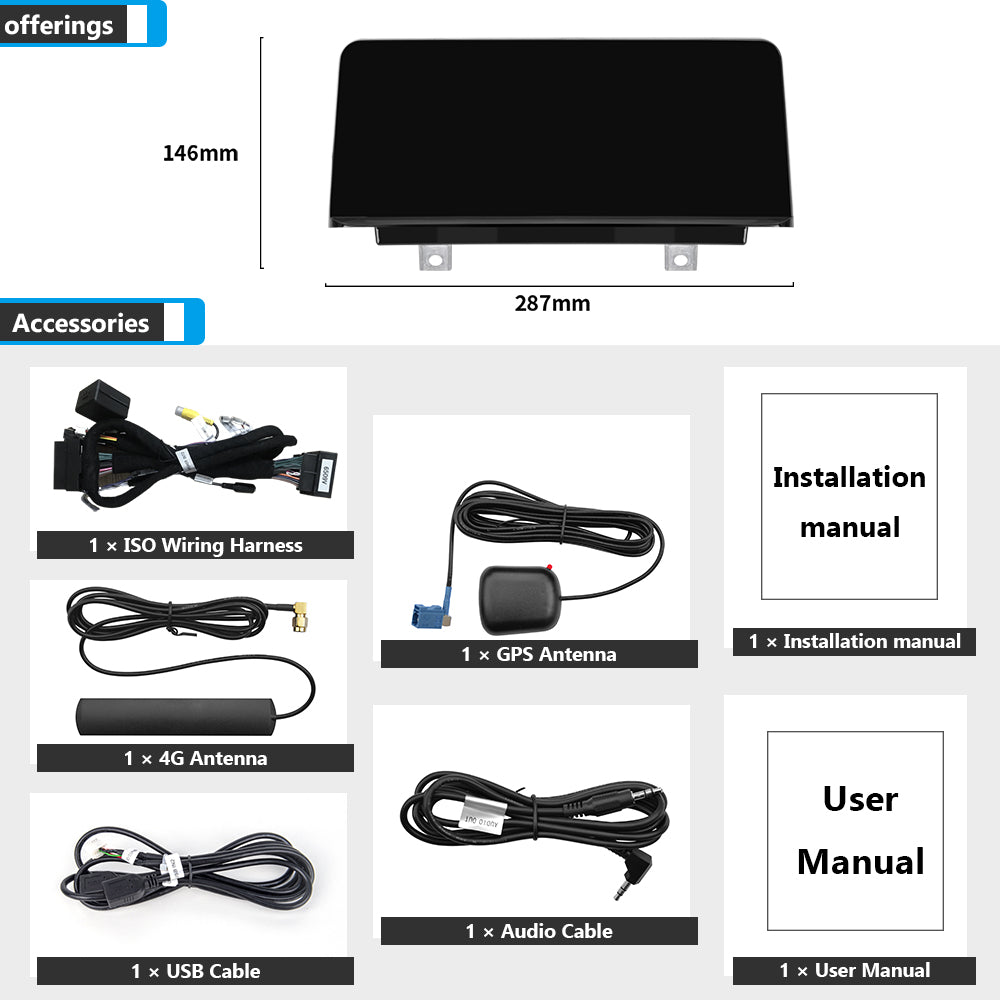

IN THE BOX

1× Android Screen

1 x ISO Wiring Harness

1 x USB Cable

1 × Audio Cable

1 × 4G Antenna

1 × GPS Antenna

1 x Installation Manual

1 × User Manual

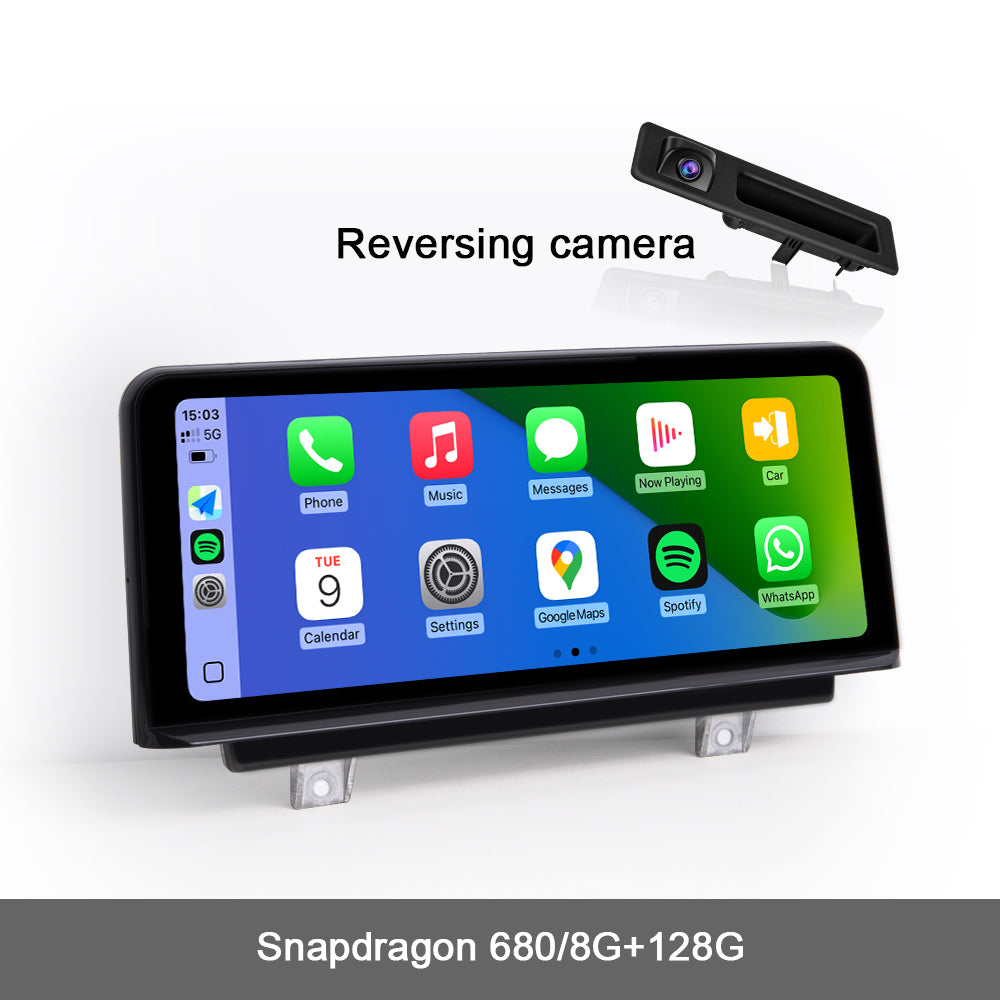

Reversing Camera (Only for With Camera option)

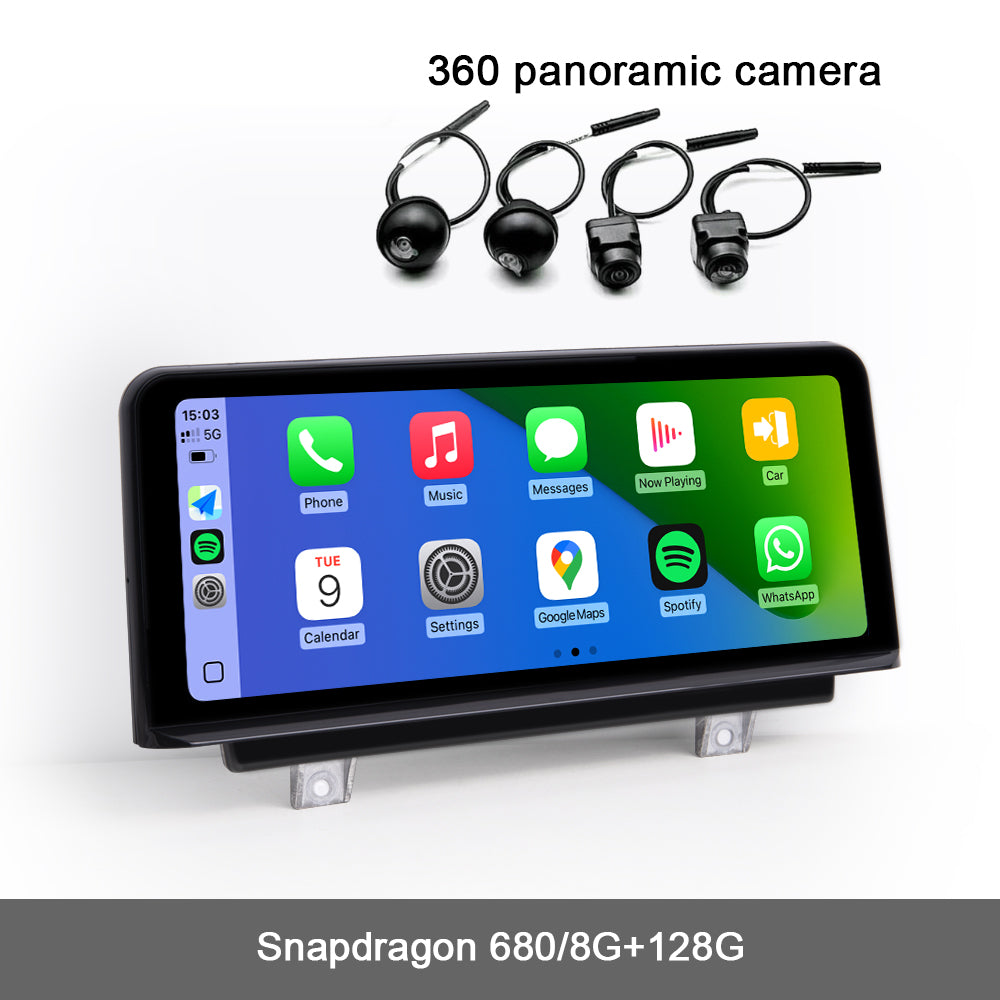

360 Panoramic camera (Only for With Camera option)

Frequently Asked Questions

Pre-Sales FAQ

Answer your pre-sales questions

  1. PEMP screen products are abundant, if you want to buy the right PEMP screen for your car, you need to know which kind of OEM system your car has first.

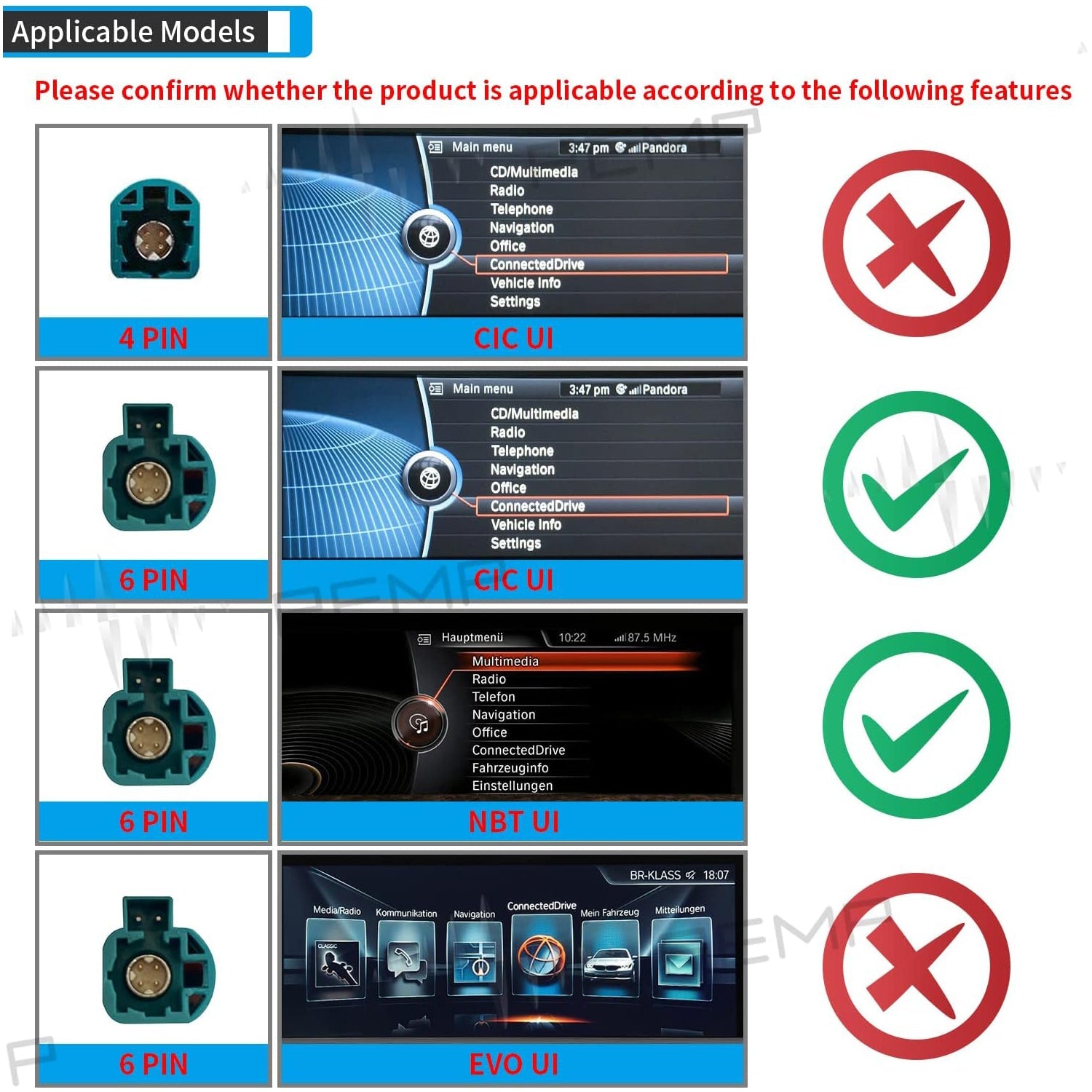

  2. Below we'll cover the differences and appearance of the 4 common BMW screen systems:
  3. 1. The CCC system is used in older models, with a simple display interface and four functions, communication, Climate, navigation and Entertainment, that can be distinguished at a glance.
  4. 配置图片
  5. The CCC LVDS cable is a 10 PIN LVDS cable:
  6. 配置图片
  7. 配置图片
  8. 2. The CIC system, with significantly more features than the CCC, is arranged in a vertical list. Maps, phone, radio, navigation, CD, etc. are available, and you can set options and view vehicle information at the same time.
  9. 配置图片
  10. The LVDS cable used in the CIC system is a 4 PIN LVDS cable:
  11. 配置图片
  12. The NBT system is still arranged in a vertical list and begins to have a connected driving function as well as a mobile office, and the system is more technological compared to the CIC detailing with highlights and shadows.
  13. 配置图片
  14. NBT uses a 6 PIN LVDS cable
  15. 配置图片
  16. 2. The EVO is arranged horizontally for a richer functionality and an easily recognizable system UI.
  17. 配置图片
  18. 配置图片
  19. EVO system still utilizes the 6 PIN LVDS connector.
  20. 配置图片
  1. We can confirm with you that you don't have to worry about your CIC system and LVDS cables not fitting our screens, whether your 2012-2014 F30 has a CIC or NBT system, PEMP screens are compatible with your car.
  2. The following are specific reasons:
  3. The 2012-2014 F30 CIC system is unique in that it is in the transition year from the CIC system to the NBT system, and it has a different OEM radio mainframe and LVDS cables than the regular CIC system.
  4. System Interface:
  5. Usually, the CIC system interface corresponds to the OEM radio is also CIC, but the 2012-2014 F30 system interface is CIC interface, but the OEM radio mainframe is NBT mainframe.
  6. 配置图片
  7. LVDS cable:
  8. Typically, CIC systems are 4 PIN LVDS cables, but the 2012-2014 F30 CIC systems use the same 6 PIN LVDS cable as the NBT.
  9. 配置图片
After-Sales FAQ

Answer your pre-sales questions

  1. If you experience abnormal sound problems, you can check the screen and cables one by one by following the steps in this document.
  2. You can also copy the video link to your browser off to see the detailed video tutorial:
  3. https://youtu.be/QKJVoJlUpiU
  4. Or scan the QR code of the video to watch it:
  5. 配置图片
  6. Step 1: Click CAR INFO on PEMP home page to enter the OEM system, check whether the OEM system can be displayed normally.
  7. 配置图片
  8. Step 2:If the OEM system displays abnormally, refer to the documentation on how to handle abnormal OEM system displays or contact Customer Service.
  9. 配置图片
  10. Step 3: If the OEM system displays properly,press the FM/AM button and check that the radio is producing sound.
  11. 配置图片
  12. Situation A: If there is no sound from the radio after pressing the FM/AM button .
  13. Please refer directly to the method of B-7 and B-8 in case B to check your cables.
  14. Situation B: If the radio sounds when the FM/AM button is pressed .
  15. 配置图片
  16. B-1: If there is sound coming from the radio, click Multimedia-External Devices, then select Multimedia Mode as AUX Front.
  17. 配置图片
  18. B-2: If you are connected to OEM Bluetooth, disconnect OEM Bluetooth and delete the connection history.
  19. 配置图片
  20. B-3: Set AUX auto switching to off.
  21. If you have a Qualcomm 680/685 screen, the setup path is Settings - System - AUX Settings.
  22. 配置图片
  23. If you have a Qualcomm 662/8953 screen, the setup path is Settings - Factory - 070305 - Vehicle - AUX Switching Modes.
  24. 配置图片
  25. B-4: The default sound of AUX mode is rather low, please try to adjust the sound greatly by using the sound adjustment knob.
  26. 配置图片
  27. B-5: Connect one end of the supplied AUX cable to the AUDIO OUT port on the IOS harness; The other end connects to the car's AUX IN (usually located at the armrest box).
  28. 配置图片
  29. B-6: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness.
  30. 配置图片
  31. 配置图片
  32. B-7: Check the ISO harness plugs and re-unplug and re-insert the plugs .
  33. 配置图片
  34. B-8: Check the power cable and LVDS cable on the back of the screen and unplug and re-plug them.
  35. 配置图片
  1. If you are experiencing problems with your OEM system displaying anomalies, you can check your screen and cables one by one by following the steps shown in this document.
  2. 配置图片
  3. You can also copy the video link to your browser off to see the detailed video tutorial:
  4. https://youtu.be/dxED9pfNt08
  5. Or scan the QR code of the video to watch it:
  6. 配置图片
  7. Step 1: Press the FM/AM button and check the radio for sound .
  8. A: If you can hear the FM sound, please go to the PEMP system homepage, click “Settings” - “Factory Settings” - "070305" - "Vehicle display" and "CAN Protocol" , and select the vehicle protocol and resolution Select the option that corresponds to the OEM system.
  9. 配置图片
  10. 配置图片
  11. B-1: If the OEM screen still doesn't display properly or you can't hear the FM sound, you need to check if there is a fiber optic cable on the plug of the OEM ISO harness, and if there is, you need to transfer it to the PEMP ISO harness.
  12. 配置图片
  13. B-2: Because the plug is designed to be tight in order to prevent the plug from loosening, it is easy for the ISO plug to not be inserted to the end and have poor contact.
  14. Therefore, we need to unplug the ISO plug, and then re-insert it, you can use a little force when inserting, please make sure that the plug is completely inserted to the end.
  15. 配置图片
  16. 配置图片
  17. B-3：Then check the LVDS cable behind the screen and the white power plug.
  18. As some cars have less space to install the screen, it is easy for the cable to be squeezed, which can lead to loose plugs and poor contact.
  19. So we need to unplug and re-plug the cable and make sure it is fully inserted and that it is not pinched when installing the screen.
  20. 配置图片
