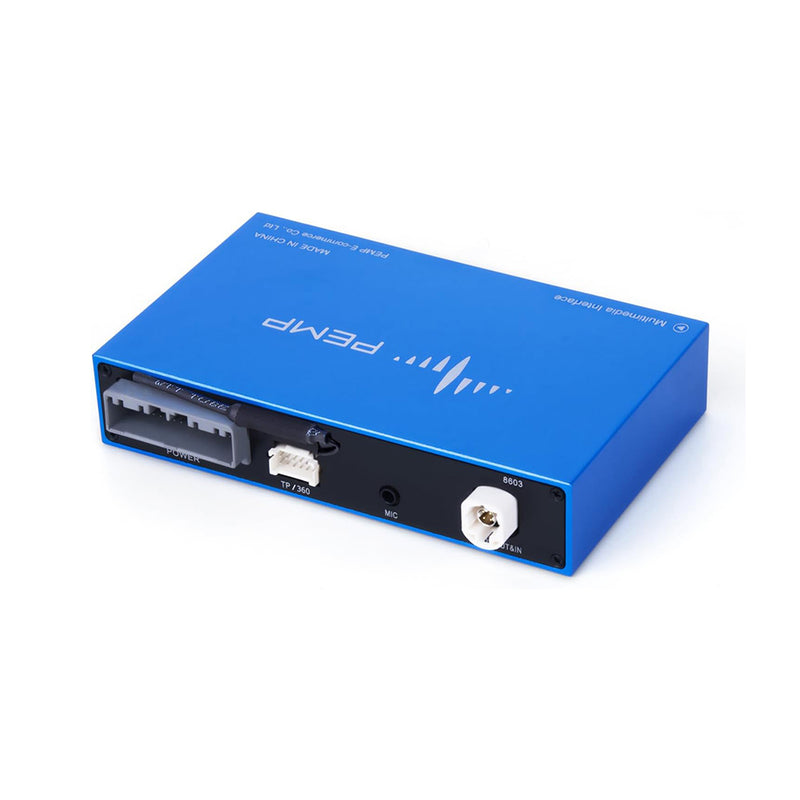

PEMP (NTG5.0) for Mercedes W205 X253 W447 X156 C117 W463 W176 W212 NTG 5.0 Accessories CarPlay Android auto MMI Box use The OEM Microphone.

Preço normal: $259.00
Preço de saldo: $259.00
Preço normal

Shipping calculated at checkout.

Pay in installment: $661 /mth

Learn more

Payment

1-Year Warranty

In stock! Ships within 1-2 business days.

Respond to questions within 12 hours.

Return to your nearest address. (USA and Europe)

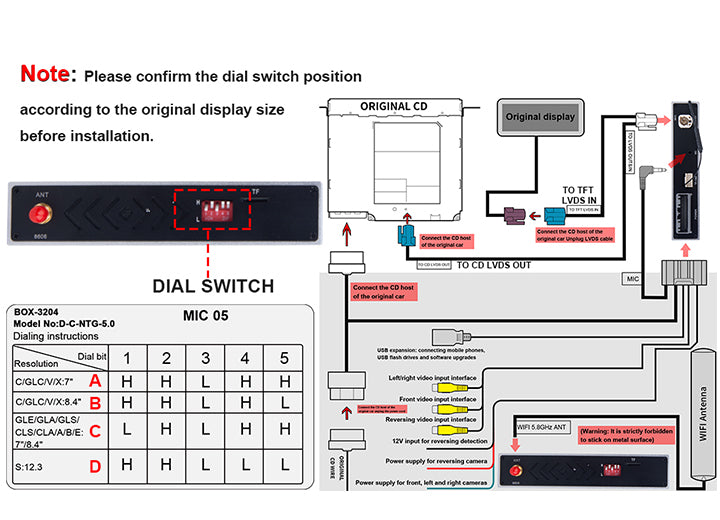

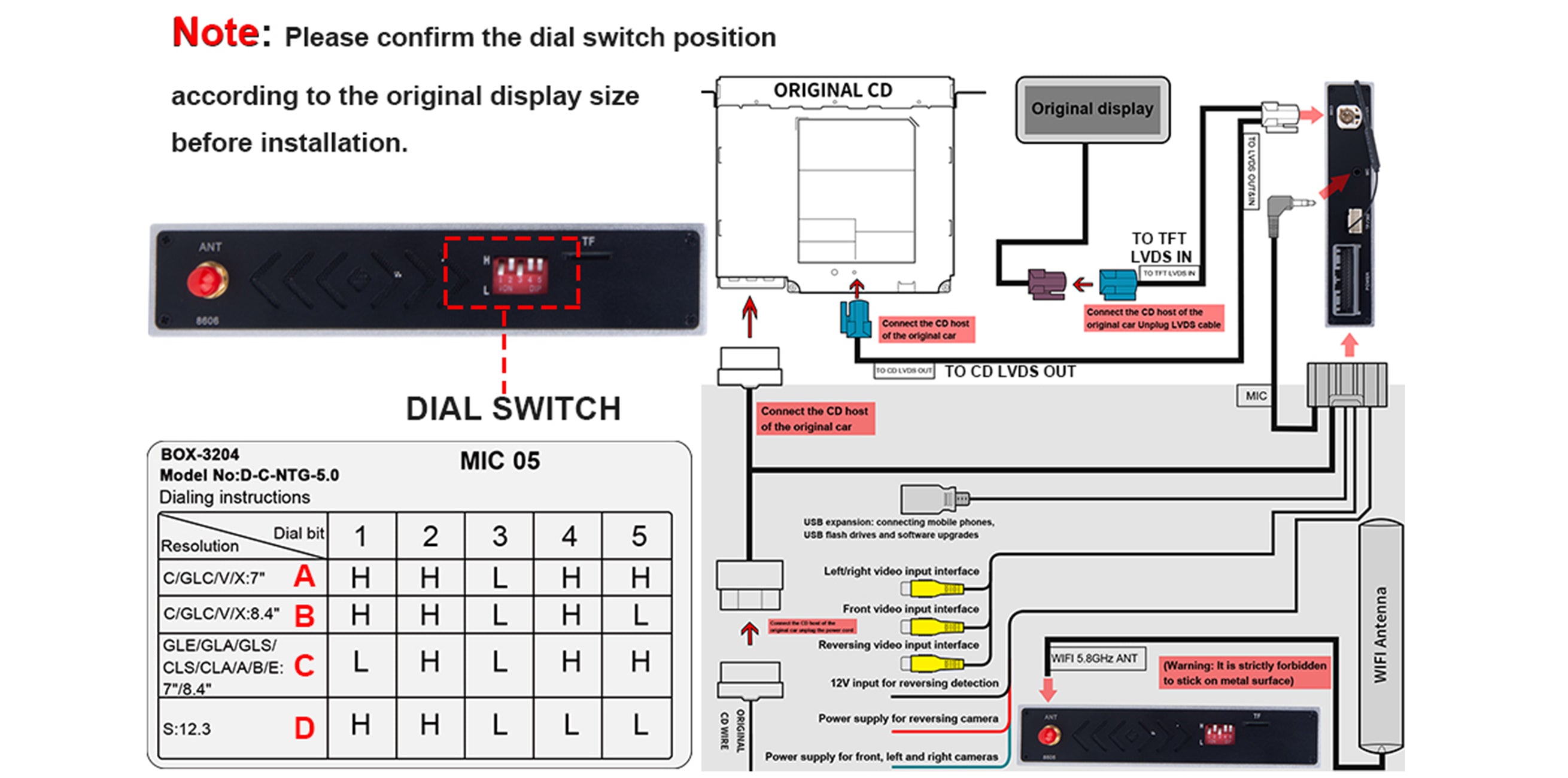

NTG 5.0 MMI Box Dial Switch And How To Connect The OEM LVDS

How to set the DIAL SWITCH?

1. If your car is a C/GLC/X Class 7"Screen, please set as A;

2. If your car is a C/GLC/V/X Class 8.4" Screen, please set as B;

3. If your car is a CLE/GLA/GLS/CLS/CLA/A/B Class 7" Screen, please set as C;

4. If your car is a CLE/GLA/GLS/CLS/CLA/A/B Class 8.4" AND E Class 7" Screen, please set as D;

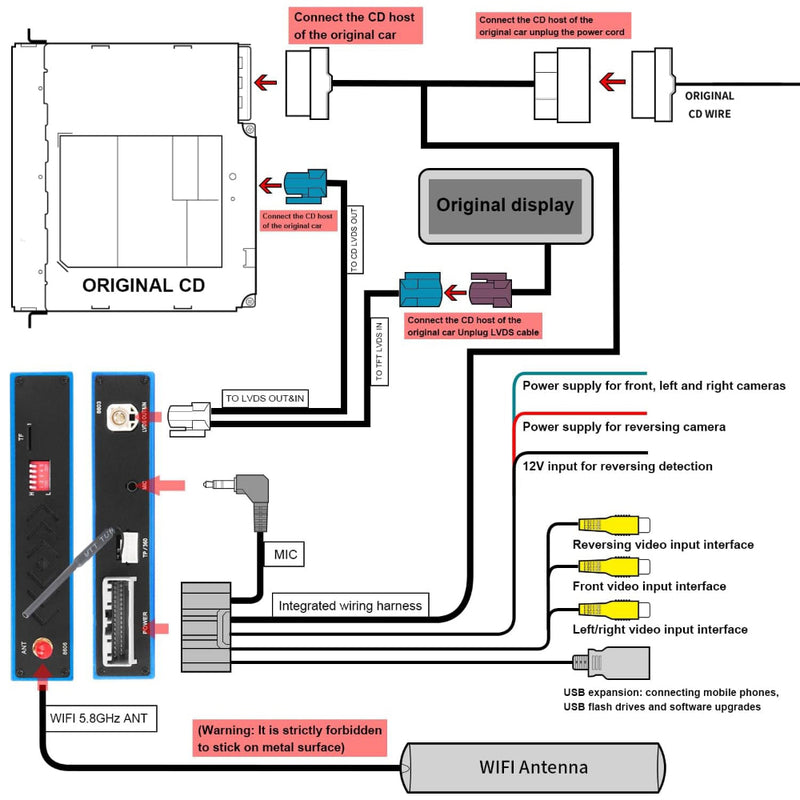

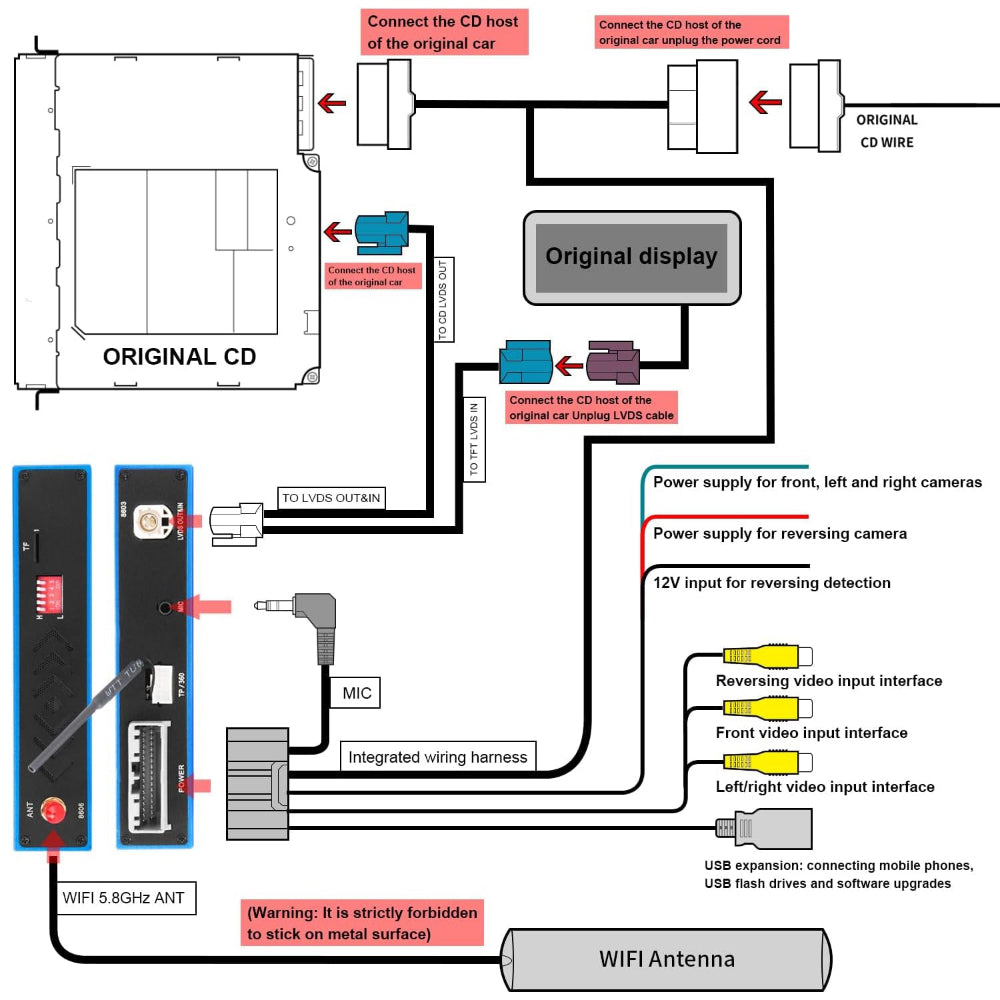

How to Connect the OEM LVDS Cable?

Step 1. Please unplug the original LVDS harness behind the OEM radio; and connect it to the TO TFT LVDS IN labeled TO TFT LVDS IN;

Step 2. Please plug the TO CD LVDS OUT into the OEM LVDS socket position.

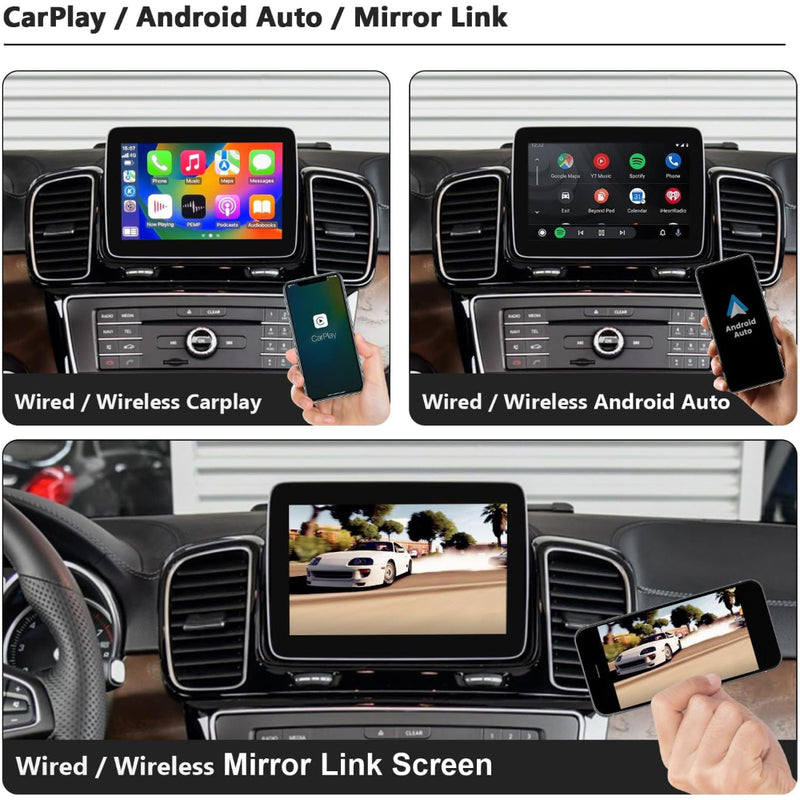

Intelligent Interconnection

Support wired and wireless

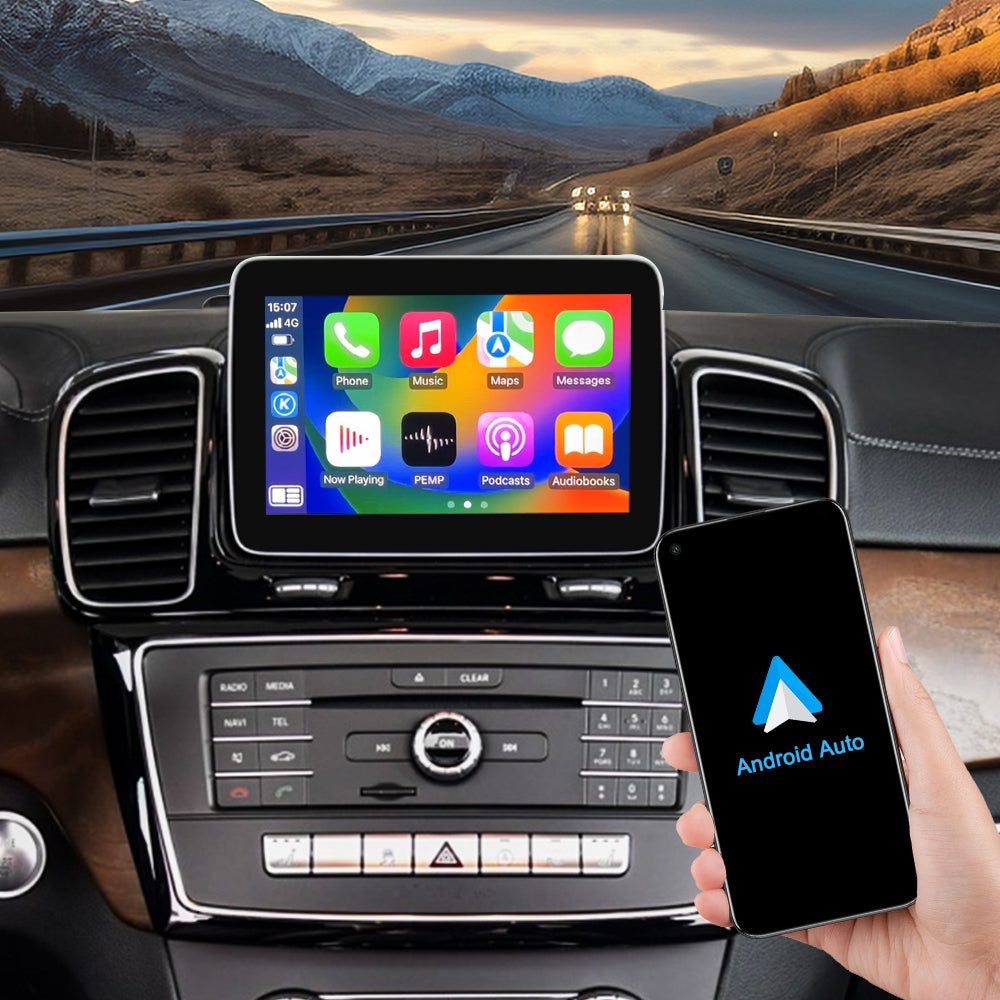

Built-in Wired And Wireless Carplay

Built-in Apple Carplay function, you can use the touch screen and OEM Knob control the menu of the carplay interface.

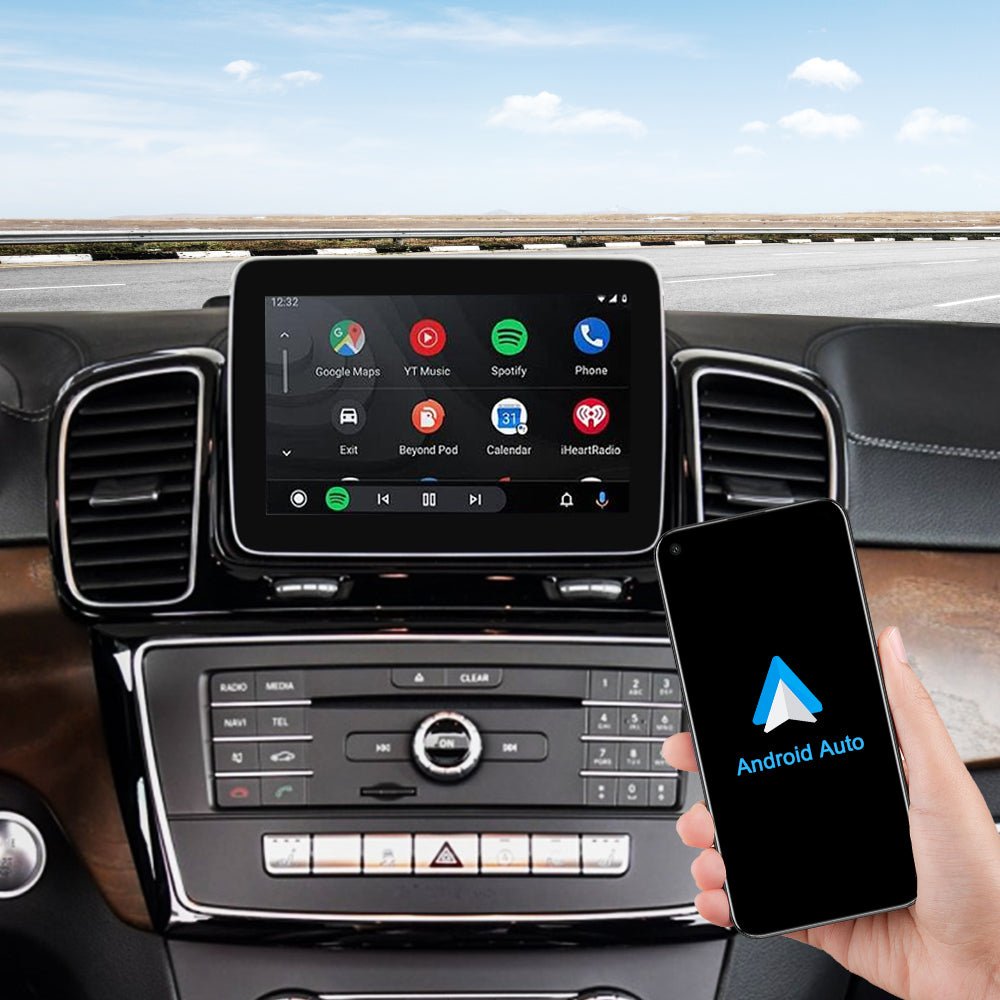

Built-in Wired Android Auto

Built-in Wered Android auto function, you can call on the android auto interface.

Built-in Morror Link Function

if you use the android phone, you should connect us get the morror link APP.

Product Video

MMI Box for Mercedes NTG 5.0 Installation Video

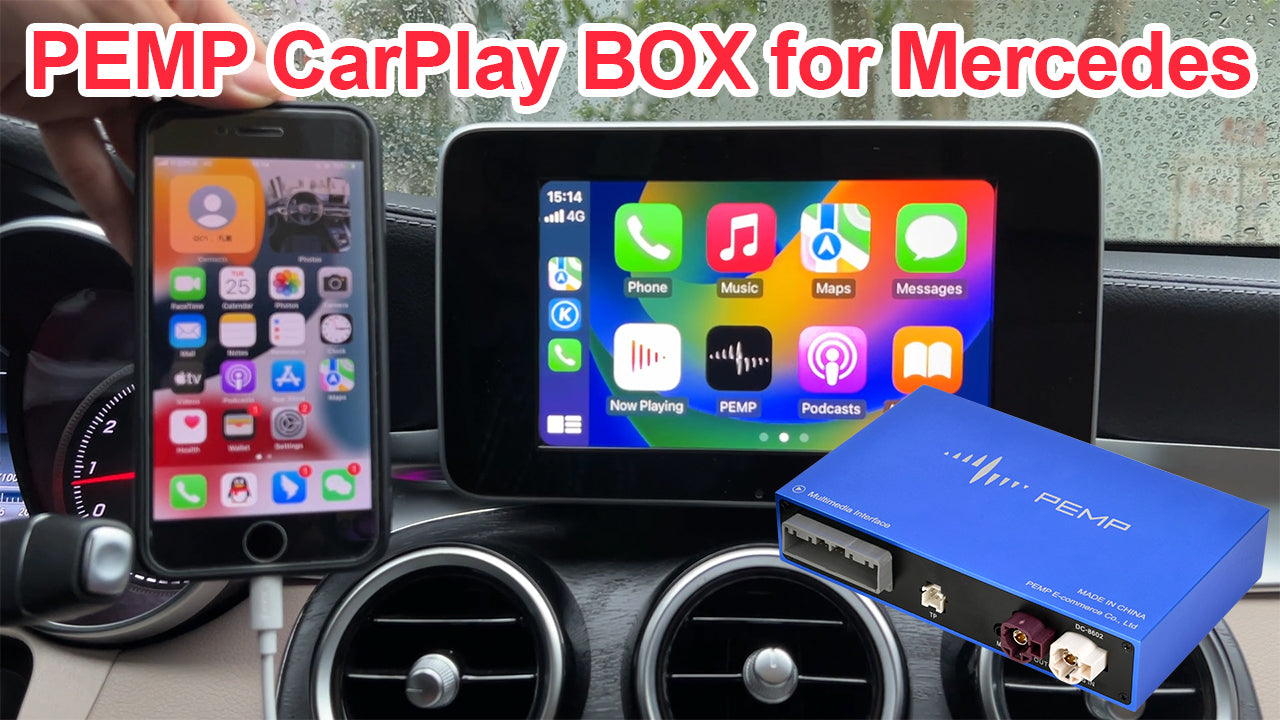

How to use the PEMP mercedes ntg 5.0 Apple carplay and android auto MMI

Product Installation and Setup

Approaches to common problems

Installation text

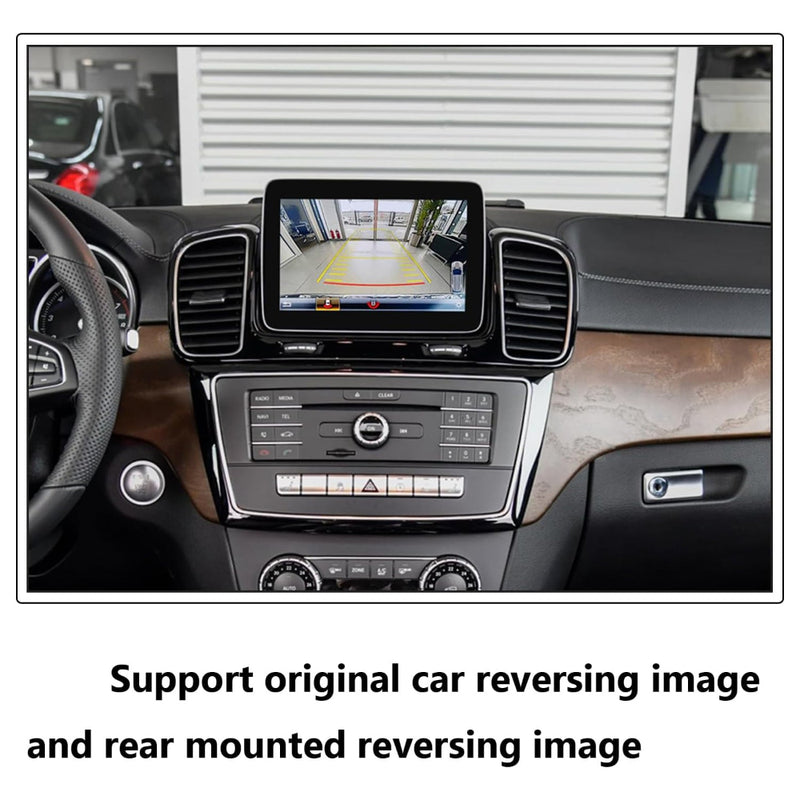

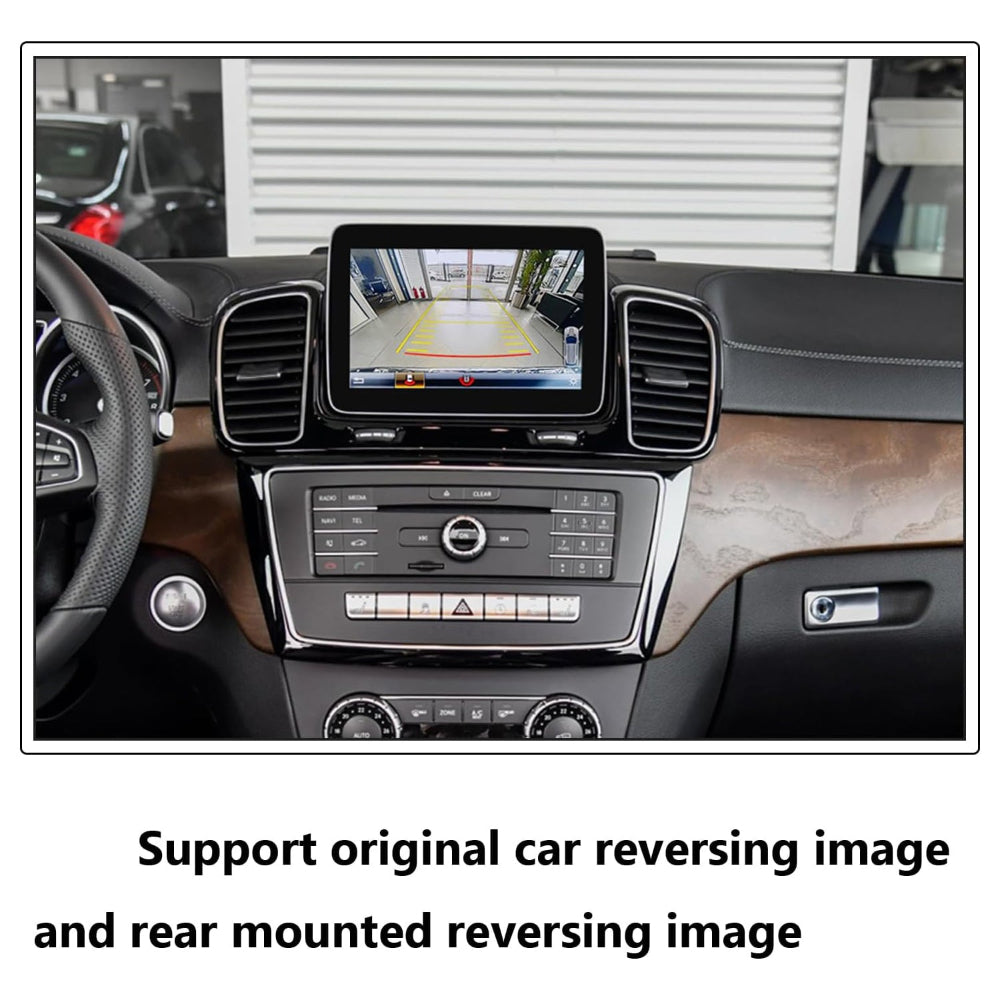

Set The Camera And Connection

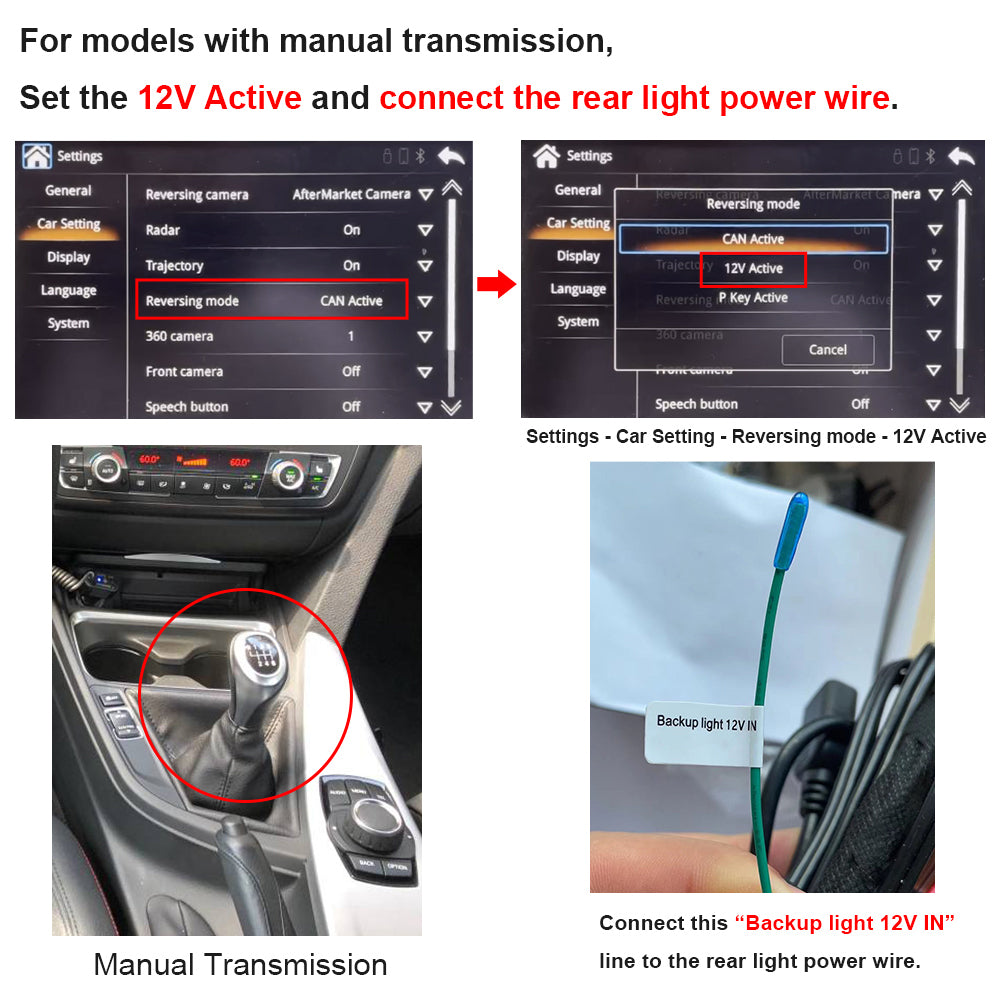

1. if the car has OEM camera, you need select the Factory Camera in the settings; 2. if you install a after-market camera, you need select the Aftermarket Camera option in the settings; 3. if the car is a Manual Transmission, you need select the 12V Active option in the Car settings. At the same time, you need to use the power cord of the backup light to connect with the Backup light 12v in.

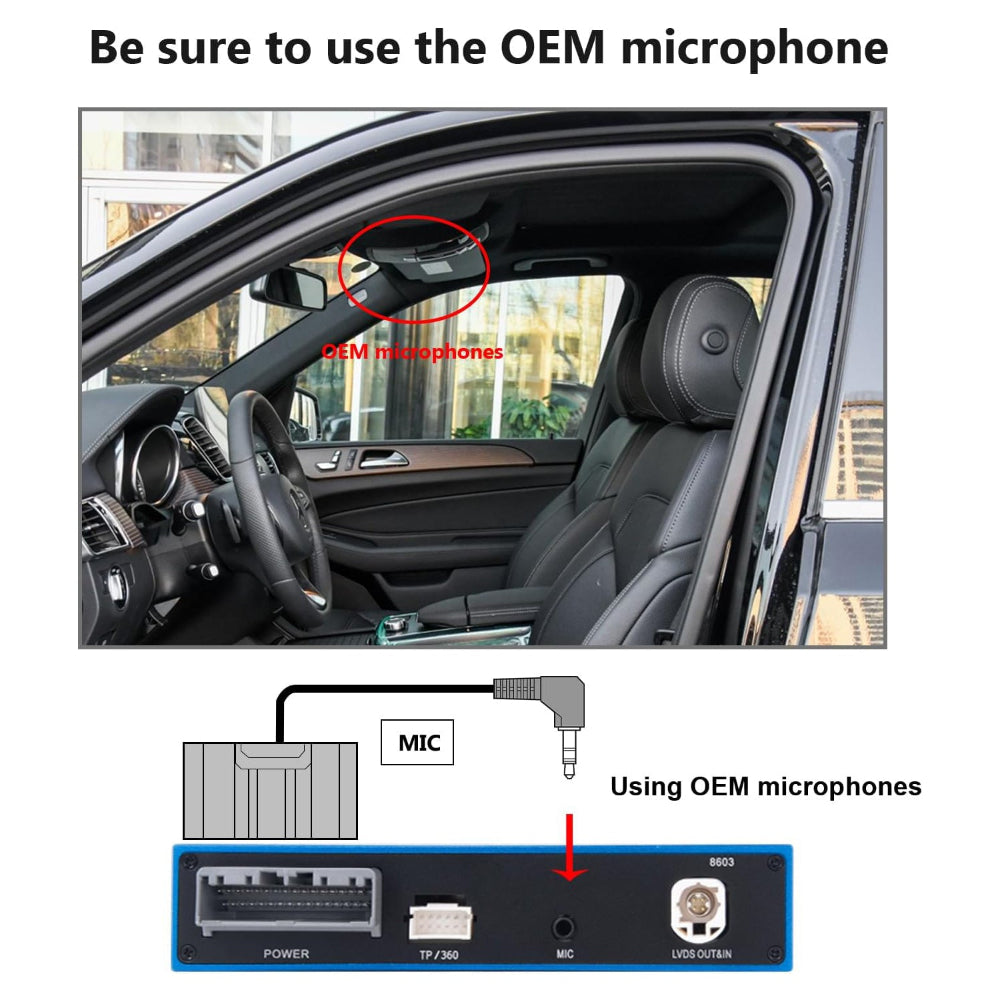

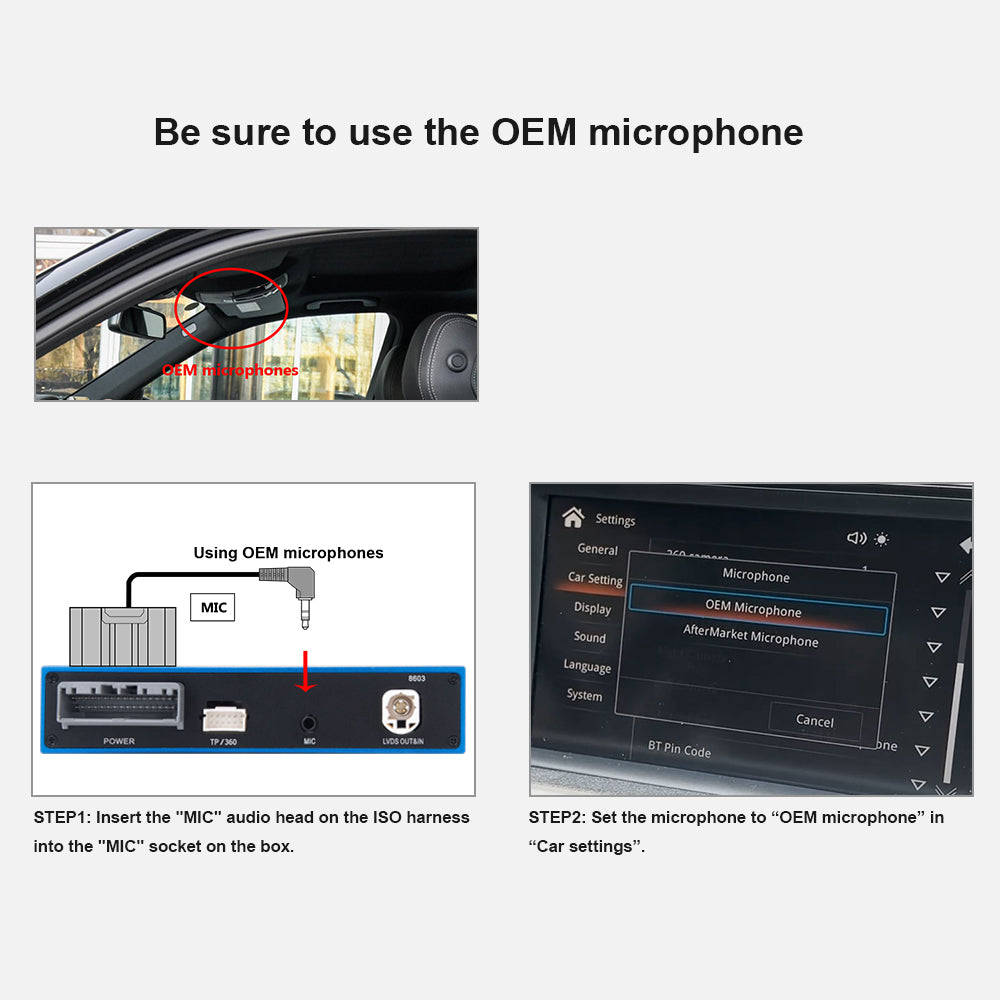

How To Connect The Microphone And Settings

USE THE OEM MIC 1. If your car has the OEM microphone, you need insert the mic cable of the iso harness to the MIC Socket on the box; 2. Set the microphone to OEM microphone.

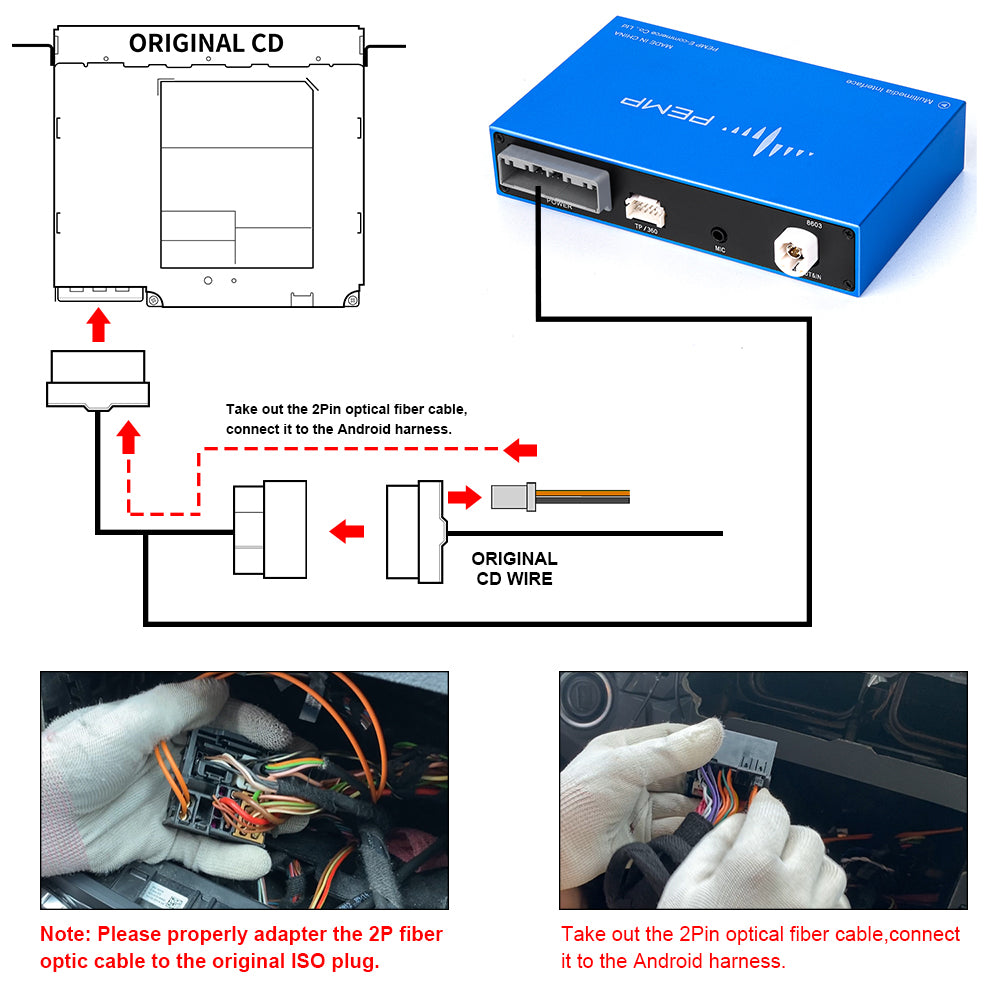

Please Move The OEM Fiber Optic Harness To The PEMP ISO Harness

If you have fiber optics on your radio's ISO harness, be sure to move it to the corresponding location on the PEMP ISO harness. Allow it to communicate with your radio, otherwise you will not get sound.

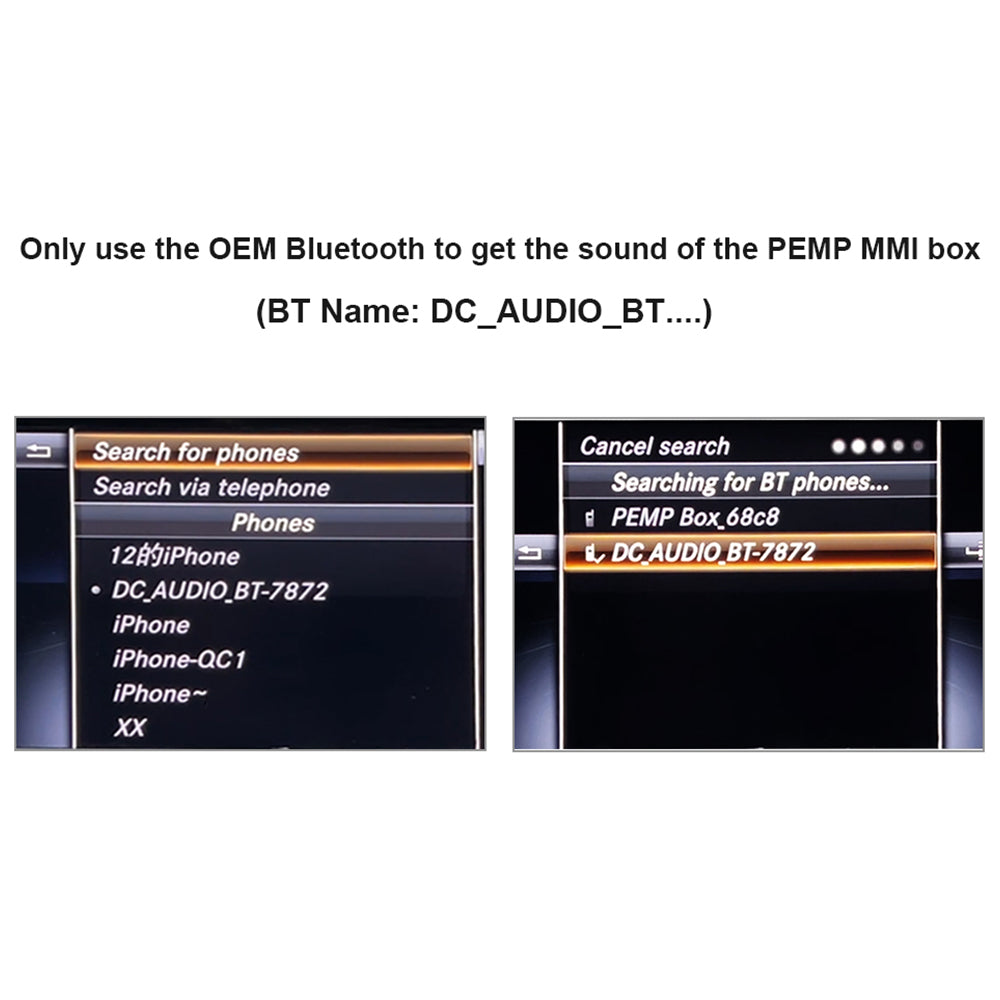

NEED USE THE OEM BLUETOOTH GET THE SOUND OF THE CARPLAY OR ANDROID AUTO

IN THE BOX

Frequently Asked Questions
