PEMP (9343) 12.3" Vertical Screen for BMW X3 F25 CIC Wired and Wireless Apple CarPlay Retrofit Android Auto，1920 x 720 Display Mirror Link Car Radio Bluetooth Video Player (2009-2012)

Preço normal: $329.00
Preço de saldo: $329.00
Preço normal

Shipping calculated at checkout.

[VERTICAL SCREEN] Vertical screen style, Parallel with eye line of sight, that is safe and comfortable; easier to touch. Only suitable for BMW CIC original 4PIN LVDS system.

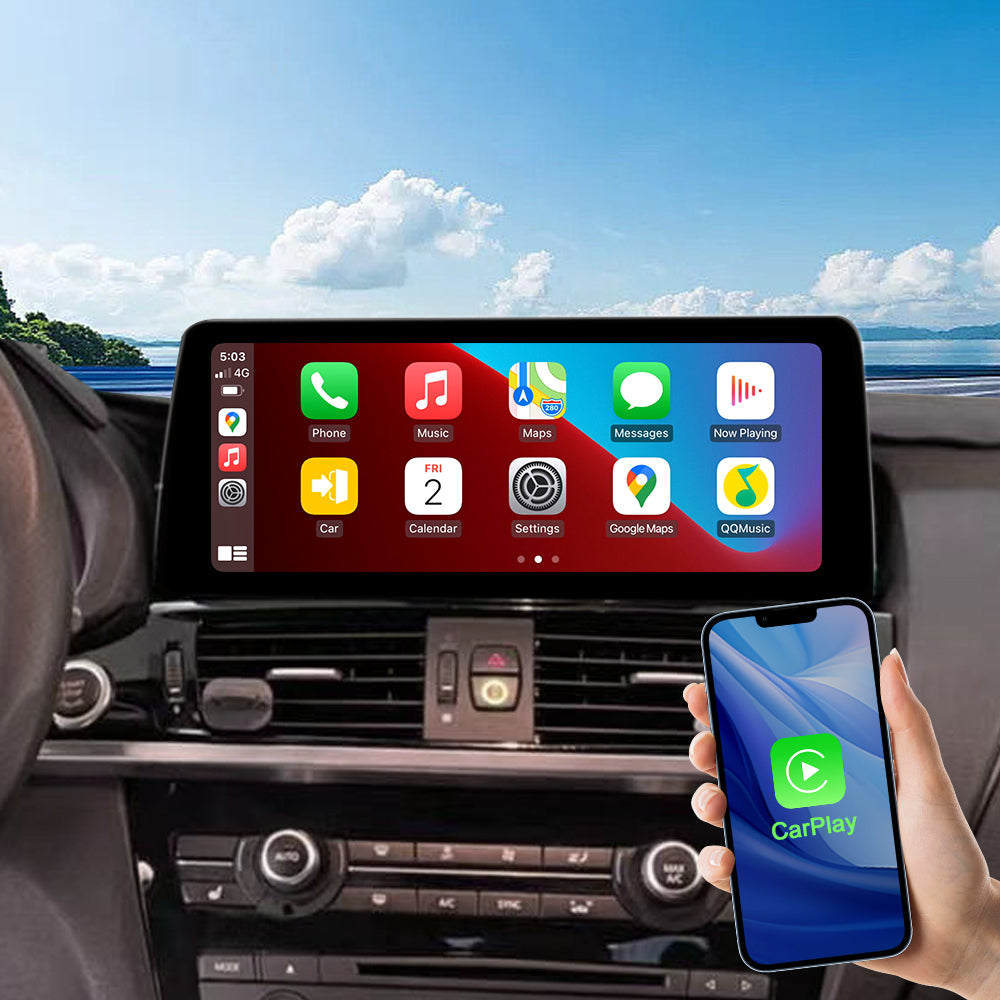

[CARPLAY & ANDROID AUTO] Support Wired and Wireless CarPlay and Android Auto , You Can Answer CarPlay or Android Auto Phone Call by Steering Wheel Button.
[HD SCREEN] 12.3 HD IPS Display Screen, Resolution Up To 1920 * 1080; with Capacitive Touch Function; Support Car's Knob to Control CarPlay or Android Auto Interface; Support Playing Music and Video Via USB.

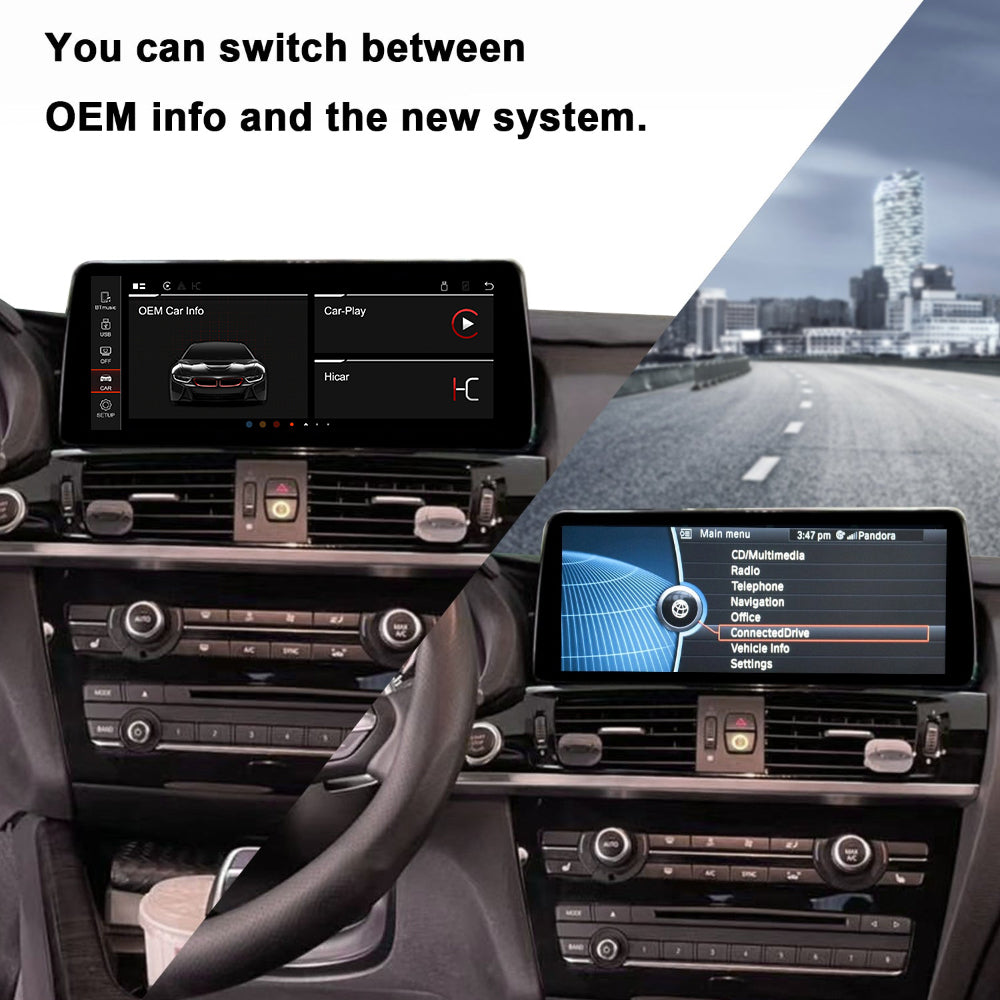

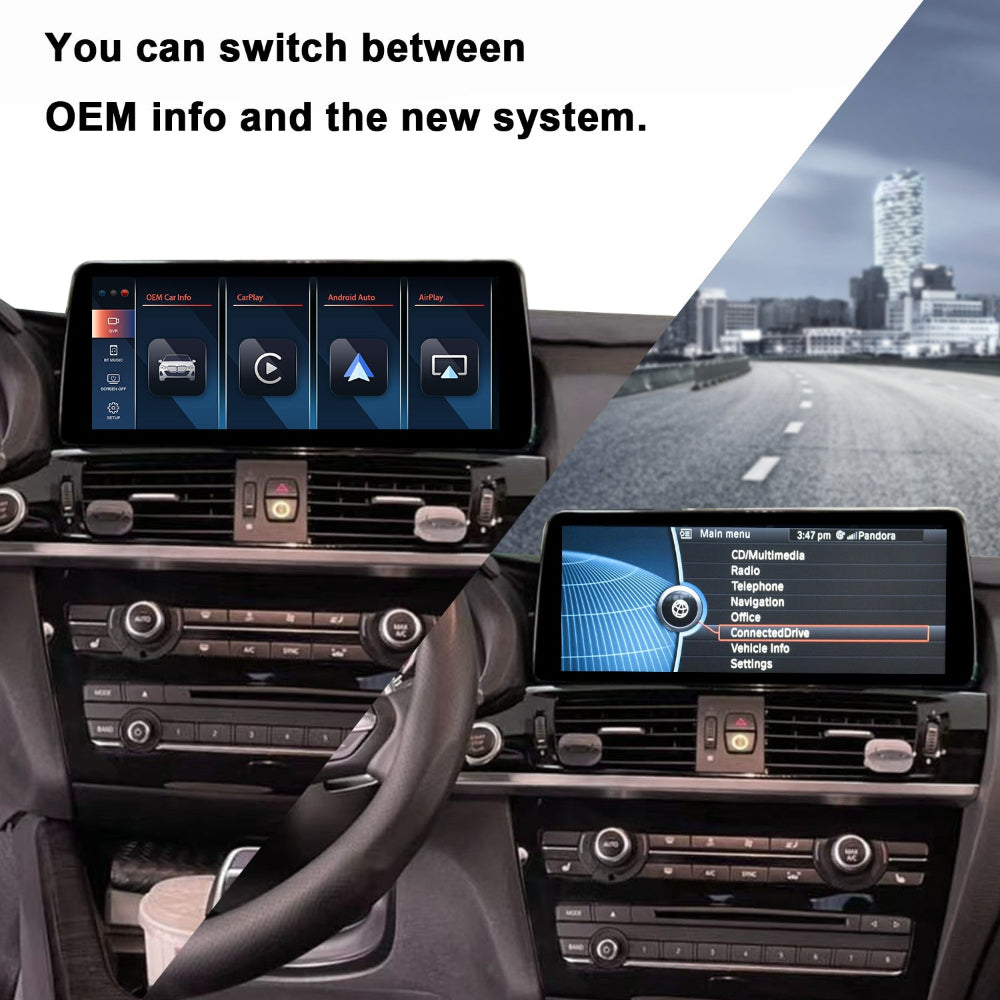

[OEM INFO] Support Factory Monitor Information Display; You Can Long Press Menu Button to Switch Between Factory OEM Interface and CarPlay Interface; Support Steering Wheel Button Function.
[QUICKLY] With Linux System, You Can Get CarPlay or Android Auto Interface Quickly; In 2 Seconds You Can Get Reverse Camera Video.
[CAMERA] Support The OEM Camera and after market Camer & front Camera (720P or Less). The Reversing Picture Will Be Very Clear.

Camera:

Without Camera With AHD Camera

Variantes de produtos:

$19.90

$69.00

Pay in installment: $661 /mth

Payment

1-Year Warranty

In stock! Ships within 1-2 business days.

Respond to questions within 12 hours.

Return to your nearest address. (USA and Europe)

Utilizes Non-Air-Gap Lamination Technology

Non-air-gap lamination technology has the following advantages over ordinary lamination
1. The image is more real and clear;
2. The viewing angle can reach 178 degrees;
3. Long-term use effectively prevent dust from entering the display;

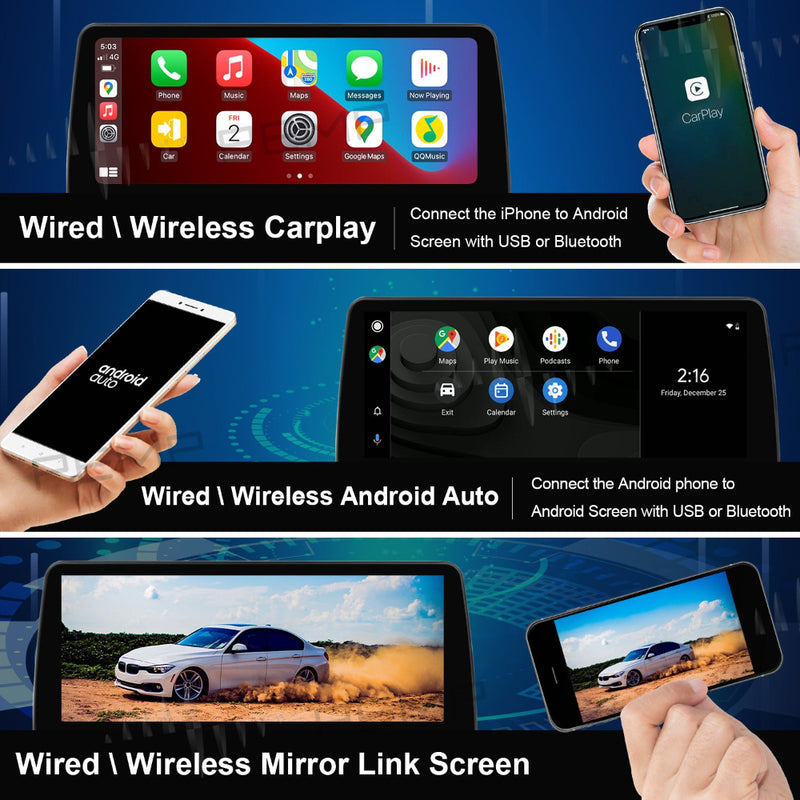

Intelligent Interconnection

Support wired and wireless

Wired/Wireless Carplay For BMW F25

Built-in Wired and Wireless Carplay

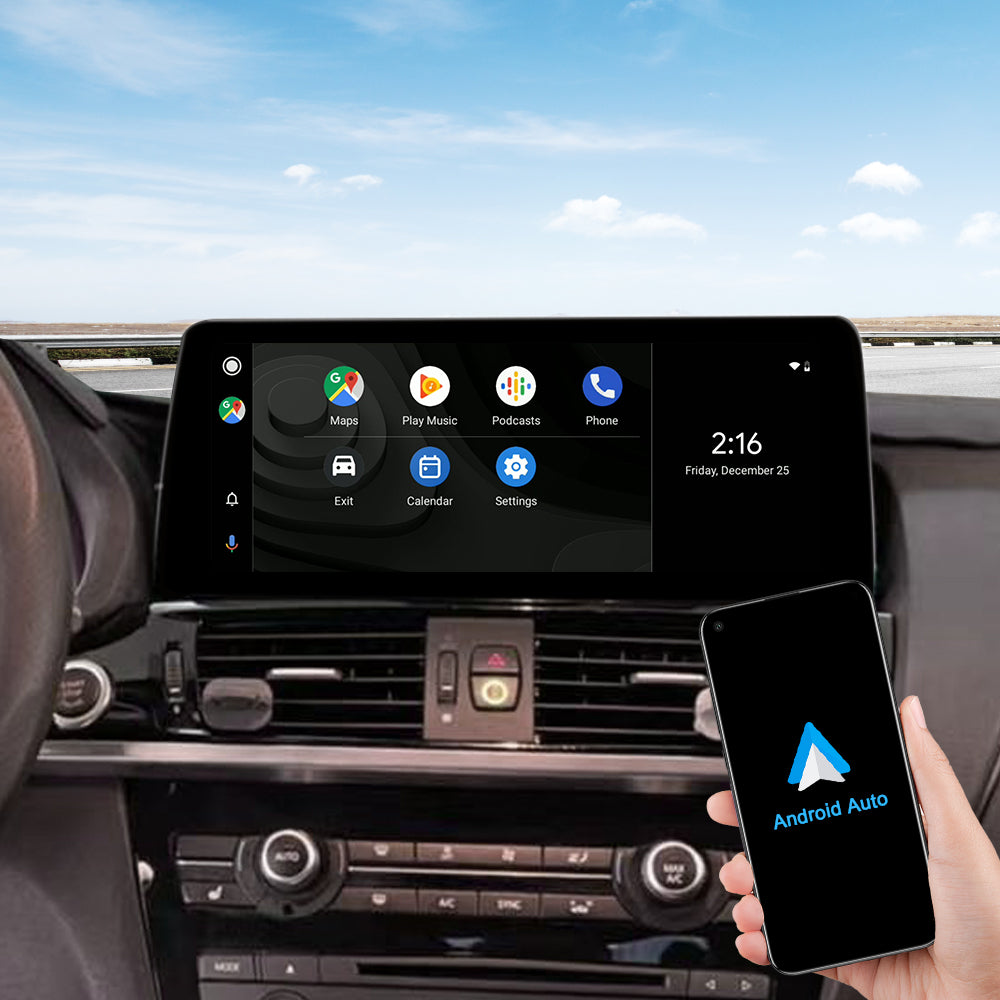

Wired/Wireless Android Play Auto For BMW F25

Built-in Wired and Wireless android play auto

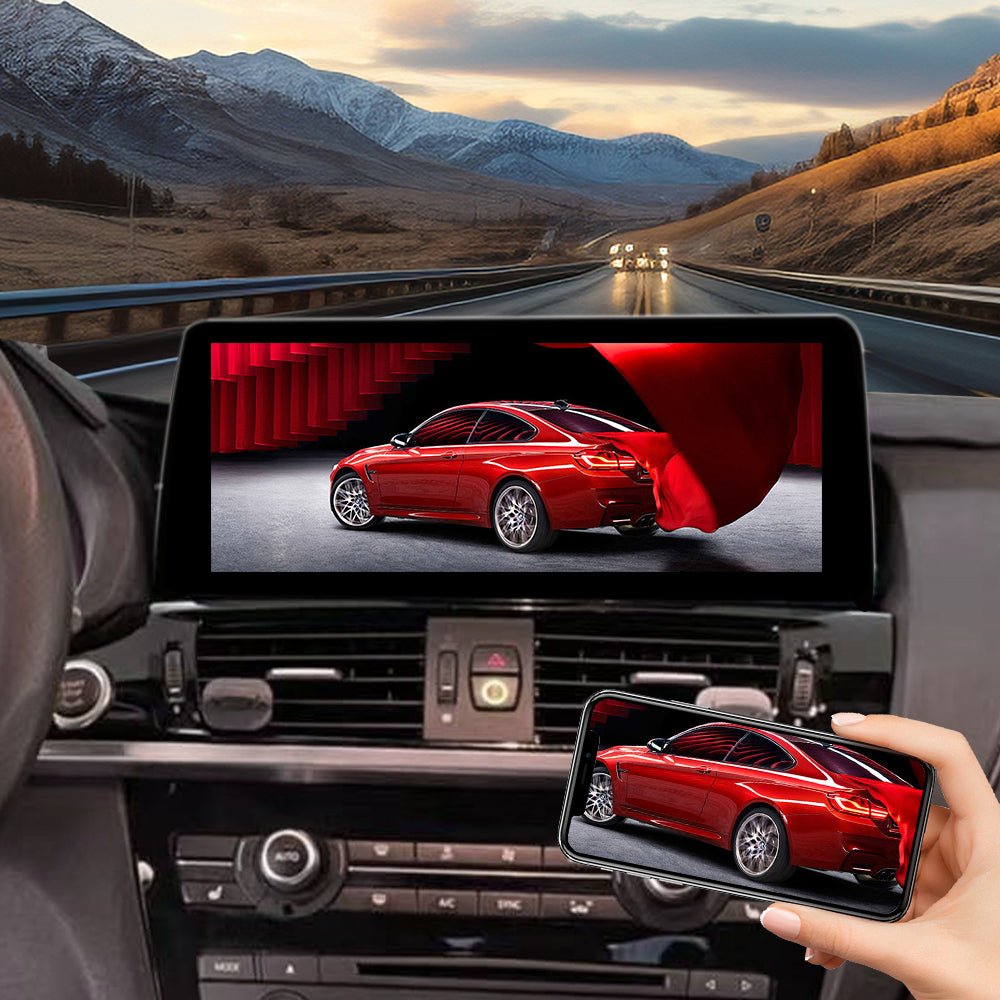

Wired/Wireless Mirror Link For BMW F25

Built-in Wired and Wireless Mirror link

OEM Functions

Support reverse camera and OEM system display

Set the OEM Resolution

Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly. Setup>Car Settings> Original Car's Screen Resolution> Select the item

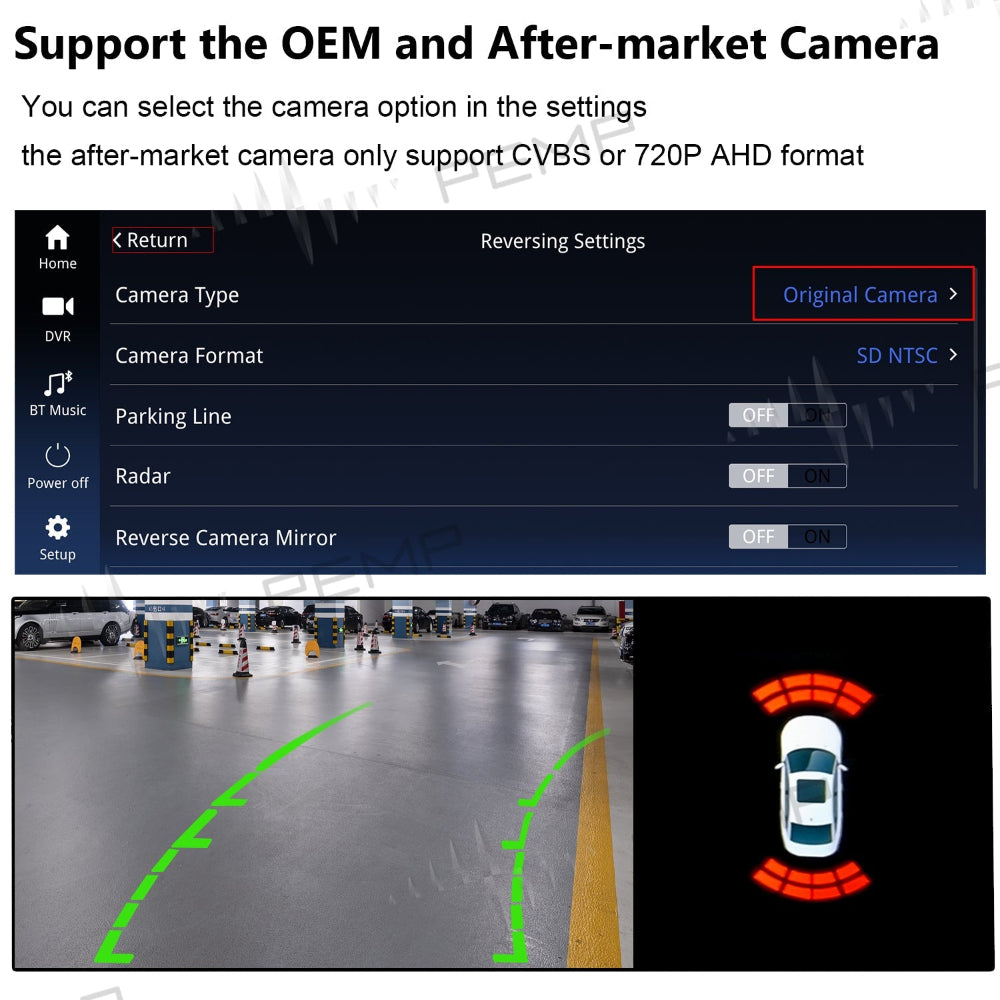

Support the OEM or after-market Camera

Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Product Installation and Setup

Approaches to common problems

Product Manual

Move The Original Host Fiber Optic Cable To The Linux Harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Linux harness. Otherwise you can't get the car information and the Linux sound. And it will be accompanied by a heartbeat wheezing sound.

Need use The USB IN1 Connect The Wired Function

Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

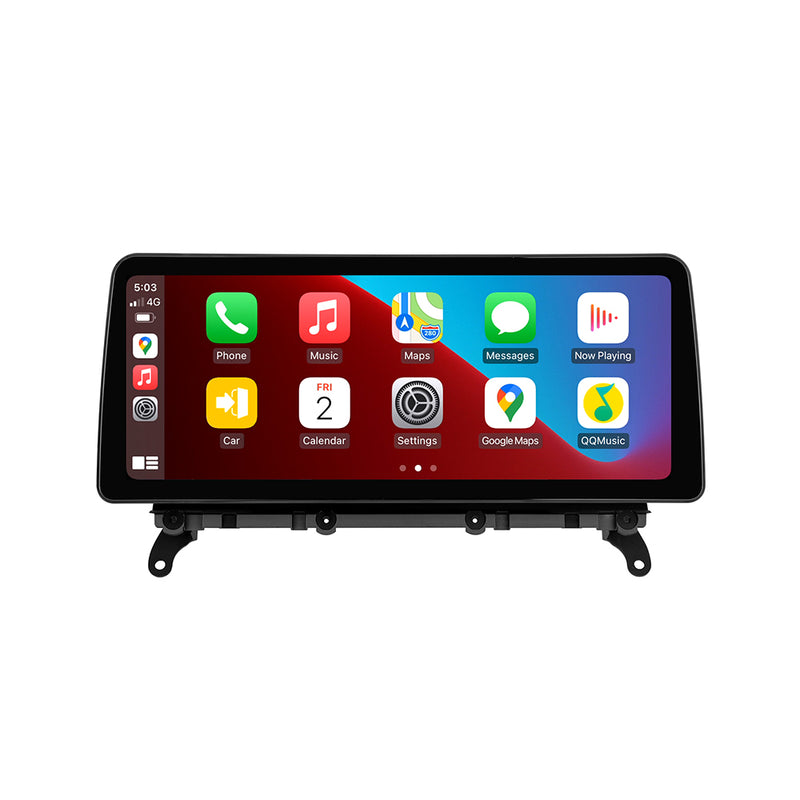

Use The 12.3" Big Ips Touch Screen

Use 12.3" big screen, the Resolution: 1920X720 Aspect ratio: 8:3, Viewing angle: 170 degrees

Only For BMW CIC System (4PIN LVDS)

This product is only suitable for BMW CIC system. There is a 4PIN LVDS at the back of the OEM screen. It does not support CCC 10PIN system. If you buy the wrong system, you will not be able to install it.

IN THE BOX

1× Linux Screen

1 x ISO Wiring Harness

1 x USB Cable

1 x Audio Cable

1 x Installation manual

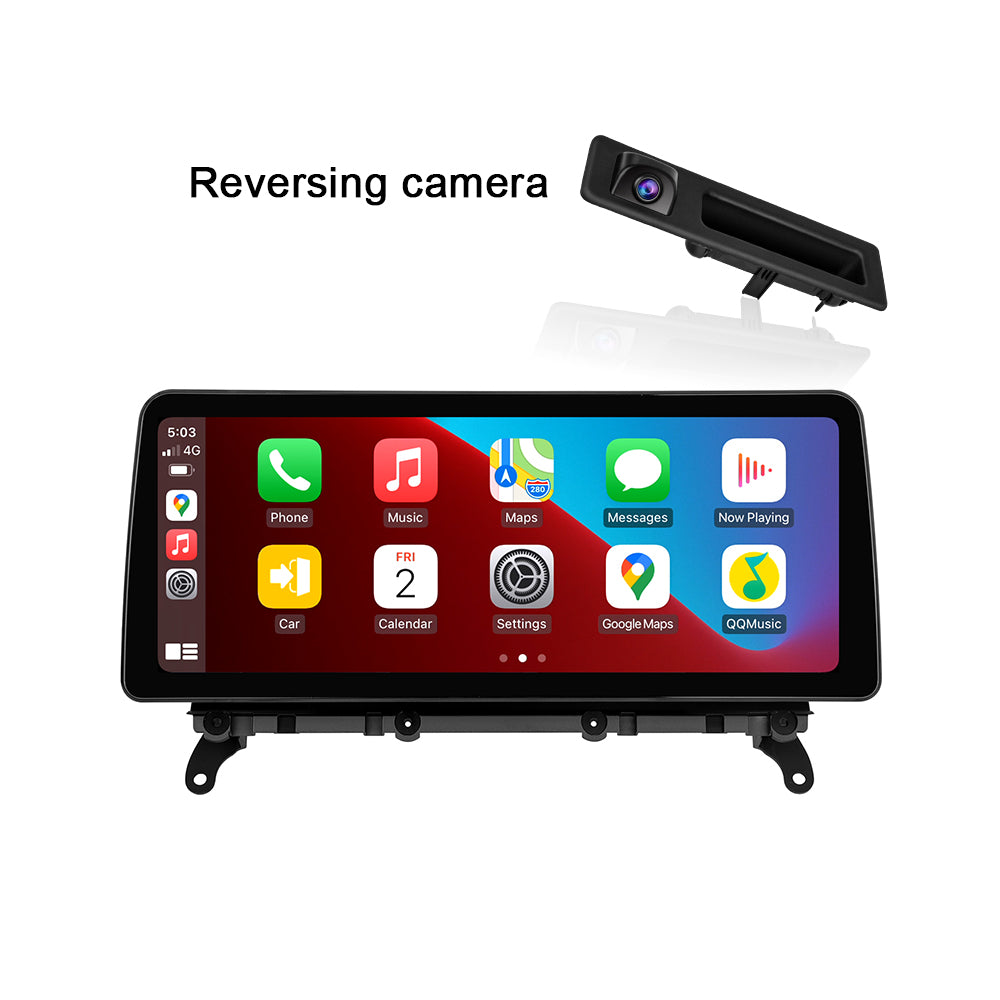

Reversing Camera (Only for With Camera option)

Frequently Asked Questions

Pre-Sales FAQ

Answer your pre-sales questions

PEMP screen products are abundant, if you want to buy the right PEMP screen for your car, you need to know which kind of OEM system your car has first.
Below we'll cover the differences and appearance of the 4 common BMW screen systems
1. The CCC system is used in older models, with a simple display interface and four functions, communication, Climate, navigation and Entertainment, that can be distinguished at a glance.
The CCC LVDS cable is a 10 PIN LVDS cable:
2. The CIC system, with significantly more features than the CCC, is arranged in a vertical list. Maps, phone, radio, navigation, CD, etc. are available, and you can set options and view vehicle information at the same time.
The LVDS cable used in the CIC system is a 4 PIN LVDS cable:
The NBT system is still arranged in a vertical list and begins to have a connected driving function as well as a mobile office, and the system is more technological compared to the CIC detailing with highlights and shadows.
NBT uses a 6 PIN LVDS cable
2. The EVO is arranged horizontally for a richer functionality and an easily recognizable system UI.
EVO system still utilizes the 6 PIN LVDS connector.

This content describes in detail the difference between Android screen and LINUX, I believe you will have a clear understanding of them after reading all the content, and then according to your needs to buy the right screen for you.
You can also copy the video link to your browser off to see the detailed video tutorial:
https://youtu.be/wReZG_1Aajo
Or scan the QR code of the video to watch it:
Below is a general overview of the differences between the Android screen and the LINUX screen:
Points of difference:
Difference 1: Start-up speed difference
Android screen startup time is about 35 seconds,
LINUX screen startup time is about 9 seconds.
Difference 2: Price difference
Android screens are relatively expensive due to their functionality and highly regulated configuration.
LINUX screens are relatively simple in terms of functionality and configuration and are relatively inexpensive.
Difference 3: APP Download and Installation.
Android screen supports downloading APP and installing，
LINUX screen can't download APP and only supports using some APP by connecting Carplay and Android Auto.
Difference 4: SIM card and TF/SD card difference
Android screen has built-in SIM card and SD/TF card slot, support using SIM card network and TF/SD card memory expansion.
LINUX screen has no SIM card and SD/TF card slot, does not support SIM card and TF/SD card function.
Difference 5: Built-in navigation .
Android screen with built-in navigation, support for connecting GPS antenna, you can use the navigation directly without connecting the phone.
The LINUX screen does not have built-in navigation and does not support the connection of a GPS antenna; navigation must be used through the phone with Carplay and Android Auto connected.
Difference 6: Memory Difference
Android screens support the selection of memory configurations.
LINUX screens do not support the selection of memory configurations.
Difference 7: Antenna and installation difficulty.
Android screen support GPS and SIM card, standard equipped with GPS and 4G antenna, the installation of the GPS and 4G antenna need to find the location of the installation and the location of the cable, the difficulty of installation is relatively difficult.
LINUX screen does not support GPS and SIM card, do not need to install GPS and 4G antenna, the difficulty of installation is relatively easy.
Difference 8: CPU difference
Android screen uses a Qualcomm processor,
LINUX screen uses a Sunplus processor.
Difference 9: Aftermarket Reverse Camera
Android screen supports installation of 1080P and 720P AHD/CVBS aftermarket reversing cameras.
LINUX only supports to install 720P aftermarket reversing camera.
Similarities:
Similarity 1: Intelligent Connectivity
Both Android and LINUX screens support wireless and wired Carplay & Android Auto connectivity.
Similarity 2: Dual system switching
Both Android and LINUX screens support OEM systems as well as quick switching between corresponding aftermarket systems (Android/LINUX).
Similarity 3: Camera and Radar .
Android screen and LINUX screen both support OEM reverse camera and radar display.
Android screen and LINUX screen both support installation of aftermarket reverse camera.
Similarity 4: Same screen specs.
Both the Android screen and the LINUX screen use touchscreens of the same size and resolution.

After-Sales FAQ

Answer your pre-sales questions

If you are experiencing problems with your OEM system displaying anomalies, you can check your screen and cables one by one by following the steps shown in this document.
You can also copy the video link to your browser off to see the detailed video tutorial:https://youtu.be/0iTuDq0D2Ow
Or scan the QR code of the video to watch it:
Step 1: Press the FM/AM button and check the radio for sound .
A: If you can hear the FM sound, please go to the PEMP system homepage, then click Settings-Car Settings-Original Car’s Screen Resolution in turn, then choose the resolution suitable for your OEM screen,then restart the screen.
B:If you can't hear the FM sound, it means the screen is in unpowered state, you need to check all the ISO harnesses and plugs and unplug them all and plug them in again. Then check for loose power and LVDS cables behind the screen.
Note: In order to prevent the plug from loosening, the plug is designed to be relatively tight, you can use a little force when inserting, please ensure that the plug is completely
Step 2: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness. Otherwise, it will cause no sound/no time display/no display of OEM system and so on.

If you experience abnormal sound problems, you can check the screen and cables one by one by following the steps in this document.
You can also copy the video link to your browser off to see the detailed video tutorial: https://youtu.be/8sAp9-Lyr5Y
Or scan the QR code of the video to watch it:
Step 1: Click OEM CAR INFO on PEMP home page to enter the OEM system, check whether the OEM system can be displayed normally.
A: If the OEM system displays anomalies, refer to the documentation in the Documentation list on how to handle abnormal OEM system displays.
B: If the OEM system can be displayed normally, please click Multimedia-External Devices, and then select Multimedia Mode as AUX front.
Step 2: Check if the volume is too low, use the screen to play music and use the volume control knob to drastically adjust the volume to increase the volume.
Step 3: Go to Settings-Audio-Volume and turn the volume up.
Step 4: Connect one end of the supplied AUX cable to the AUDIO OUT port on the IOS harness; The other end connects to the car's AUX IN (usually located at the armrest box).
Step 5: Connect the A/B cable plugs to each other.
Step 6: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness.
Step 7: Check the ISO harness plugs and re-unplug and re-insert the plugs .
Step 8: Check the power cable and LVDS cable on the back of the screen and unplug and re-plug them.
