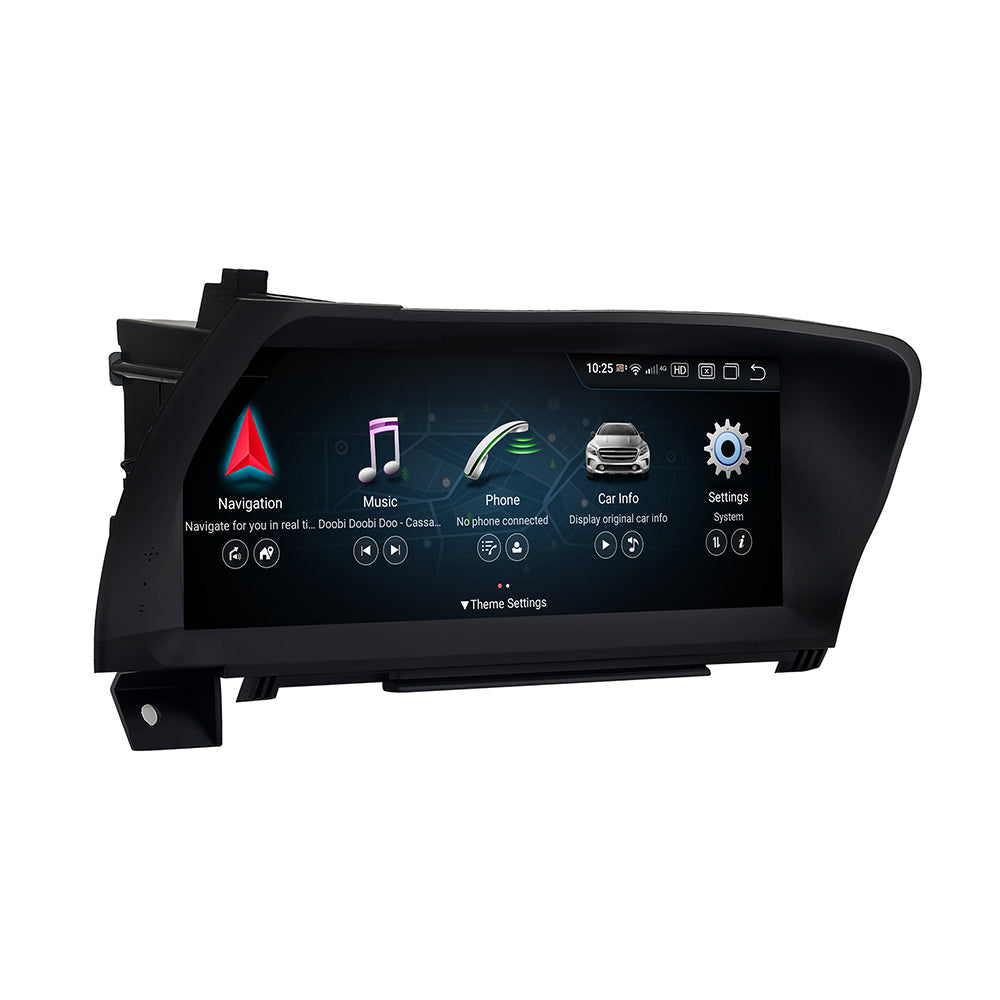

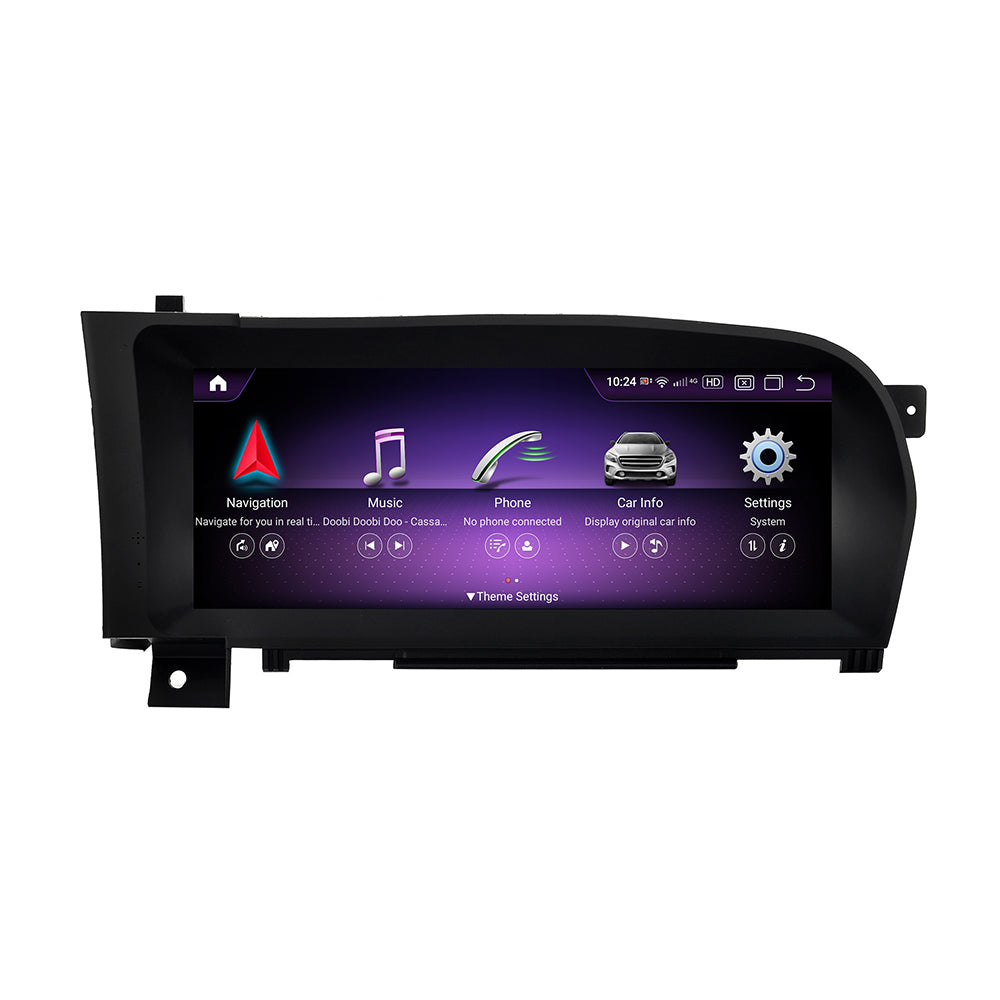

PEMP (6121) Android Screen Style W221 W216 CarPlay Android Auto 10.25" Android 14 Snapdragon 665 8core 8+128GB Display for Mercedes S Class NTG 3.0 3.5 (2006-2013)

$599.00
$599.00
Frais de port calculés à la caisse.
  1. [Very Important] 10.25-inch Android screen compatible with Mercedes-Benz W221 models (NTG3.0/3.5) from 2006 to 2013.
  2. [SPECIAL IMPORTANCE] If your OEM interface doesn't have AUX menu, please ask our after-sales service for activation steps. You must activate it first, otherwise the Android device will not make sound. Also be sure to connect the power cable “VCC+12V” of the LVDS Box (NTG 3.0 or NTG 3.5) to the “DVR POWER”, otherwise the OEM menu information cannot be obtained.
  3. [FEATURED FUNCTIONS] 10.25"  1920x720 HD screen. Qualcomm Snapdragon 665 8-core processor. 8G+128G. Bluetooth 5.0 for music+navigation. Online voice control with network.

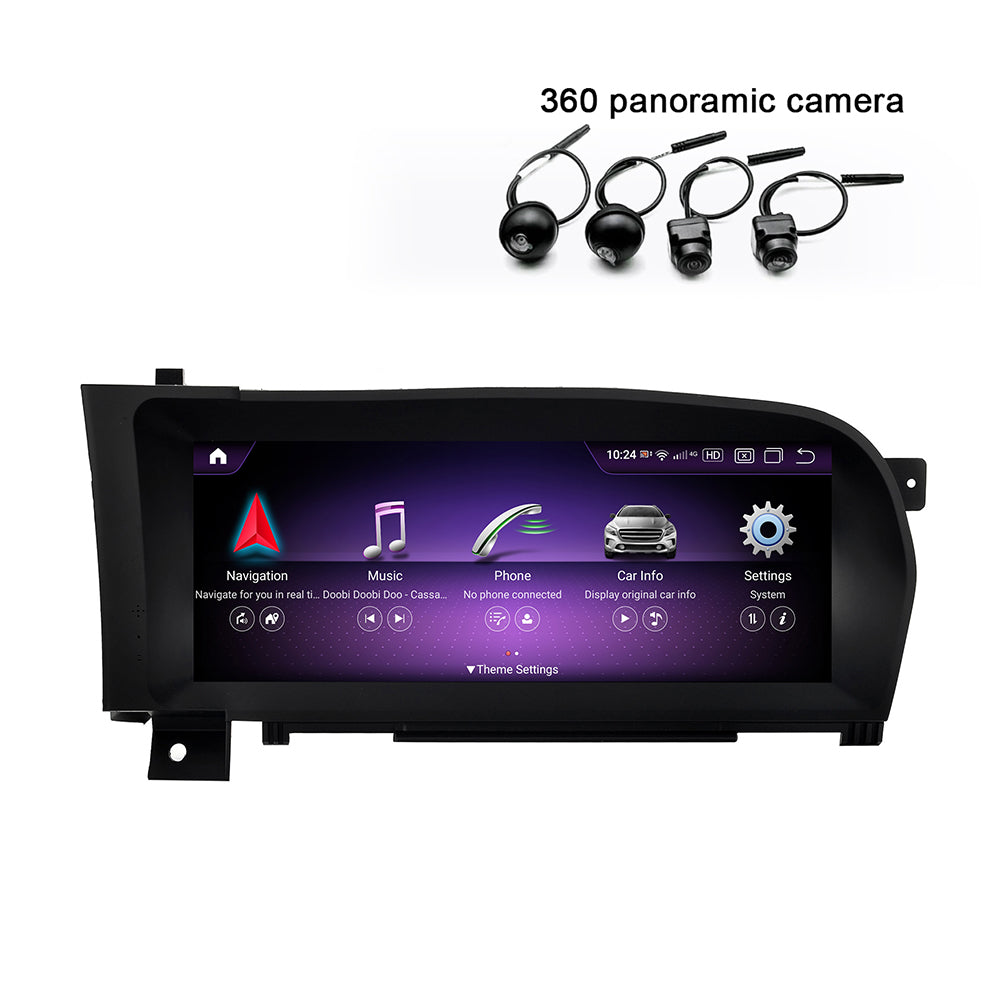

  4. [MORE FUNCTIONS] Retains original car functions. Supports Carplay, Android Auto, Mirror Link. Supports 360 Camera. Keeps radio, amplifier, knobs control. Supports Bluetooth, Wifi, USB. Split screen. Google Play. Multiple languages.
Camera:
$19.90
$39.00
$39.90
Pay in installment: $661 /mth
Payment
MastercardVisaAmerican Express PayPalMaestroKlarnaJCBDiscover

  1. Processor: Qualcomm Snapdragon 665
  2. CPU: 4xA73@2.0GHz 4xA53@1.8GHz
  3. GPU: Adreno 610 950 MHz
  4. Process Node: 11nm
  5. Display: IPS 10.25"1920x720RGB
  6. Touchscreen: Capacitive
  7. Storage: 8GB RAM + 128GB ROM
  8. Android Version: 14
  9. Operating Voltage and Temperature: DC 14V -20℃ to +70℃
  10. Video Support Format: 1080P
  11. Reversing camera support format: 1080P/720P/CVBS
  12. Front view support format: 1080P 30FPS

1-Year Warranty
In stock! Ships within 1-2 business days.
Respond to questions within 12 hours.
Return to your nearest address. (USA and Europe)

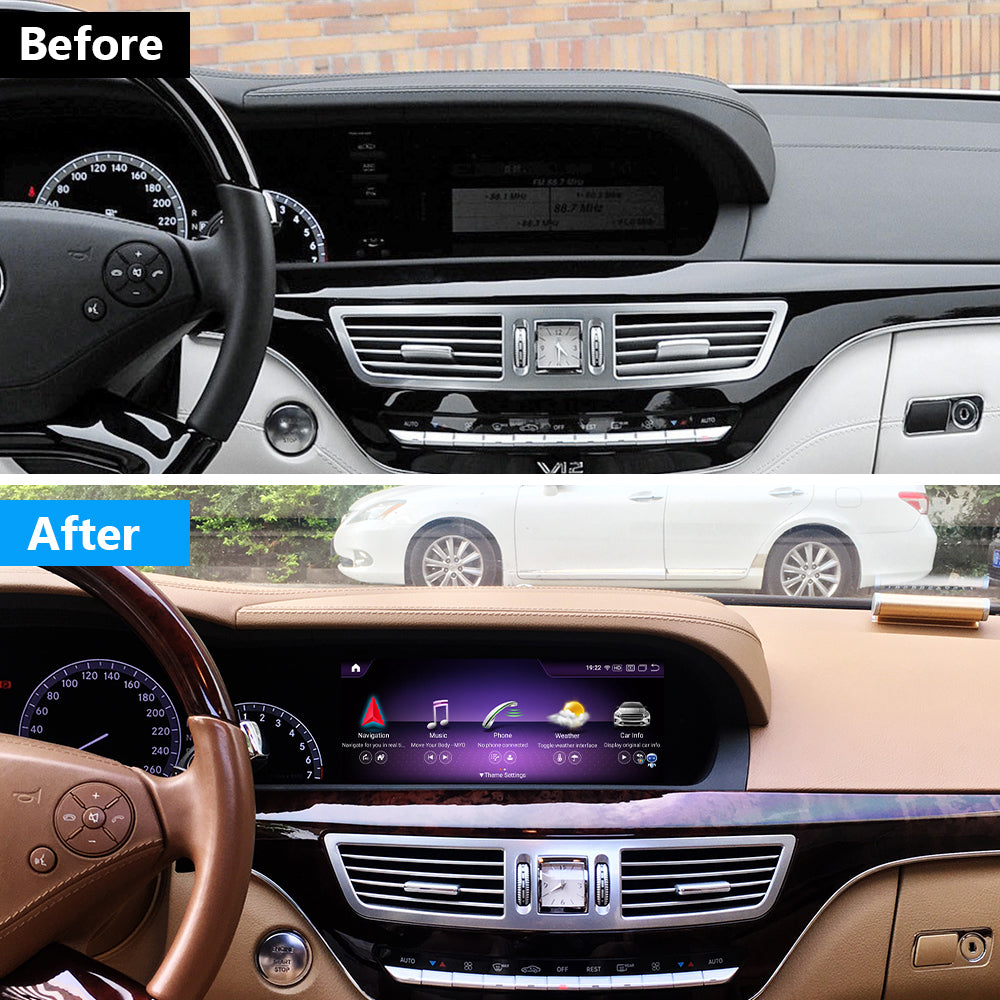

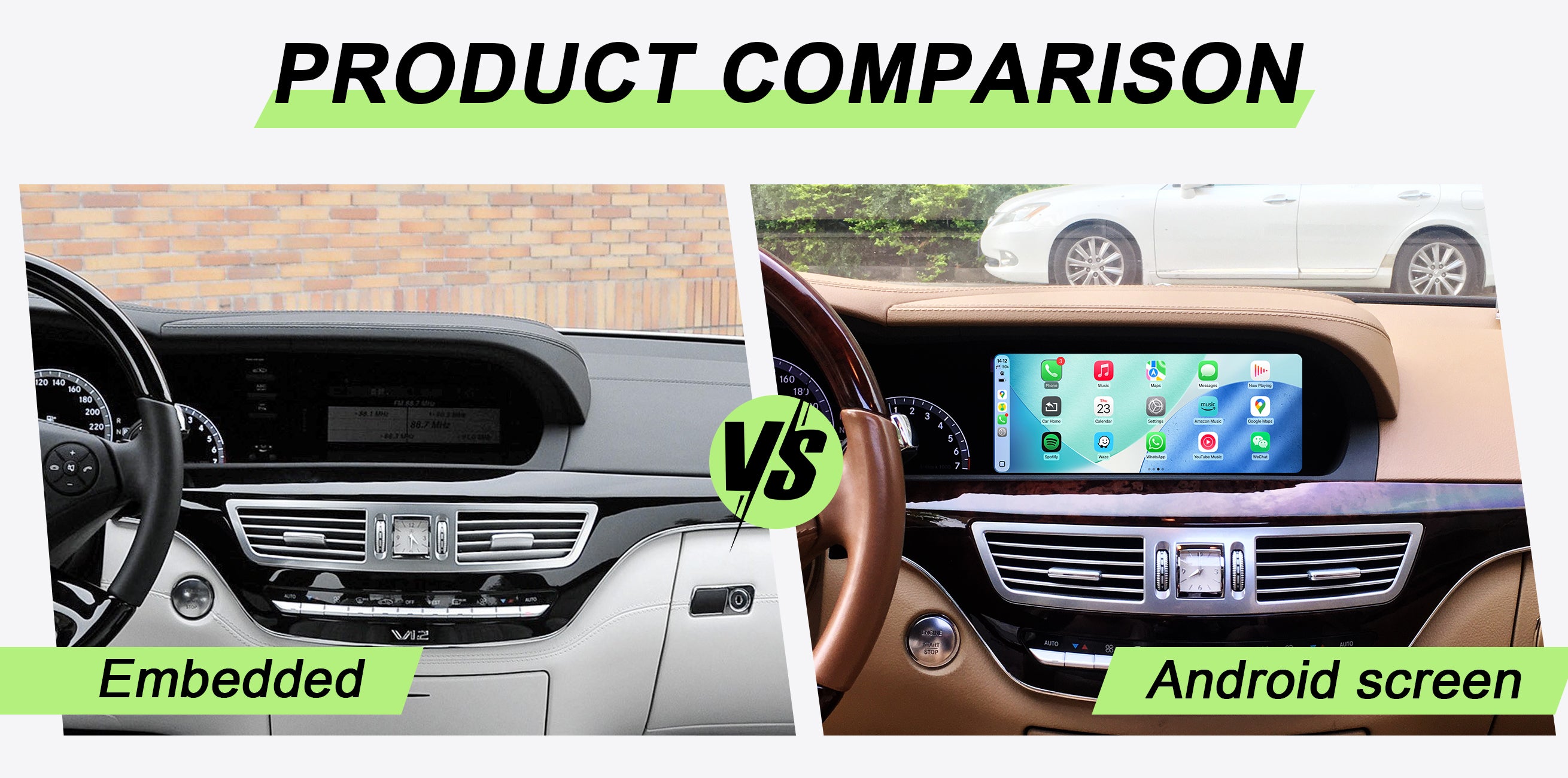

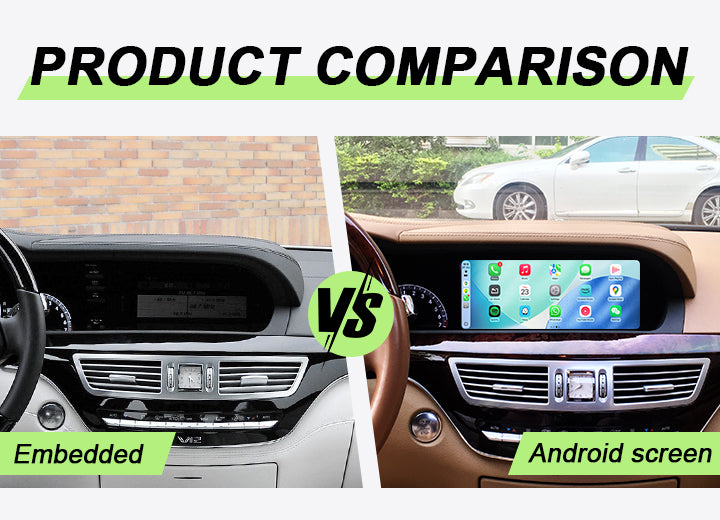

Replace the OEM screen with a large 10.25-inch Android screen.

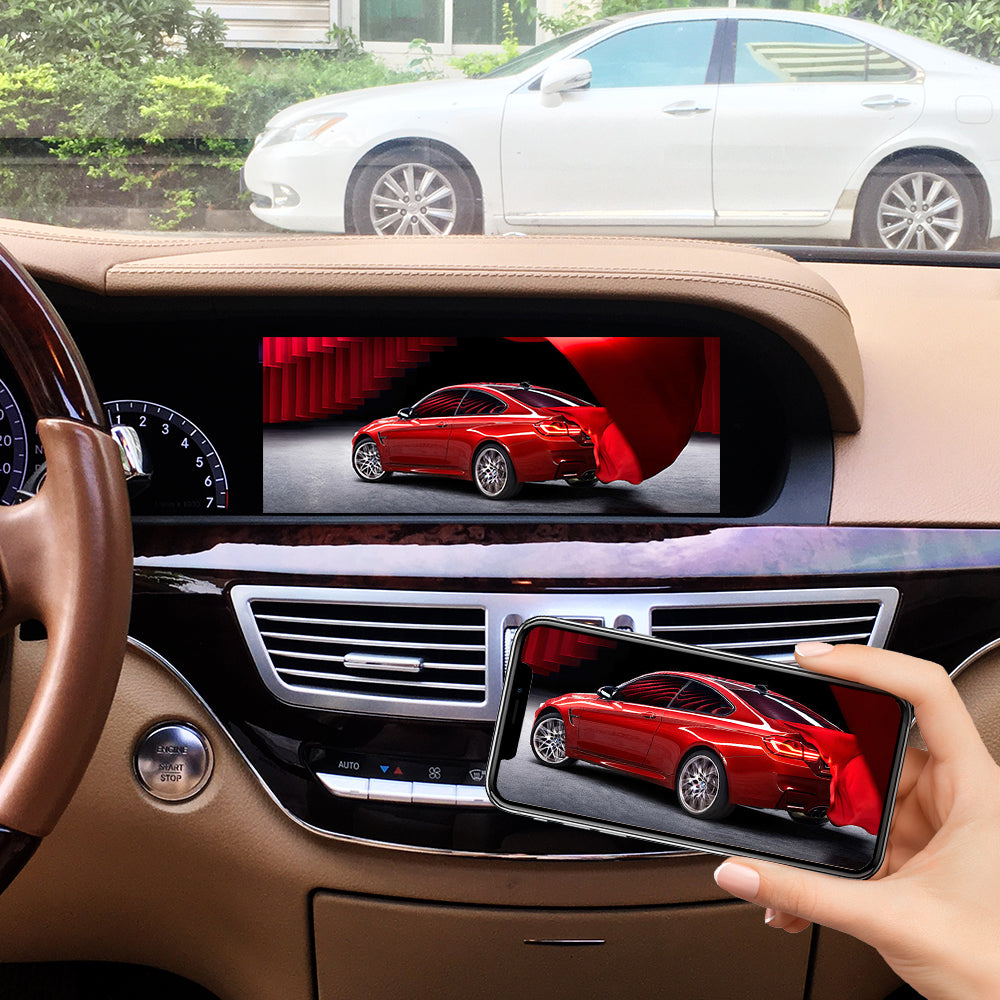

Support Wired/Wireless CarPlay & Android Auto, wireless mirror link. 10.25" 1920x720 multi-point capacitive touch display screen.

Read More
Supports 4G networks and allows you to download a variety of apps

With a built-in SIM card and support for 4G networks and 2.4GHz/5GHz Wi-Fi, you can make calls, watch videos, browse the web, and download apps anytime, anywhere, enjoying high-speed internet.

Read More

Intelligent Interconnection

Support wired and wireless

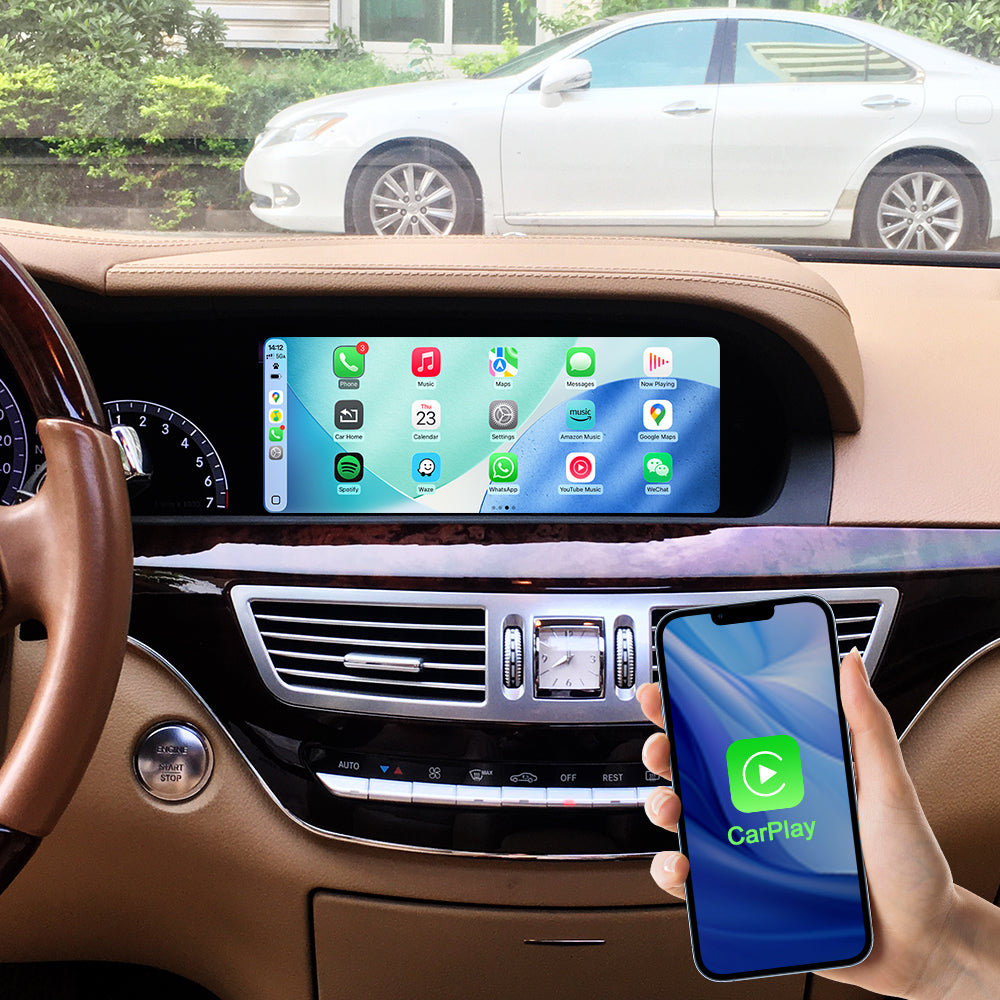

Support Wired/Wireless Apple Carplay

Built-in wired/wireless carplay function. You can use your phone app on PEMP screen, support touch control.

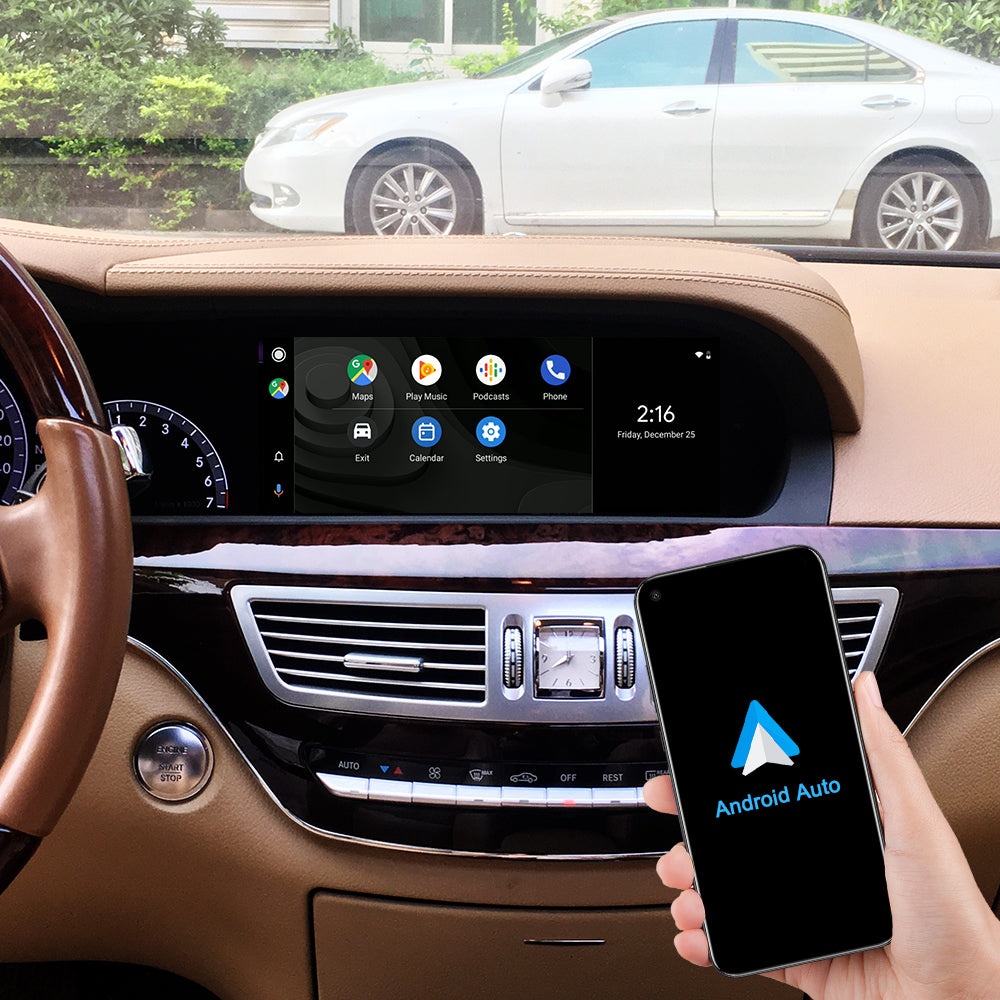

Built-in Wired/Wireless Android Auto Function.

You can use your phone app on PEMP screen, support touch control.

You can use your phone app on PEMP screen, support touch control.

You can use your phone app on PEMP screen, support touch control.

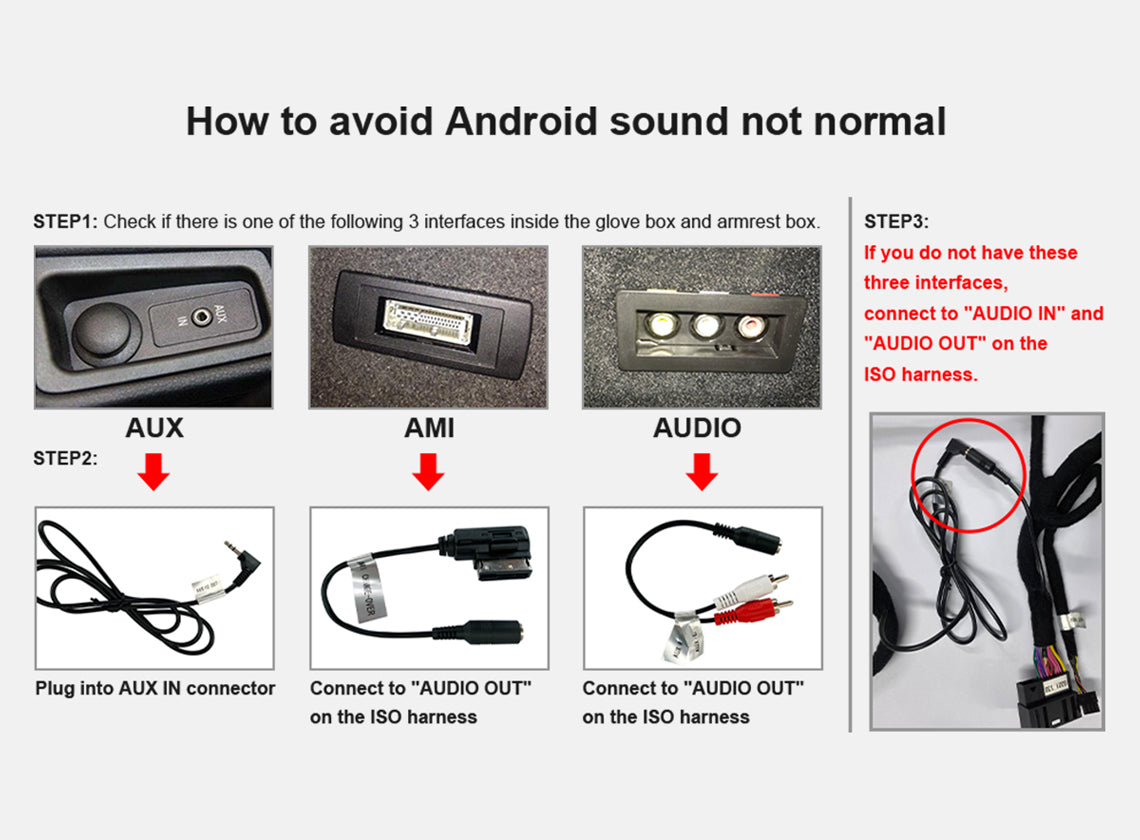

How to get the android sound

Please read the text below carefully

How to get the android sound

This is a very important of Andriod Sound. 1.When your car has AMI, give priority to plug in the AMI audio cable. 2. If it doesn't have AMI interface and has AUX input, you need to use the AUX audio cable to connect. 3. If your car has the 3.5mm AUX jack, please connect the Android harness with the 3.5mm audio plug on top of it. 4. If your car has neither AMI nor AUX, you need to plug the audio in put and audio out put cables above the ISO directly to each other.

Product Installation and Setup

Approaches to common problems
Product Manual

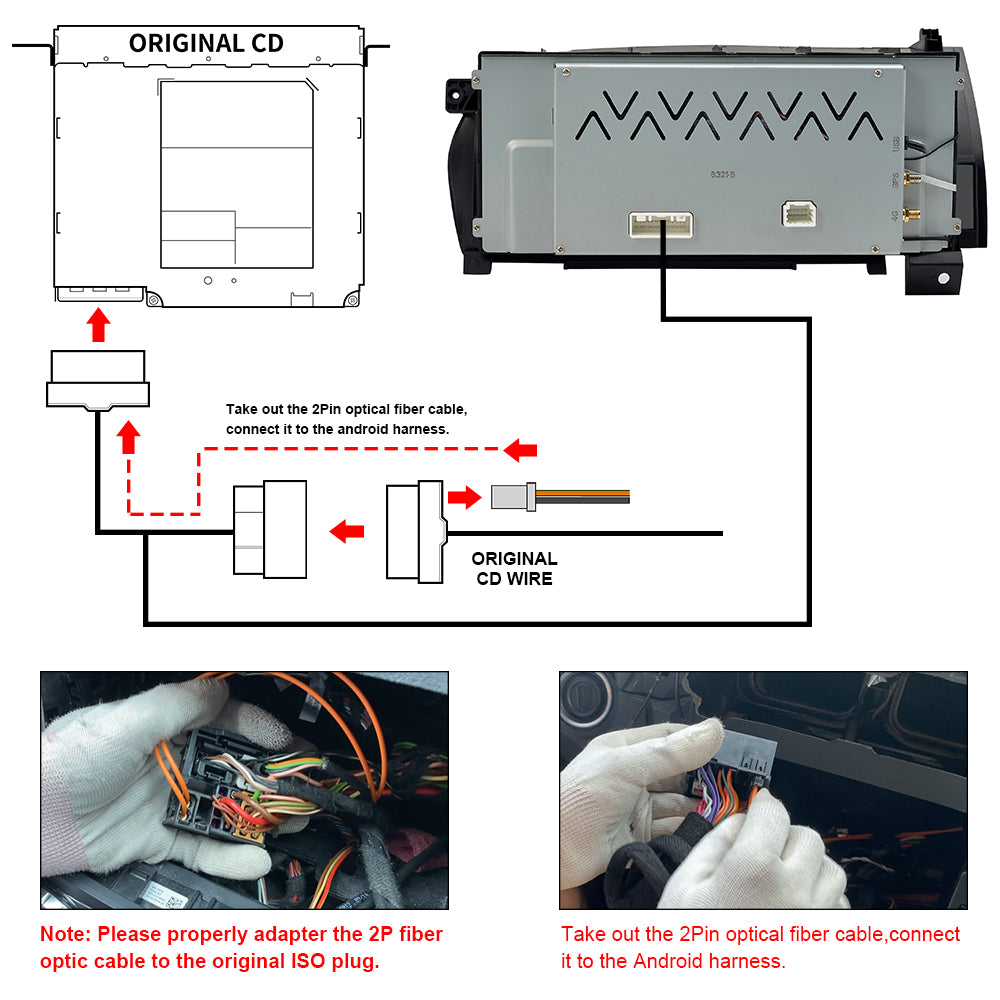

Move The Original Host Fiber Optic Cable To The New Harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the new harness. Otherwise you can't get the car information and the CarPlay sound. And it will be accompanied by a heartbeat wheezing sound.

Activate The OEM AUX Menu (NTG 3.0) ,Otherwise You Won't Get The Android Sound.

If your NTG 3.0 the OEM menu doesn't have AUX, you need to activate it. Otherwise you can't get the Android sound.

Judge the NTG version according to the CD panel and Switch Panel of the original car

Big CF card slot, The button is ESP is NTG3.0 .Small SD card slot, The button is SPORT is NTG3.5.
