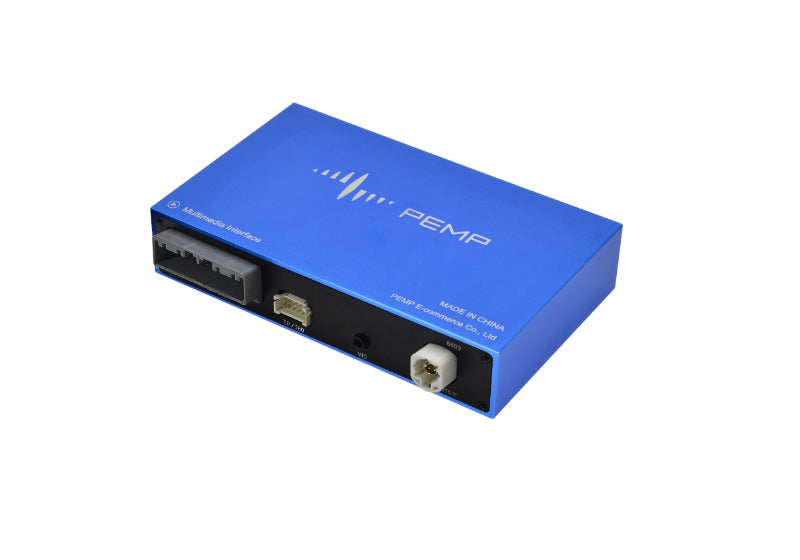

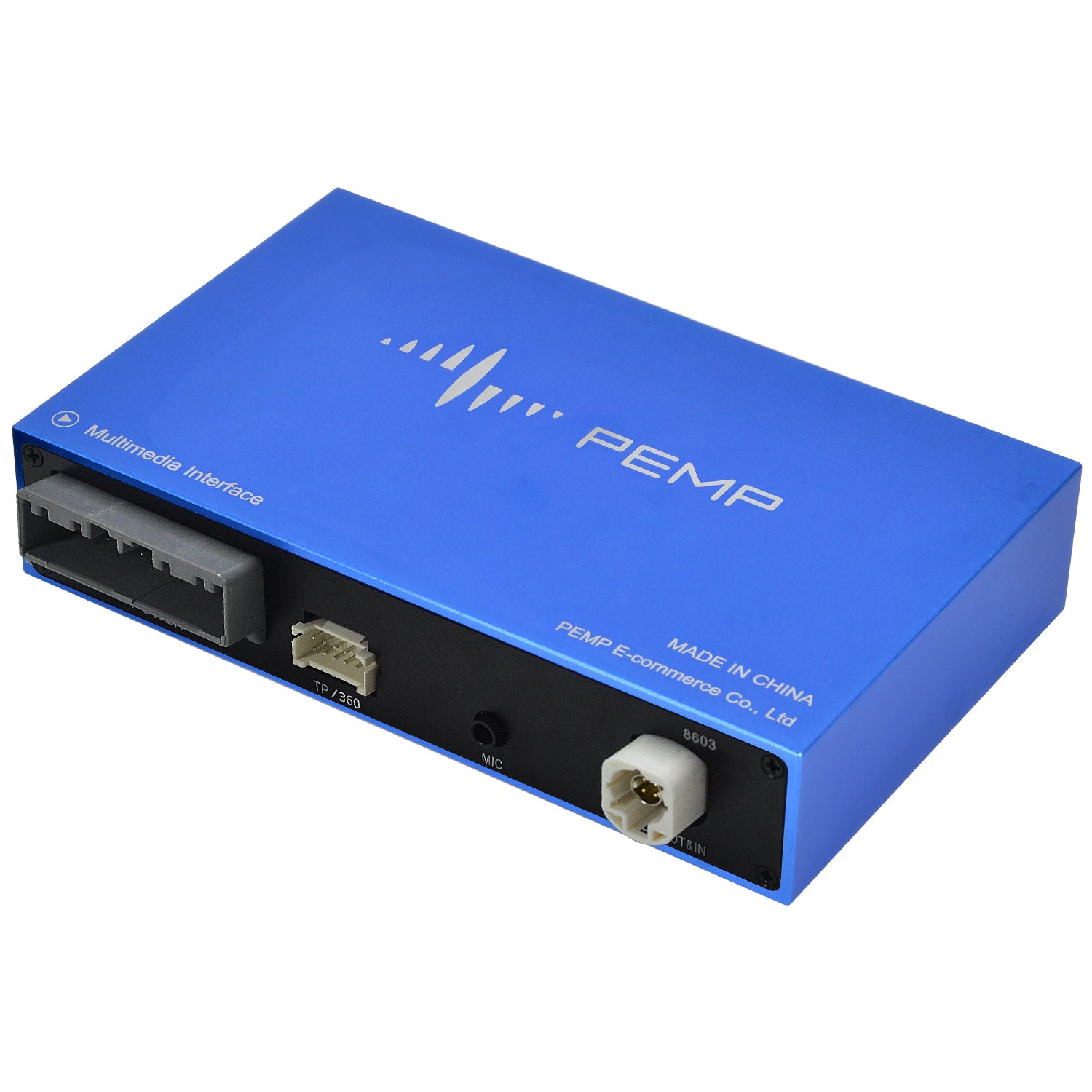

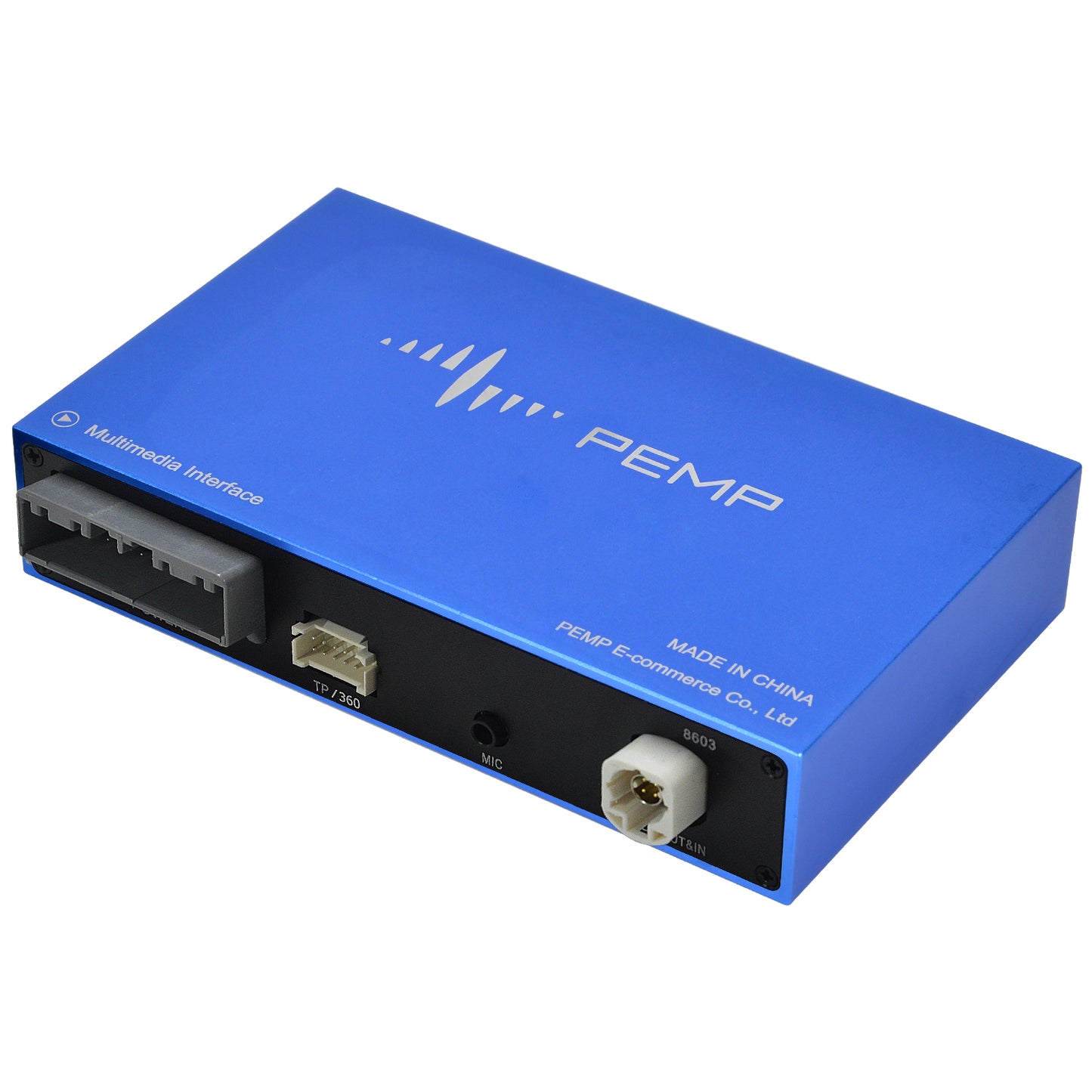

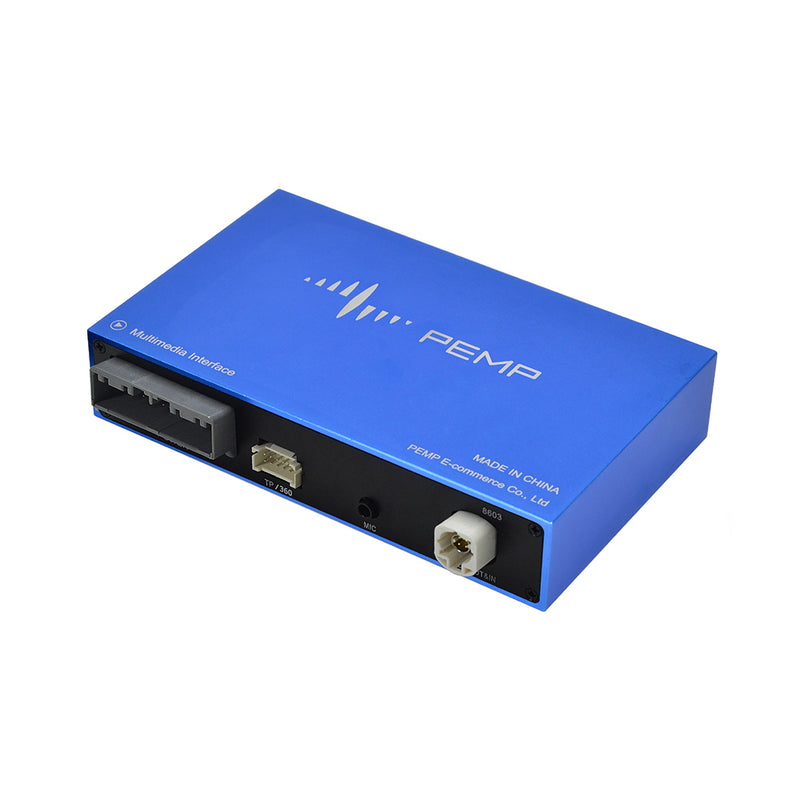

PEMP (CIC) Wireless CarPlay, Android auto Airplay Mirror Link, for BMW E60 E84 E89 E90 E70 F07 F10 F12 F01 F25 CIC

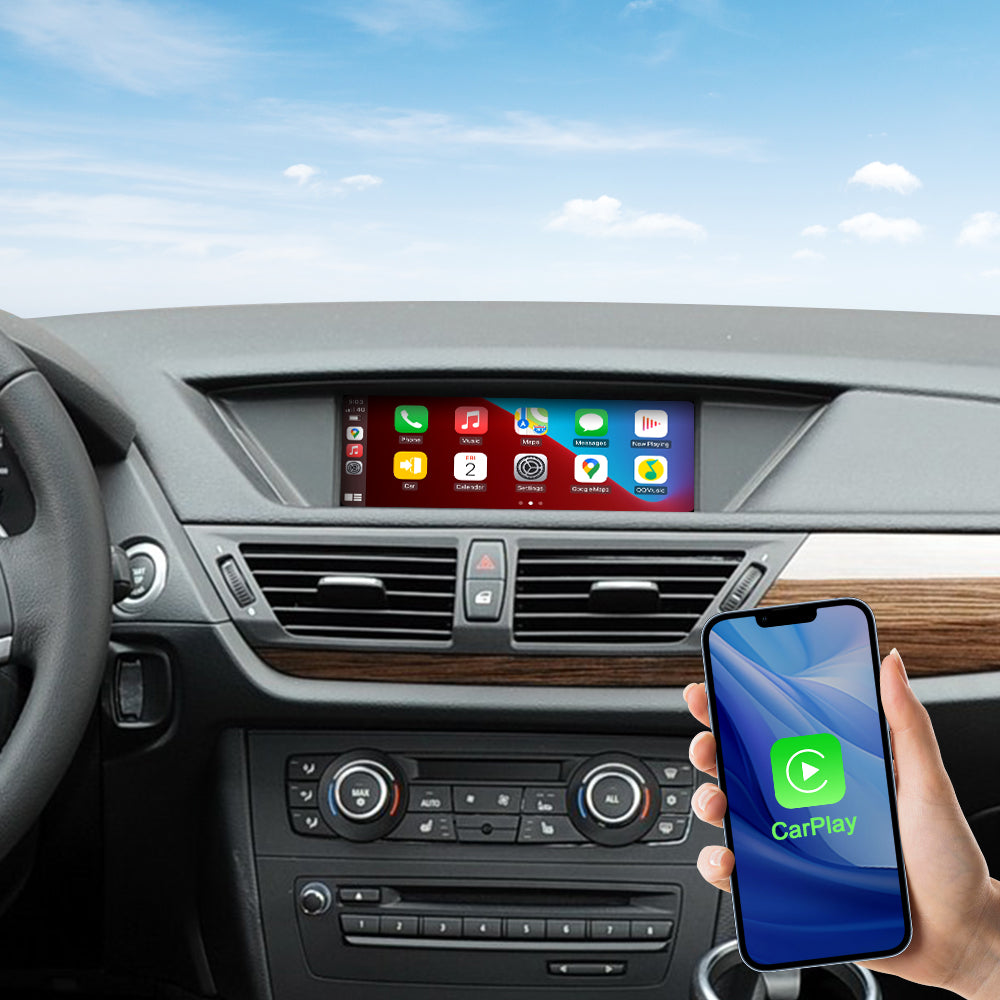

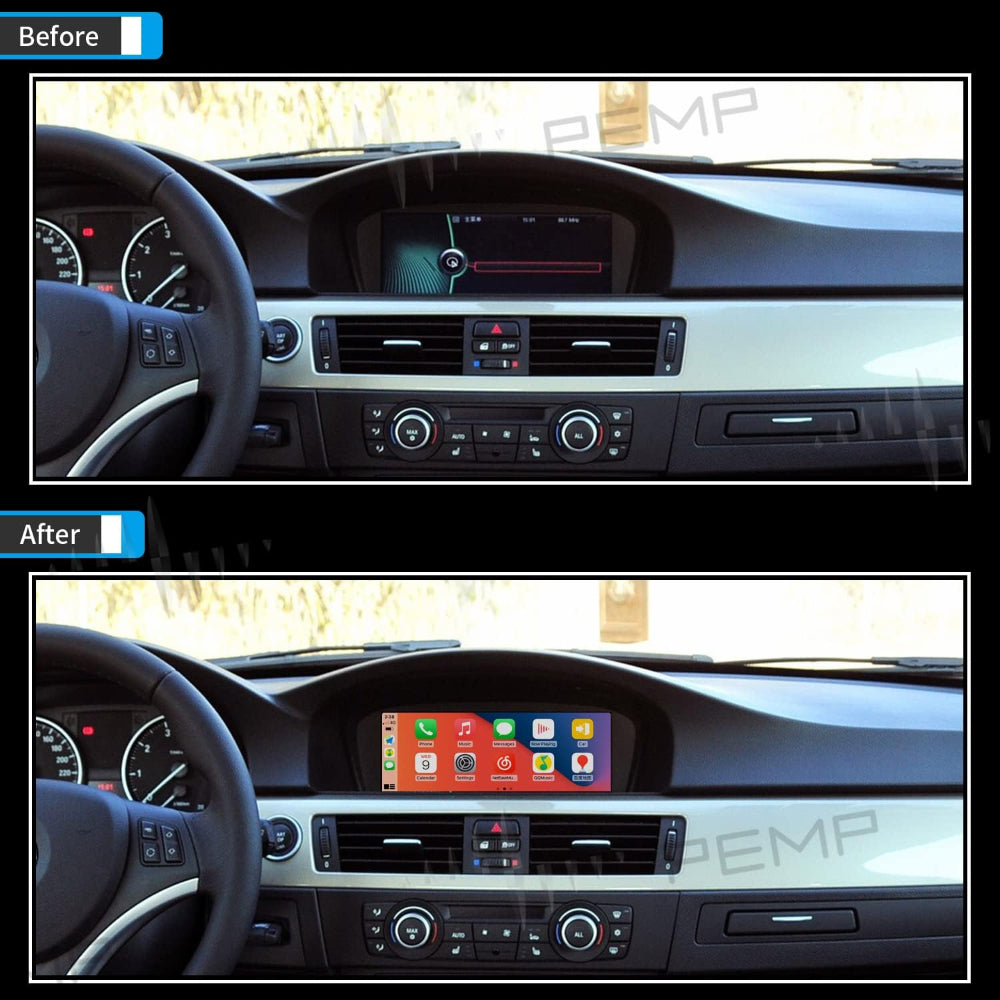

Built-in Wired and Wireless Carplay
Built-in Apple Carplay function, you can use the touch screen and OEM Knob control the menu of the carplay interface.

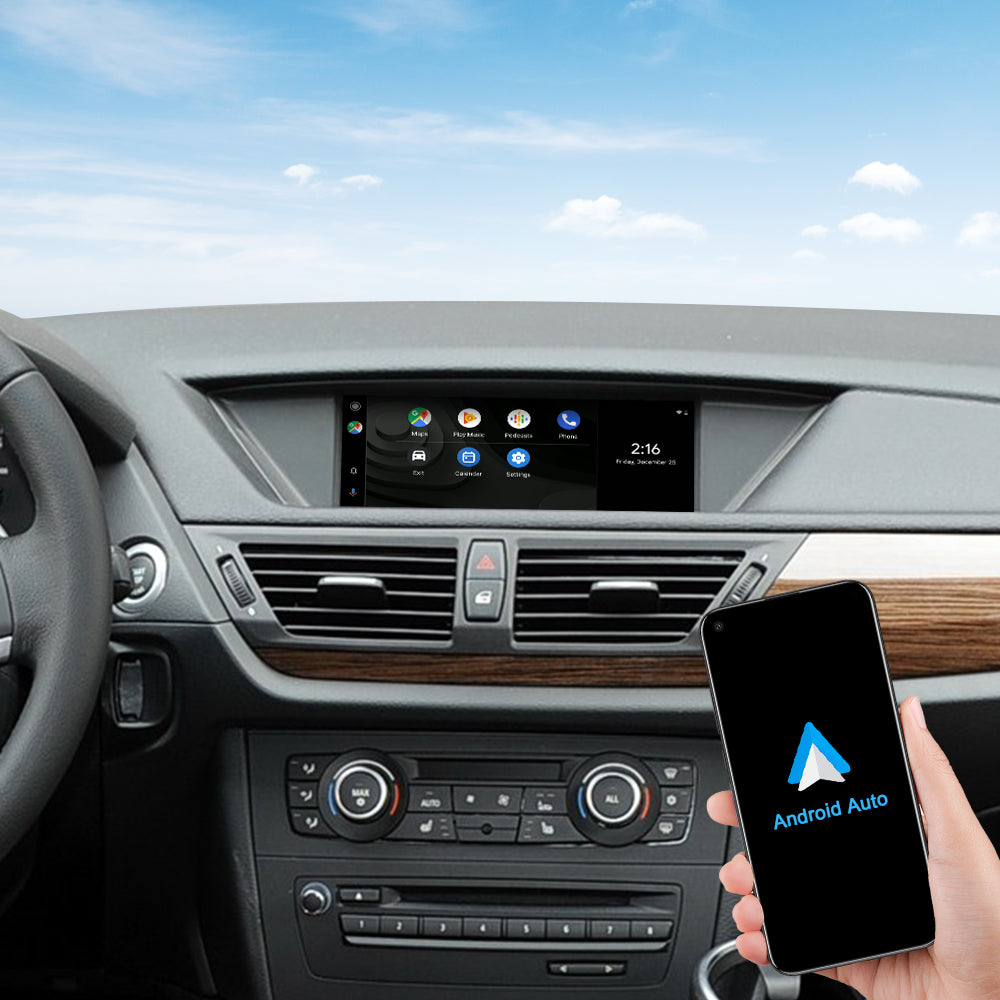

Built-in Wired Android Auto
Built-in Wered Android auto function, you can call on the android auto interface.

Built-in Morror Link Function
if you use the android phone, you should connect us get the morror link APP.

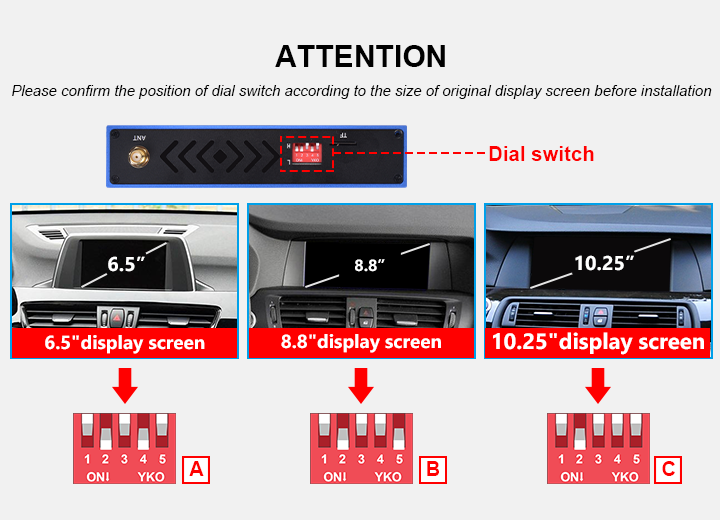

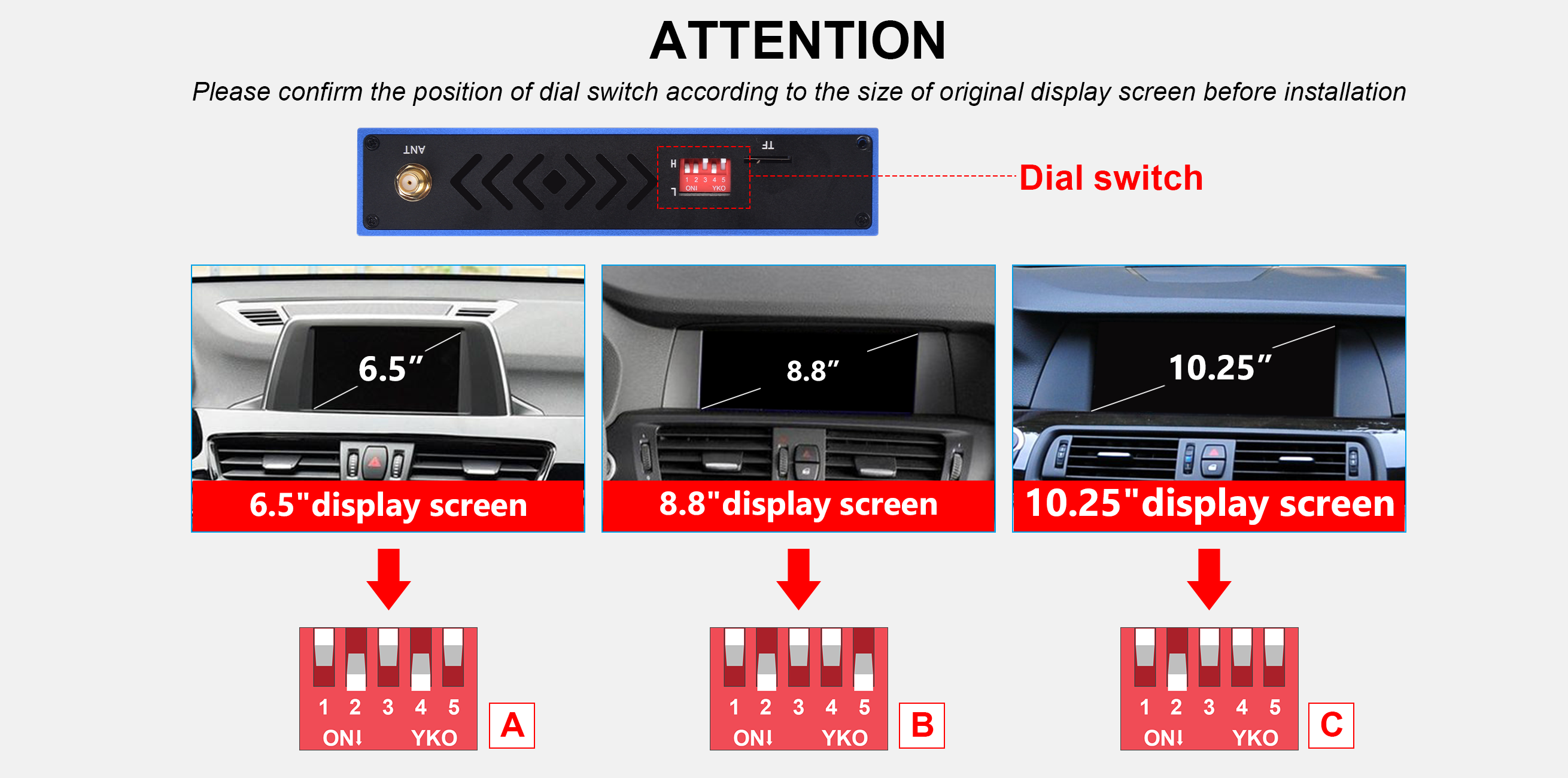

Setting of CIC Dial Switch
1. If your OEM screen is 6.5 inches, please Set to A;

2. If your OEM screen is 8.8 inches, please Set to B;

3. If your OEM screen is 10.25 inches, please Set to C;

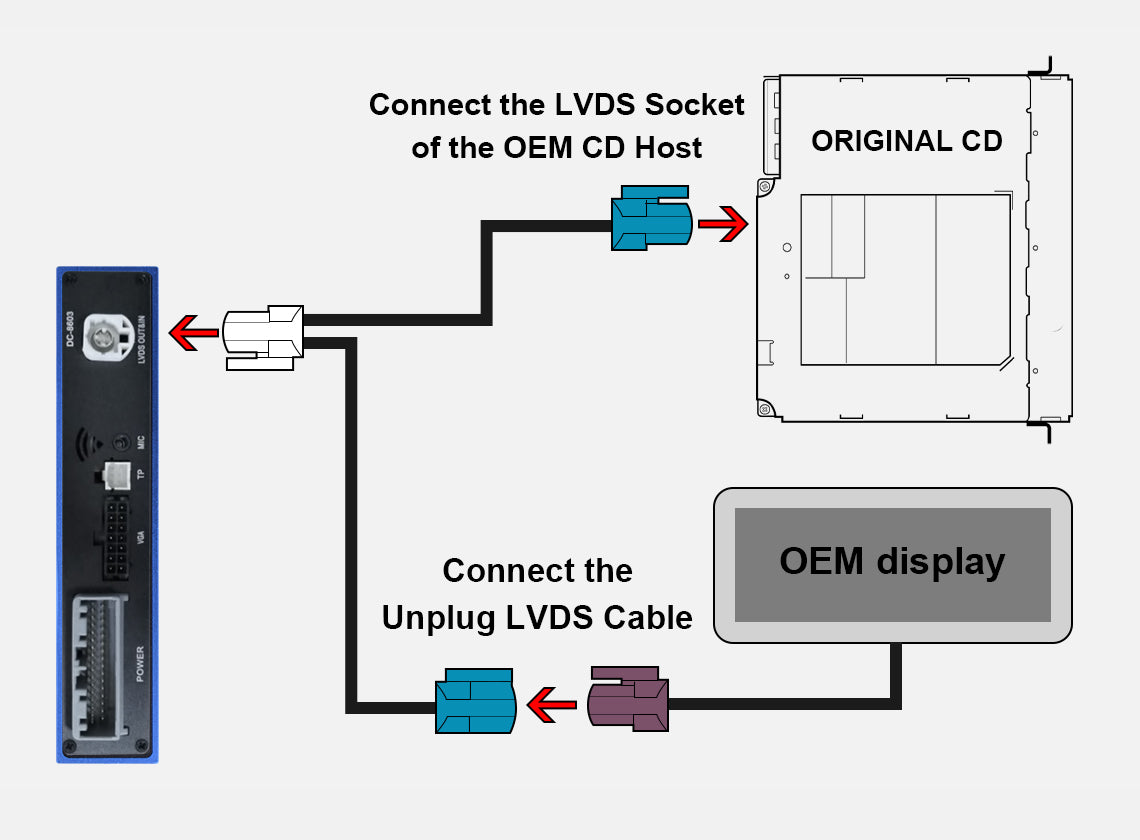

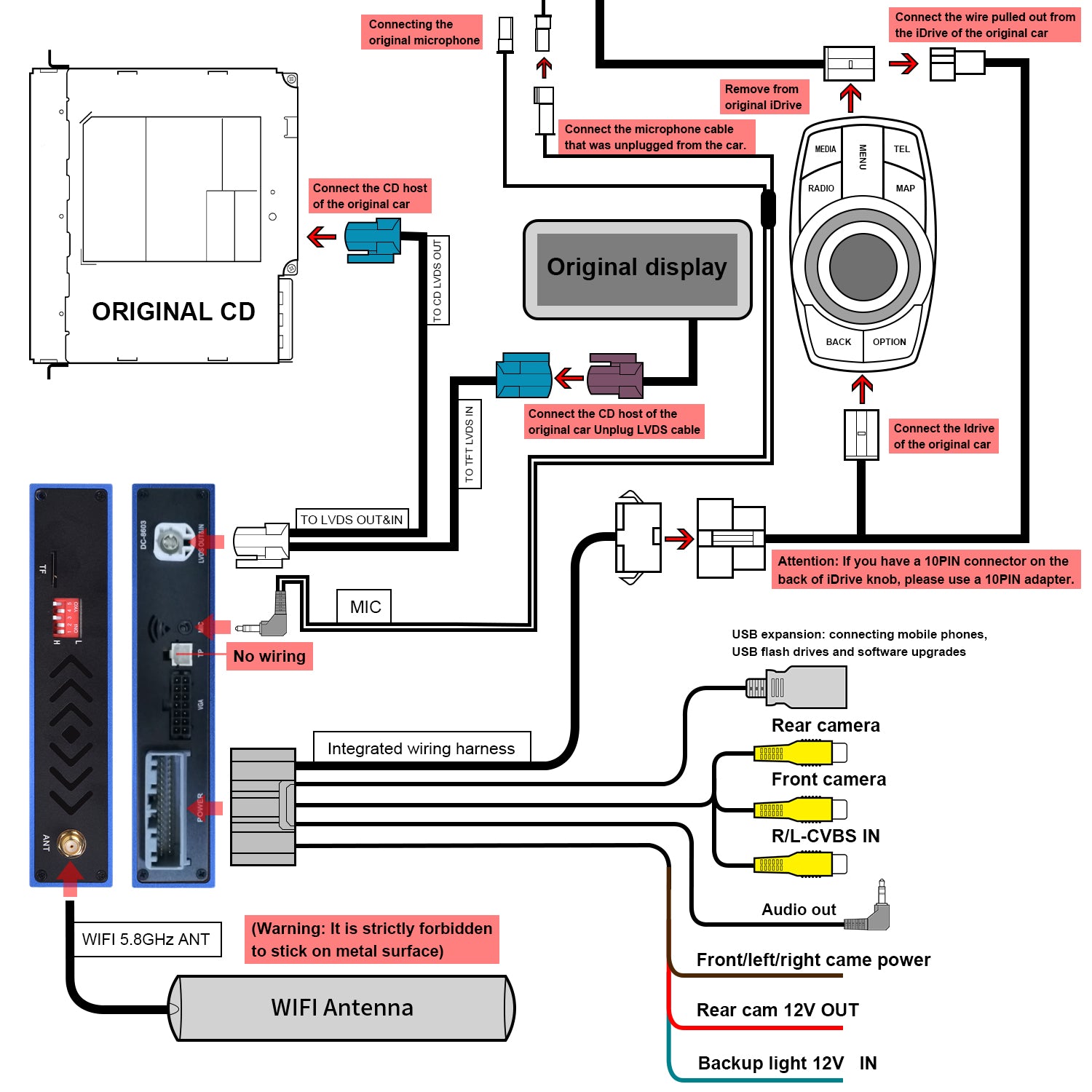

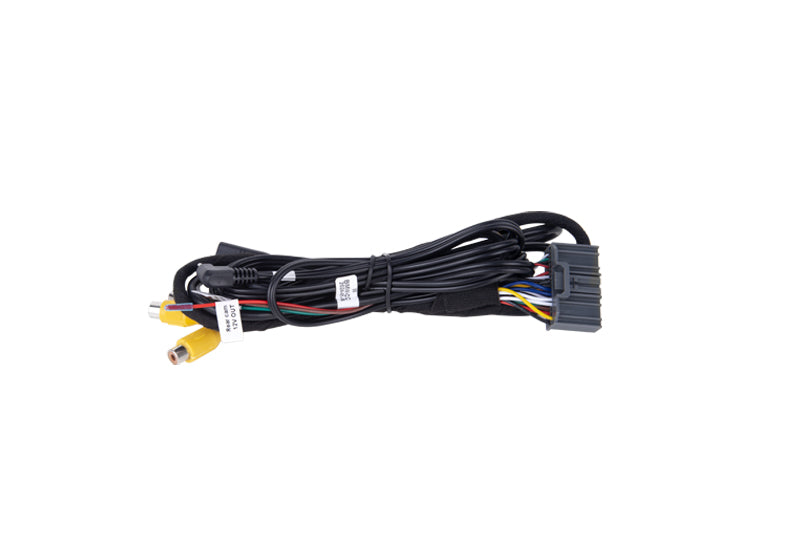

How to Connect The Power And The LVDS Cable

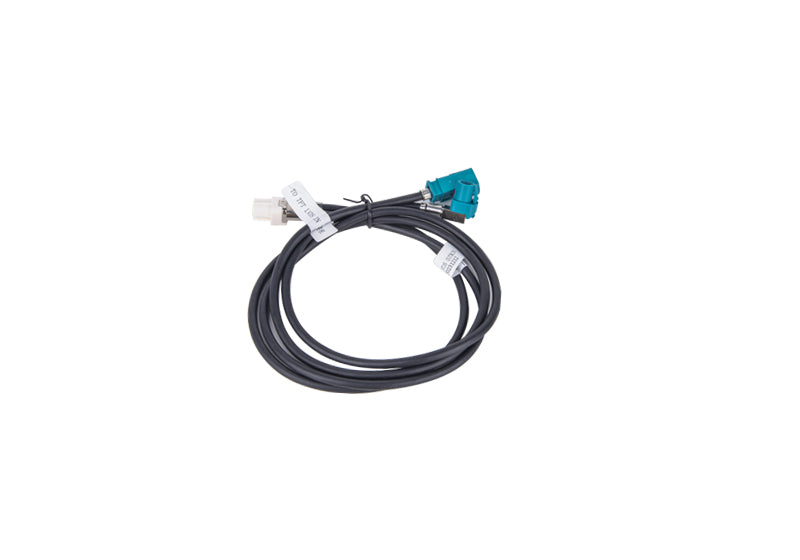

A. Please remove the LVDS cable from the back of the OEM radio and connect it to the PEMP LVDS green female socket.

Also plug the male PEMP LVDS plug into the OEM radio.

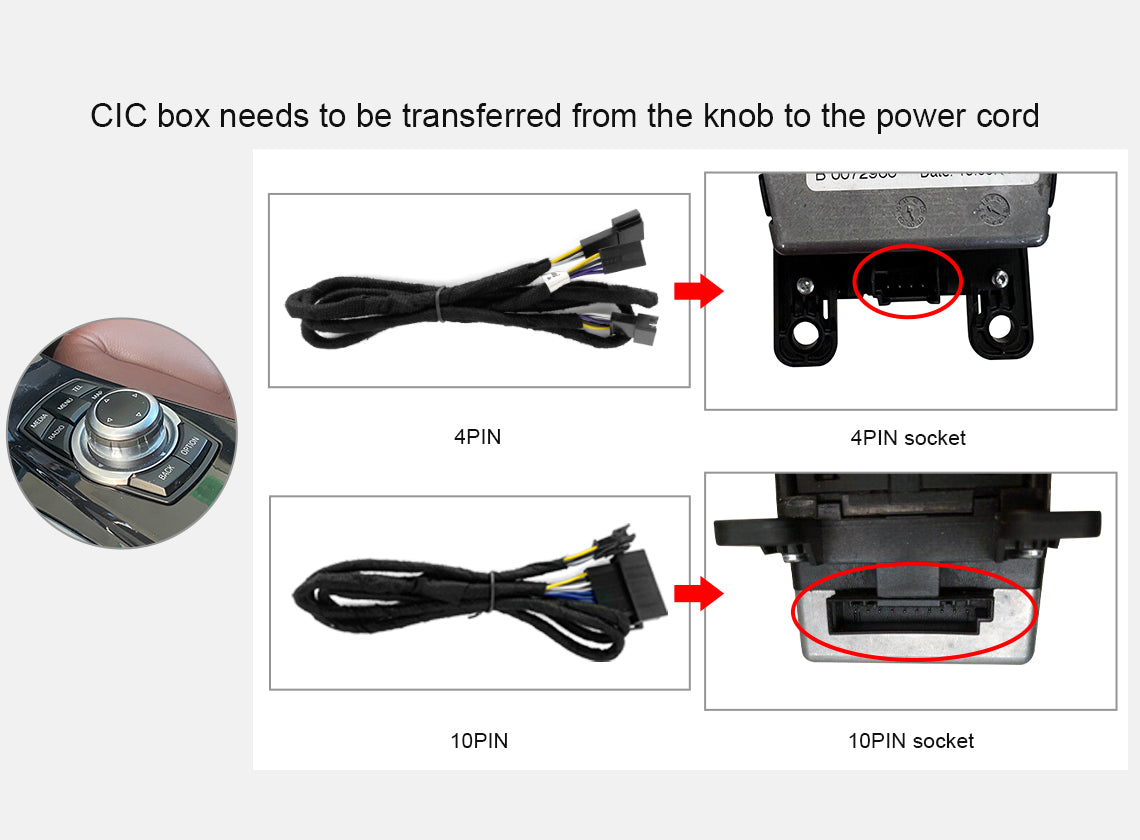

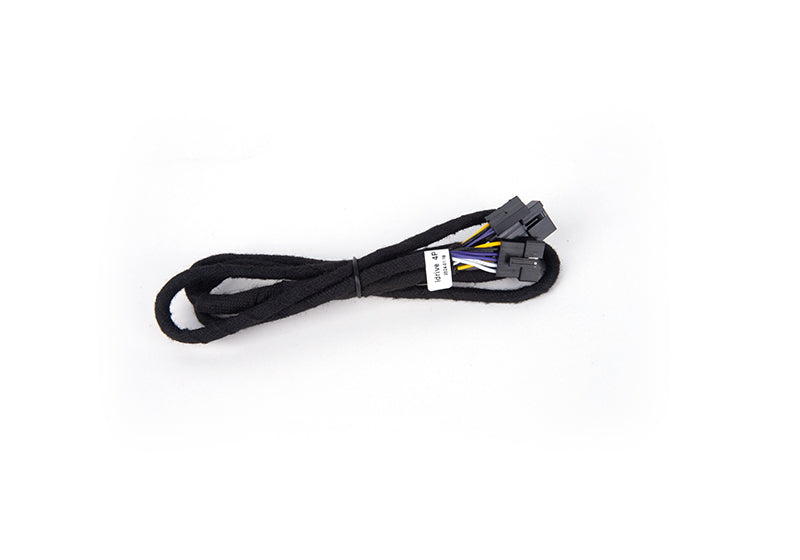

B. If your knob connection socket is 4PIN, use a 4PIN adapter cable.

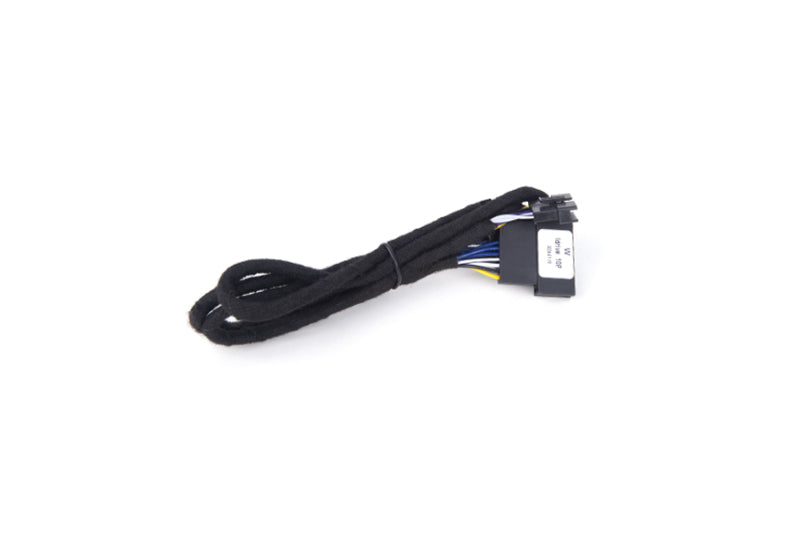

If your knob is connected to a 10PIN socket, use a 10PIN adapter cable.

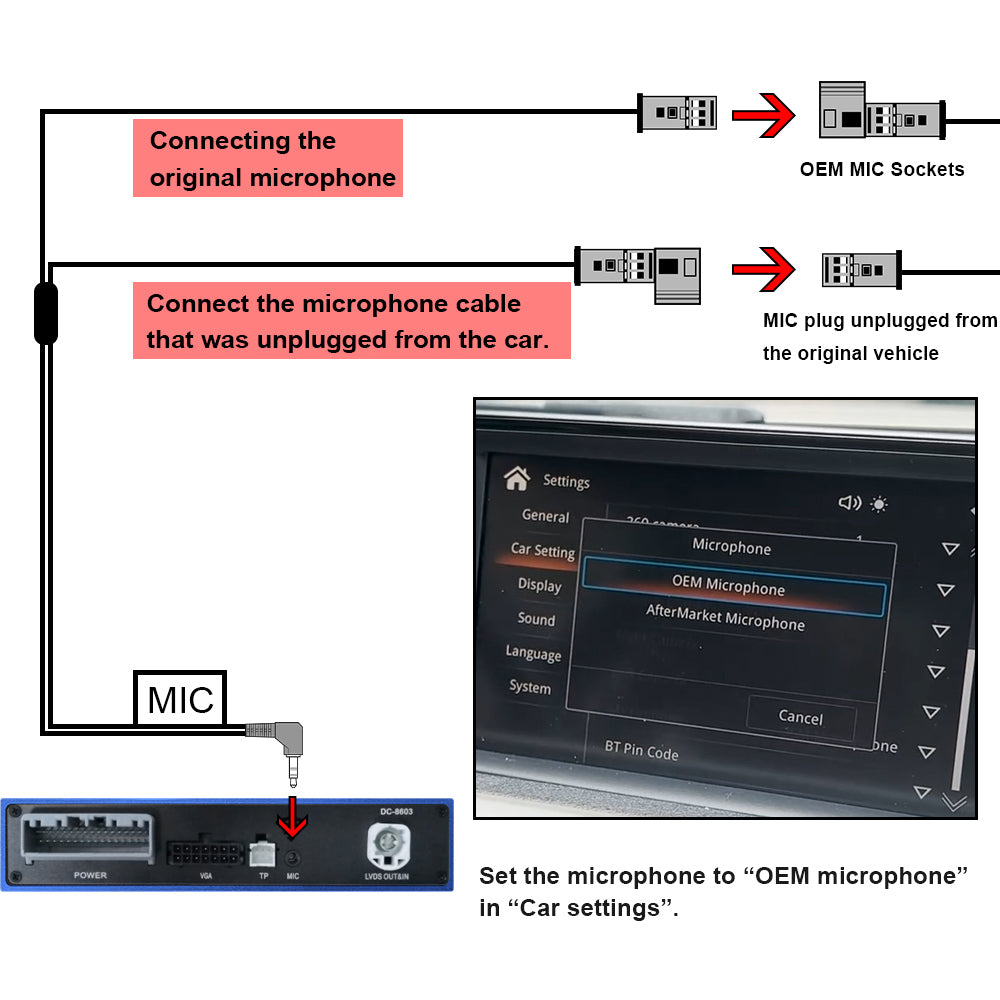

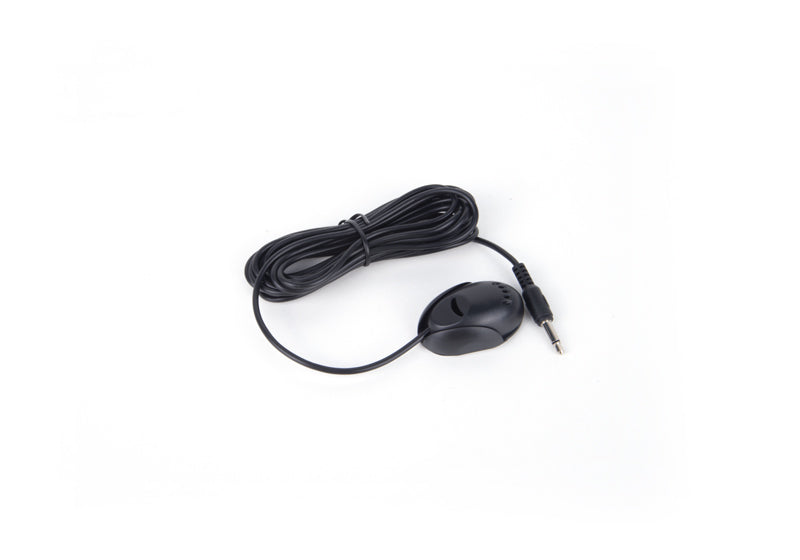

Support The OEM Microphone

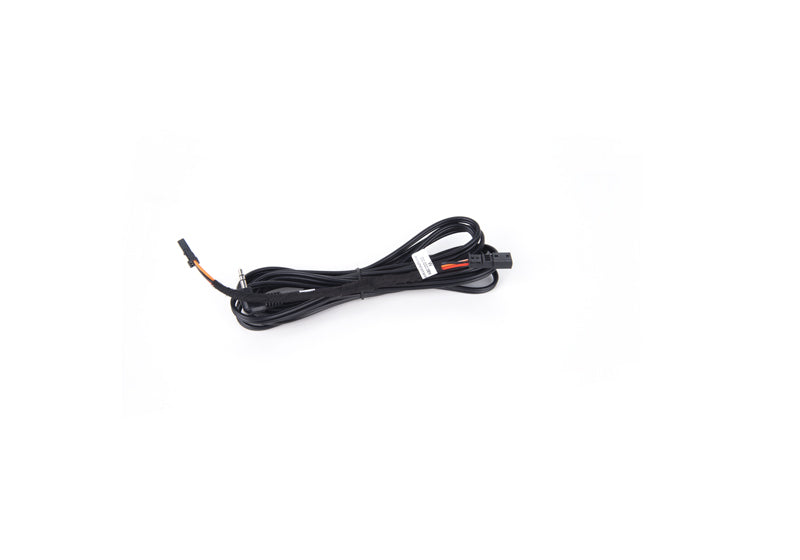

1. If your car has the OEM microphone, you need insert the mic cable of the iso harness to the MIC Socket on the box;

2. Disconnect the original microphone cable from the socket and plug it into the MMI BOX harness.

3. Set the microphone to OEM microphone.

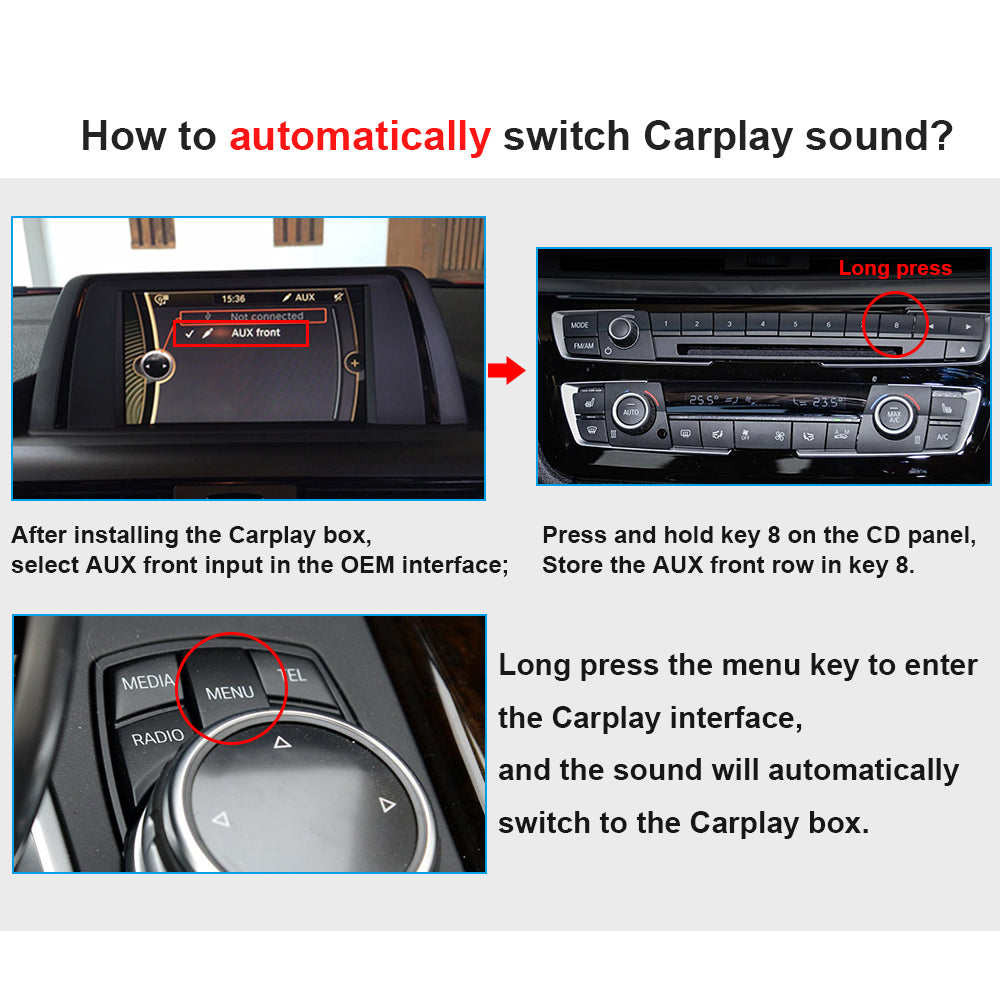

Auto Switch Carplay Sound When You Into Carplay Interface
You set the carplay sound auto switch:

step1-Select the AUX front menu input on the OEM interface;

step2-Long press the No. 8 key on the panel; the AUX front row is stored in the No. 8 key.

step3-Press and hold the MENU button to enter the CarPlay interface, and the sound will automatically switch to the CarPlay box.

Setting The Camera On Your Manual Transmission Car
You can set the OEM camera or after-market Camera:

Settig>Car setting>Reversing Camera> you can choose the oem camera or after-market camera

If your car was Manual Transmission, you should set the Camera reversing mode, then you can get the reversing video.

Step:

1.Settings>car setting>Reversing mode> pls select 12V Active

2 Connect the "Backup light 12v in" wire to the rear light power wire.

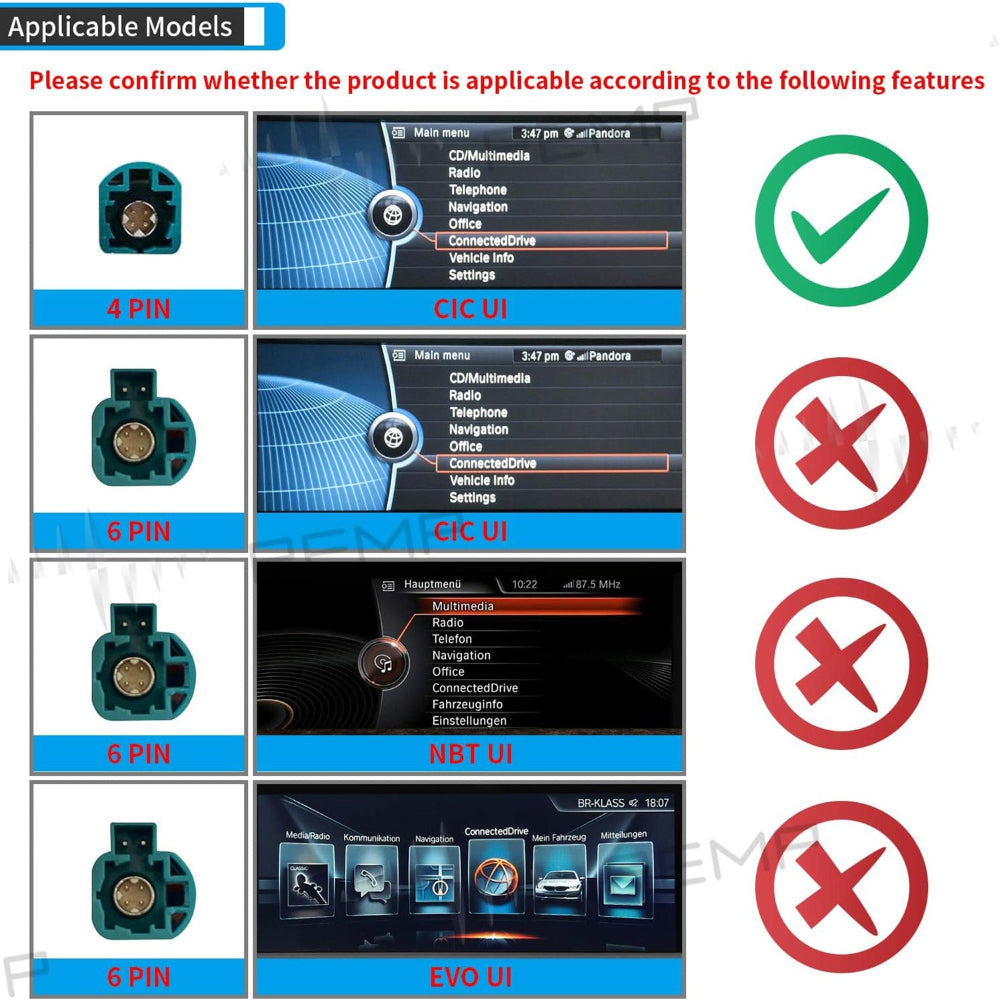

This CarPlay Box Only For BMW CIC System (Not work with the F06 F12 CIC)
This product is only suitable for BMW CIC System. There is a 4PIN LVDS at the back of the OEM screen. It does not support CCC 10PIN system and 6pin NBT system. If you buy the wrong system, you will not be able to install it.

Special attention:

This product is only suitable for the original display screen, and it is not suitable for rear mounted display.

Product function

Support wireless Carplay and Android auto functions;

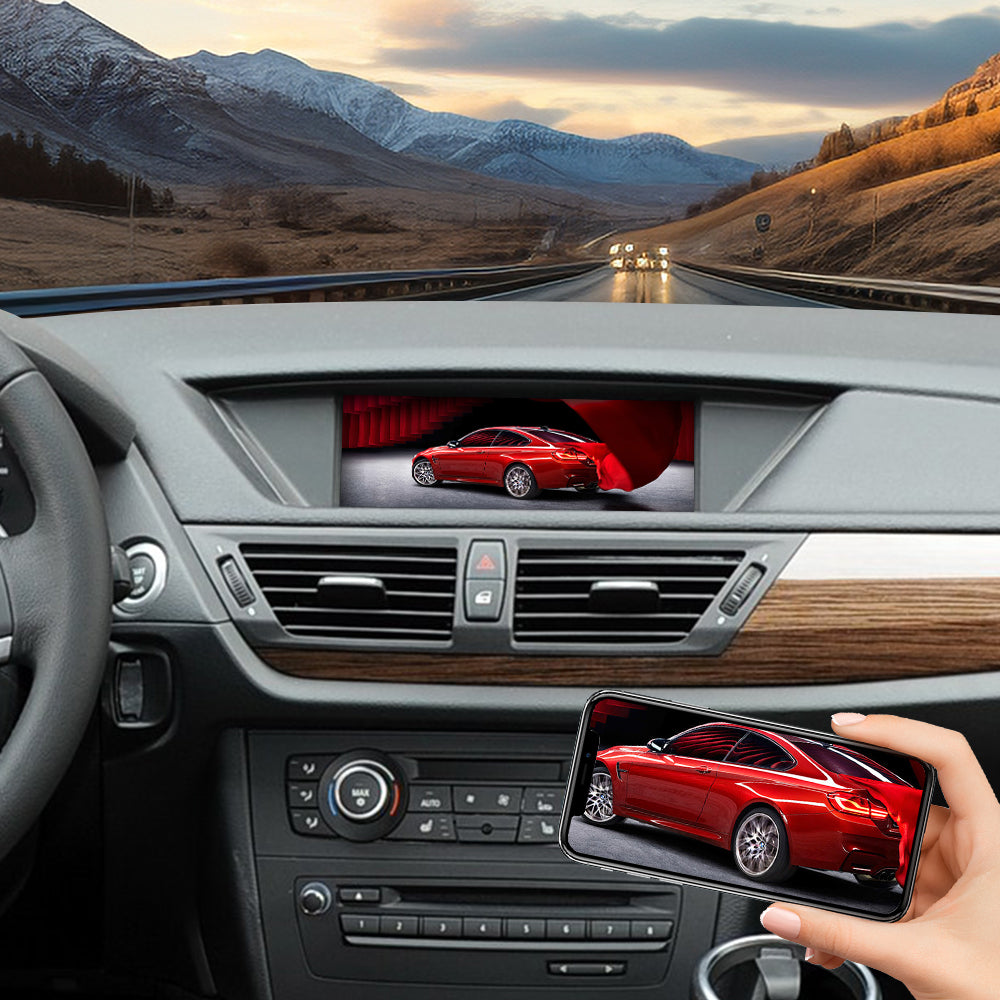

Support the wireless screen feeding function of Grasscarp mobile phone airplay;

The original vehicle information can be displayed normally by setting the 6.5/8.8/10.25 inch display screen of the original vehicle through the dial.

Support audio and video playback;

Support the original vehicle knob control and steering wheel key control;

Support for ahd 720p, 25/30 frame reversing camera input

Support CVBS format reverse camera input.
