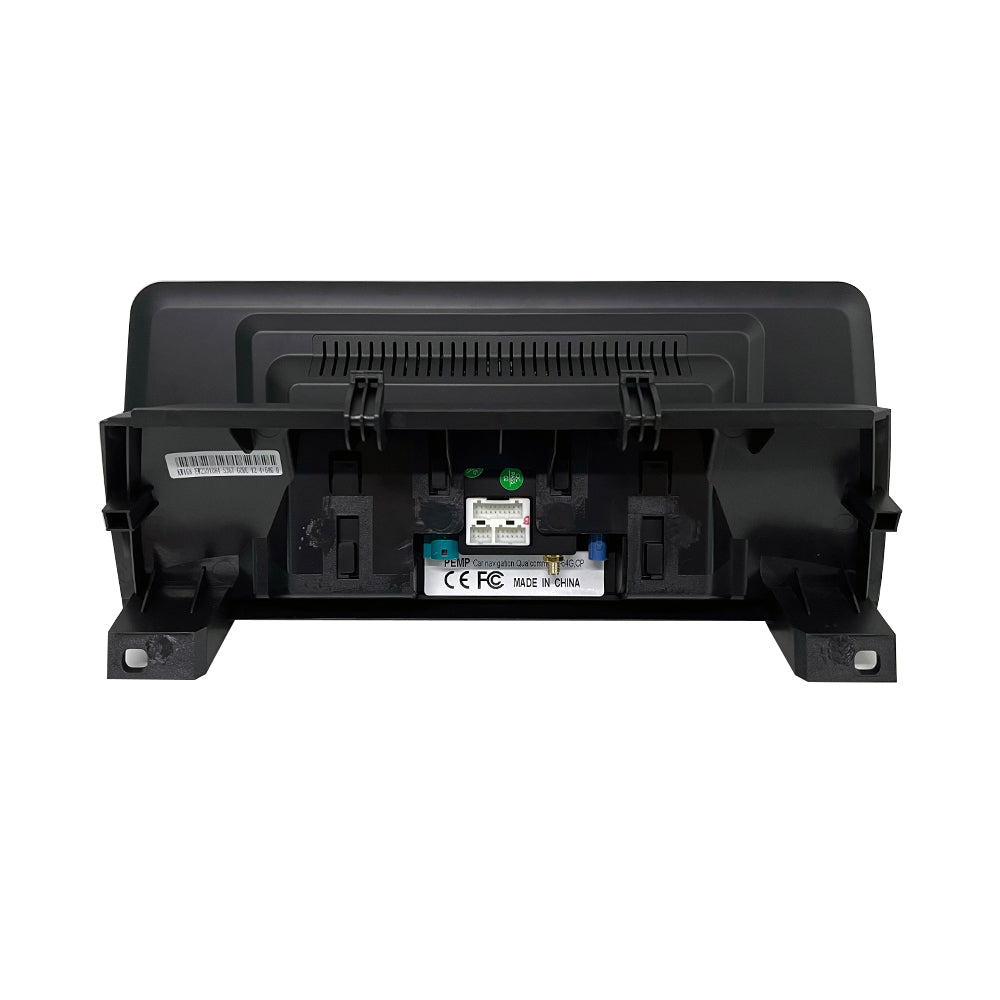

PEMP (5367) for BMW 7 Series F01 F02 NBT Vertical Android 14 Blue Anti-Glare Screen, IPS 12.3" HD Snapdragon 680 8core CarPlay Android auto Multimedia Player (2013-2015)

Prix habituel: $599.00
Prix soldé: $599.00
Prix habituel

Frais de port calculés à la caisse.

Only suitable for BMW NBT original car 6PIN LVDS system. Not suitable for EVO system.
The Product Has Built-In Wireless Car Play and Wired Android Auto.You can use OEM Bluetooth to get the sound of CarPlay or Android auto phone calls and music. The sound is not delayed and has good sound quality.
Qualcomm Snapdragon 680, SM6225 8 core processor, working frequency up to 2.4GHz; 8GB RAM and 128GB ROM; SM6225 uses 6nm process, low power and fast response.
Multi-Point Capacitive Touch Screen, 12.3 HD IPS Display Screen, Resolution Up To 1920 * 720; Matching With PEMP AHD Reversing Camera, The Reversing Picture Will Be Very Clear.
Using The SIM Card Holder Design Of The Mobile Phone, It Is Convenient To Take Out And Insert The SIM Card, So That You Can Enjoy The 4G High-Speed Network Immediately, 2.4G and 5.0G Two bands WiFi;

Configurations:

4GB RAM + 64GB ROM 8GB RAM + 128GB ROM 8GB RAM + 256GB ROM

Camera:

Without Camera With AHD Camera

Variantes de produits:

$19.90

$69.00

$29.00

Pay in installment: $661 /mth

Payment

1-Year Warranty

In stock! Ships within 1-2 business days.

Respond to questions within 12 hours.

Return to your nearest address. (USA and Europe)

Snapdragon 680 chip

Powered by Qualcomm Snapdragon 680/685 chip with 6nm process, 8-core processor. Android 13 Version. 8GB of RAM with 128GB of ROM, DDR4 Emmc UFS 2.2 can handle multitasking quickly without lagging.

Intelligent Interconnection

Support wired and wireless

Built-in Wired And Wireless Carplay For BMW F01 F02

You can use Apple Maps, iTunes, Spotify Music and other apps on your phone.

Built-in Wired And Wireless Android Auto For BMW F01 F02

You can use Google Maps, Spotify Music and other apps on your phone.

Built-in Wired And Wireless Mirror link For BMW F01 F02

You can mirror pictures or videos from your phone to your display through the Mirror Link program.

Product Features

12.3" Big Ips Touch Screen and Blue Light Anti-Glare

Use The 12.3" Big Ips Touch Screen

Use 12.3" big screen, the Resolution: 1920X720 Aspect ratio: 8:3, Viewing angle: 170 degrees

Blue Anti-Glared Technology

Use The Blue Anti-Glared Touch Screen to Absorb The Reflected Light And Make The Display Clearer. Multi Point G + G Capacitive Touch Prevents the Screen From Being Scratched And Makes It Easier To Clean.

Product Video

How to install BMW 7 Series F01 F02 Android screen

Product Installation and Setup

Approaches to common problems

Product Manual

The Wheel Knob Can Not Control The Android

Because the steering wheel knob of F01 02 CIC uses the optical fiber control mode, there is no such command in the Canbus data. So it can't control the previous and next track of Android.

Connect You Aux Audio Cable To The Armrest Box To Get Andorid Sound

The AUX of some models directly enters the audio amplifier, you must plug the audio cable (with accessories in the package) into the AUX interface in the armrest box to get the Android sound.

Move The Original Host Fiber Optic Cable To The Android Harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Android harness. Otherwise you can't get the car information and the Android sound. And it will be accompanied by a heartbeat wheezing sound.

Only For BMW NBT System (4+2 PIN LVDS)

This product is only suitable for BMW NBT system. There is a 6PIN LVDS at the back of the OEM screen. It does not support CIC 4PIN system. If you buy the wrong system, you will not be able to install it.

IN THE BOX

1× Android Screen

1× Base

1 x ISO Wiring Harness

1 x USB Cable

1 x Audio Cable

1 × GPS Antenna

1 × 4G Antenna

1 × User Manual

Reversing Camera (Only for With Camera option)

Frequently Asked Questions

Pre-Sales FAQ

Answer your pre-sales questions

PEMP screen products are abundant, if you want to buy the right PEMP screen for your car, you need to know which kind of OEM system your car has first.
Below we'll cover the differences and appearance of the 4 common BMW screen systems:
1. The CCC system is used in older models, with a simple display interface and four functions, communication, Climate, navigation and Entertainment, that can be distinguished at a glance.
The CCC LVDS cable is a 10 PIN LVDS cable:
2. The CIC system, with significantly more features than the CCC, is arranged in a vertical list. Maps, phone, radio, navigation, CD, etc. are available, and you can set options and view vehicle information at the same time.
The LVDS cable used in the CIC system is a 4 PIN LVDS cable:
The NBT system is still arranged in a vertical list and begins to have a connected driving function as well as a mobile office, and the system is more technological compared to the CIC detailing with highlights and shadows.
NBT uses a 6 PIN LVDS cable
2. The EVO is arranged horizontally for a richer functionality and an easily recognizable system UI.
EVO system still utilizes the 6 PIN LVDS connector.

This content describes in detail the difference between Android screen and LINUX, I believe you will have a clear understanding of them after reading all the content, and then according to your needs to buy the right screen for you.
You can also copy the video link to your browser off to see the detailed video tutorial:
https://youtu.be/wReZG_1Aajo
Or scan the QR code of the video to watch it:
Below is a general overview of the differences between the Android screen and the LINUX screen:
Points of difference:
Difference 1: Start-up speed difference
Android screen startup time is about 35 seconds,
LINUX screen startup time is about 9 seconds.
Difference 2: Price difference
Android screens are relatively expensive due to their functionality and highly regulated configuration.
LINUX screens are relatively simple in terms of functionality and configuration and are relatively inexpensive.
Difference 3: APP Download and Installation.
Android screen supports downloading APP and installing，
LINUX screen can't download APP and only supports using some APP by connecting Carplay and Android Auto.
Difference 4: SIM card and TF/SD card difference
Android screen has built-in SIM card and SD/TF card slot, support using SIM card network and TF/SD card memory expansion.
LINUX screen has no SIM card and SD/TF card slot, does not support SIM card and TF/SD card function.
Difference 5: Built-in navigation .
Android screen with built-in navigation, support for connecting GPS antenna, you can use the navigation directly without connecting the phone.
The LINUX screen does not have built-in navigation and does not support the connection of a GPS antenna; navigation must be used through the phone with Carplay and Android Auto connected.
Difference 6: Memory Difference
Android screens support the selection of memory configurations.
LINUX screens do not support the selection of memory configurations.
Difference 7: Antenna and installation difficulty.
Android screen support GPS and SIM card, standard equipped with GPS and 4G antenna, the installation of the GPS and 4G antenna need to find the location of the installation and the location of the cable, the difficulty of installation is relatively difficult.
LINUX screen does not support GPS and SIM card, do not need to install GPS and 4G antenna, the difficulty of installation is relatively easy.
Difference 8: CPU difference
Android screen uses a Qualcomm processor,
LINUX screen uses a Sunplus processor.
Difference 9: Aftermarket Reverse Camera
Android screen supports installation of 1080P and 720P AHD/CVBS aftermarket reversing cameras.
LINUX only supports to install 720P aftermarket reversing camera.
Similarities:
Similarity 1: Intelligent Connectivity
Both Android and LINUX screens support wireless and wired Carplay & Android Auto connectivity.
Similarity 2: Dual system switching
Both Android and LINUX screens support OEM systems as well as quick switching between corresponding aftermarket systems (Android/LINUX).
Similarity 3: Camera and Radar .
Android screen and LINUX screen both support OEM reverse camera and radar display.
Android screen and LINUX screen both support installation of aftermarket reverse camera.
Similarity 4: Same screen specs.
Both the Android screen and the LINUX screen use touchscreens of the same size and resolution.

After-Sales FAQ

Answer your pre-sales questions

If you experience abnormal sound problems, you can check the screen and cables one by one by following the steps in this document.
You can also copy the video link to your browser off to see the detailed video tutorial:
https://youtu.be/QKJVoJlUpiU
Or scan the QR code of the video to watch it:
Step 1: Click CAR INFO on PEMP home page to enter the OEM system, check whether the OEM system can be displayed normally.
Step 2:If the OEM system displays abnormally, refer to the documentation on how to handle abnormal OEM system displays or contact Customer Service.
Step 3: If the OEM system displays properly,press the FM/AM button and check that the radio is producing sound.
Situation A: If there is no sound from the radio after pressing the FM/AM button .
Please refer directly to the method of B-7 and B-8 in case B to check your cables.
Situation B: If the radio sounds when the FM/AM button is pressed .
B-1: If there is sound coming from the radio, click Multimedia-External Devices, then select Multimedia Mode as AUX Front.
B-2: If you are connected to OEM Bluetooth, disconnect OEM Bluetooth and delete the connection history.
B-3: Set AUX auto switching to off.
If you have a Qualcomm 680/685 screen, the setup path is Settings - System - AUX Settings.
If you have a Qualcomm 662/8953 screen, the setup path is Settings - Factory - 070305 - Vehicle - AUX Switching Modes.
B-4: The default sound of AUX mode is rather low, please try to adjust the sound greatly by using the sound adjustment knob.
B-5: Connect one end of the supplied AUX cable to the AUDIO OUT port on the IOS harness; The other end connects to the car's AUX IN (usually located at the armrest box).
B-6: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness.
B-7: Check the ISO harness plugs and re-unplug and re-insert the plugs .
B-8: Check the power cable and LVDS cable on the back of the screen and unplug and re-plug them.

If you are experiencing problems with your OEM system displaying anomalies, you can check your screen and cables one by one by following the steps shown in this document.
You can also copy the video link to your browser off to see the detailed video tutorial:
https://youtu.be/dxED9pfNt08
Or scan the QR code of the video to watch it:
Step 1: Press the FM/AM button and check the radio for sound .
A: If you can hear the FM sound, please go to the PEMP system homepage, click “Settings” - “Factory Settings” - "070305" - "Vehicle display" and "CAN Protocol" , and select the vehicle protocol and resolution Select the option that corresponds to the OEM system.
B-1: If the OEM screen still doesn't display properly or you can't hear the FM sound, you need to check if there is a fiber optic cable on the plug of the OEM ISO harness, and if there is, you need to transfer it to the PEMP ISO harness.
B-2: Because the plug is designed to be tight in order to prevent the plug from loosening, it is easy for the ISO plug to not be inserted to the end and have poor contact.
Therefore, we need to unplug the ISO plug, and then re-insert it, you can use a little force when inserting, please make sure that the plug is completely inserted to the end.
B-3：Then check the LVDS cable behind the screen and the white power plug.
As some cars have less space to install the screen, it is easy for the cable to be squeezed, which can lead to loose plugs and poor contact.
So we need to unplug and re-plug the cable and make sure it is fully inserted and that it is not pinched when installing the screen.
