Complete Installation Guide: Upgrading Your Mercedes C-Class W205 to a 12.3" Android CarPlay Screen

Introduction

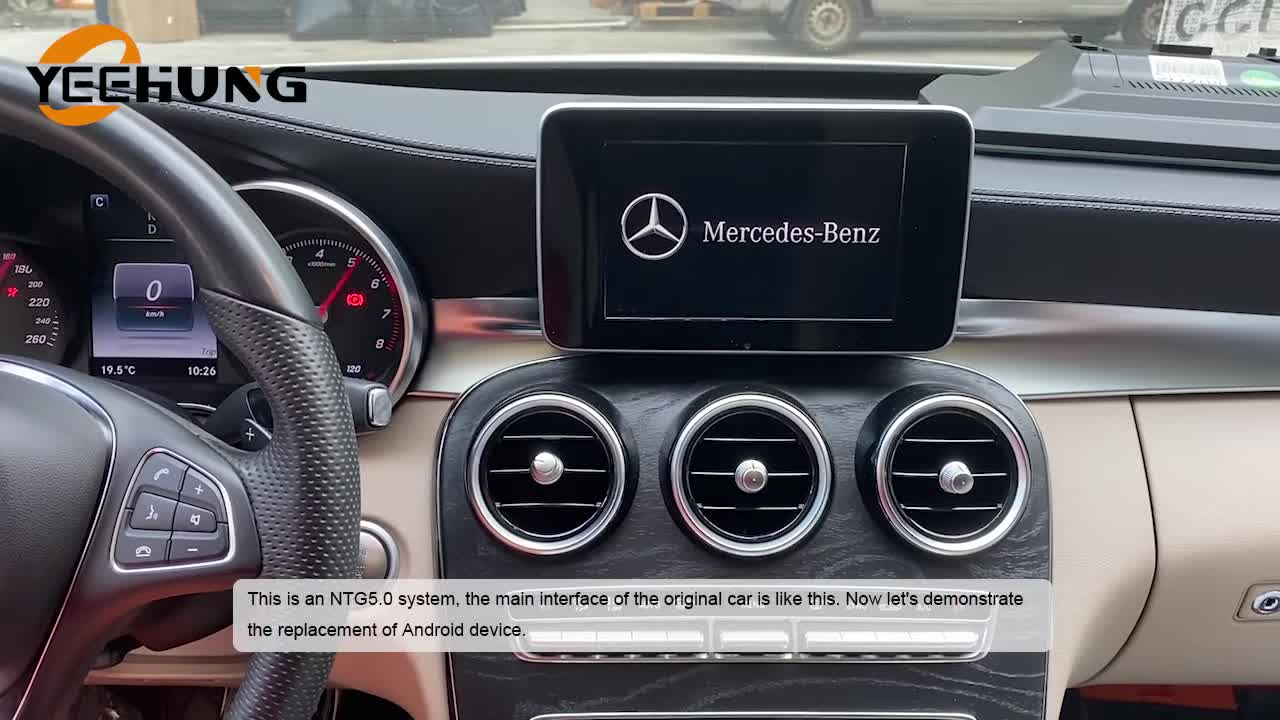

Are you tired of your Mercedes C-Class W205's outdated infotainment system? The factory NTG5.0 system, while functional, lacks the modern connectivity features that today's drivers expect. This comprehensive guide will walk you through upgrading to a cutting-edge YEEHUNG 12.3" Android CarPlay screen that transforms your driving experience.

This upgrade brings numerous benefits to your Mercedes C-Class W205 or GLC X253:

• 🚗 Wireless Connectivity: Enjoy seamless wireless CarPlay and Android Auto functionality
• 📱 Large HD Display: 12.3-inch high-definition screen with 1920x720 resolution
• ⚡ Powerful Performance: Qualcomm Snapdragon 662 processor with 6GB RAM + 128GB storage
• 🔧 OEM Integration: Retains all original vehicle functions and steering wheel controls

This guide provides detailed, step-by-step instructions with professional photography to ensure a successful installation. Whether you're a seasoned DIY enthusiast or a first-time installer, you'll have everything needed to complete this upgrade safely and effectively.

What You'll Need

🛠️ Required Equipment

• YEEHUNG 12.3" Android Screen (Available with Snapdragon 662 or 685 chip options)
• Basic Tools:
  • Plastic prying tools (rockers)
  • Phillips head screwdrivers (various sizes)
  • Precision tweezers
  • Wire threading tools
  • Electrical tape
  • Digital camera or smartphone (for documenting connections)

⏱️ Time Estimate: Allow 2-3 hours for complete installation. Take your time and work methodically to avoid damaging delicate trim pieces.

⚠️ Important: This installation requires removing significant portions of the dashboard. Ensure you have adequate workspace and proper lighting before beginning.

Product Features

The YEEHUNG 12.3" Android CarPlay screen represents the pinnacle of aftermarket infotainment technology. Here's what makes this upgrade exceptional:

Display Technology

• 12.3-inch Capacitive Touch Screen: Large, responsive display with multi-touch support
• 1920 x 720 HD Resolution: Crystal-clear visuals with excellent viewing angles
• Anti-Glare Coating: Reduces reflections and improves visibility in bright conditions

Connectivity Options

• Wireless CarPlay: Connect your iPhone automatically when you enter the vehicle
• Wireless Android Auto: Seamless integration with Android devices
• Wired Connections: USB ports for direct device connection
• Mirrorlink Support: Screen mirroring capabilities for compatible devices

Performance Specifications

• Processor: Qualcomm Snapdragon 662 8-core processor (685 option available)
• Memory: 6GB RAM for smooth multitasking
• Storage: 128GB internal storage for apps and media
• GPS: Built-in GPS with high-sensitivity antenna
• 4G Connectivity: Optional cellular connectivity for internet access

Mercedes Integration

• OEM Function Retention: All original vehicle functions remain operational
• Steering Wheel Controls: Full compatibility with factory controls
• Command Knob Support: Original rotary controller works with Android system
• Vehicle Information: Integration with car's diagnostic systems

Step-by-Step Installation Process

Before You Begin: Disconnect the vehicle's battery negative terminal and allow the system to fully power down. Take photographs of all connections before disconnecting them.

Step 1: Removing the Original Display Screen

Begin by carefully removing the original NTG5.0 display screen from the dashboard:

1. Use a plastic prying tool to carefully remove the dust net around the central horn area
2. Locate and remove the two Phillips head screws securing the original display screen
3. Gently pull the display screen outward from the dashboard
4. Disconnect the power cord and LVDS (video) cable from the back of the screen
5. Set the original screen aside in a safe location

Step 2: Dismantling the Central Control Panel

Access to the host unit requires removing the entire central control panel:

1. Open the central armrest box completely
2. Use prying tools to carefully remove the trim panel around the armrest
3. Remove the two Phillips head screws securing the central control panel
4. CRITICAL: Photograph all wire connections before proceeding
5. Carefully disconnect all wiring harnesses behind the central control panel
6. Lift the entire panel (including wood trim and touchpad) away from the dashboard

Step 3: Removing the Original Host

With the control panel removed, you now have access to the original head unit:

1. Remove all screws securing the original host unit to the dashboard
2. Carefully slide the host unit out of its mounting bay
3. Disconnect the IF (interface) plug from the back of the host unit
4. Note the orientation and position of all connections for reassembly

Step 4: Threading New Harnesses

Now you'll route the new wiring harnesses from the host location to the display area:

1. Using threading tools and electrical tape, carefully route the ISO harness through the center console
2. Thread the RCA harness (which includes video connections) along the same path
3. Ensure both harnesses reach from the host unit bay to the display screen location
4. Use electrical tape to secure and protect the wiring during routing
5. Avoid sharp edges and moving parts that could damage the cables

Step 5: Installing USB Sockets

The new system includes additional USB ports for device connectivity:

1. Route the USB extension cables from the dashboard area to the storage compartment
2. Position the USB sockets in an easily accessible location within the storage box
3. Ensure the cables have sufficient length and are not under tension
4. Test fit the USB connectors to ensure they're properly positioned

Step 6: Installing Antennas

Proper antenna placement is crucial for optimal GPS and 4G performance:

1. Open the side cover of the storage box using a prying tool
2. Route the 4G antenna and GPS antenna cables through the storage box to the display area
3. Remove the protective backing from the double-sided adhesive on both antennas
4. Mount the GPS antenna on the dashboard near the A-pillar for optimal satellite reception
5. Position the 4G antenna away from other electronic components to minimize interference
6. Carefully tuck excess antenna cable into gaps above the storage box
7. Use a prying tool to press the exposed harness into dashboard gaps for a clean appearance

Step 7: Connecting ISO Harnesses

This step connects the Android system to the vehicle's electrical system:

1. Locate the ISO plug buckle on the back of the original host unit
2. Pull the buckle back and carefully remove the ISO plug from the original host
3. Connect the original host's ISO plug to the male connector of the Android ISO harness
4. Connect the female end of the Android ISO cable to the back of the original host unit
5. Ensure the plug is fully inserted and press the buckle to secure the connection
6. Reinstall the original host unit in its mounting bay
7. Secure the host unit with all original screws, ensuring it's properly seated

Step 8: Installing the New Android Screen

Now for the exciting part - installing your new Android display:

1. Connect the original display's LVDS cable to the Android LVDS cable on the RCA harness
2. Using precision tweezers, carefully remove the two mounting screws from the original display base
3. Install these screws onto the Android screen mounting base
4. Mount the Android screen base in the original display location
5. Place the two metal mounting clips onto the base
6. Connect all harnesses to the back of the Android device: 1. Android ISO harness; 2. 4G antenna cable; 3. GPS antenna cable; 4. RCA harness (video/audio)
7. Carefully position the Android device onto the mounting base
8. Secure the device with the rear mounting screw

alt: Installing the new Android screen onto its mounting base

Step 9: Final Assembly

Reassemble all components in reverse order:

1. Reconnect all wiring harnesses to the central control panel using your reference photographs
2. Carefully reinstall the central control panel, ensuring all connections are secure
3. Replace all mounting screws for the control panel
4. Reinstall the armrest box trim panels
5. Remove the two fixing screws from the central armrest box
6. Connect the audio output plug to the USB decoder in the central armrest box
7. Replace the armrest box screws
8. Ensure all trim pieces are properly aligned and secured

Step 10: Testing and Verification

The moment of truth - powering up your new system:

1. Reconnect the vehicle's battery negative terminal
2. Turn the ignition to the "ON" position
3. Verify that the Android device boots up normally
4. Test all functions: 1. Touch screen responsiveness; 2. Audio output; 3. Wireless CarPlay/Android Auto connectivity;4. GPS navigation; 5. Original vehicle functions (radio, climate control, etc.); 6. Steering wheel controls
5. Check for any error messages or warning lights
6. Verify that all original Mercedes functions remain operational

Pro Tips

📸 Documentation is Key

Take detailed photographs of every connection before disconnecting anything. This will save you hours of troubleshooting during reassembly.

🔧 Work Methodically

Remove and store screws in labeled containers. Keep track of which screws came from which locations, as they may be different lengths.

🚗 Protect Your Interior

Use soft cloths or towels to protect leather and trim pieces. Plastic prying tools prevent scratches and damage to delicate surfaces.

⚡ Test Before Final Assembly

Before fully reassembling everything, test the system functionality. It's much easier to troubleshoot issues with panels still accessible.

Important Safety Note: If you encounter any resistance when removing components, stop and reassess. Forcing parts can cause expensive damage to trim pieces or electronic components.

Troubleshooting Common Issues

• Screen doesn't power on: Check all power connections and ensure the original host unit is properly connected
• No audio output: Verify the audio output plug is connected to the USB decoder
• CarPlay/Android Auto not working: Confirm antenna connections and check that your device is compatible
• Original functions not working: Review ISO harness connections and ensure original host unit is properly seated

Upgrade Now, Drive Smarter

Congratulations! You've successfully upgraded your Mercedes C-Class W205 or GLC X253 with a state-of-the-art Android CarPlay system. This significant enhancement brings your vehicle's technology into the modern era while maintaining all original functionality.

What You've Achieved:

• Enhanced Connectivity: Wireless CarPlay and Android Auto for seamless smartphone integration
• Superior Display: 12.3-inch HD screen with crystal-clear visuals
• Modern Features: Access to Android apps, GPS navigation, and multimedia streaming
• Preserved Functionality: All original Mercedes features remain fully operational
• Increased Vehicle Value: A professional upgrade that enhances your driving experience

Purchase Options

Ready to upgrade your Mercedes? The YEEHUNG 12.3" Android CarPlay screen is available on Amazon with different processor options:

• Snapdragon 662 Version: Excellent performance for most users
• Snapdragon 685 Version: Enhanced processing power for demanding applications
• Linux Version: Alternative operating system option

Compatibility: This installation guide applies to both Mercedes C-Class W205 and GLC X253 models with NTG5.0 systems.
