PEMP (7L02) 12.3" 1920 x 720 Linux Carplay Android Auto Mirror Link for Mercedes Benz 2008-2011 C Class NTG4.0 Car Screen

$319.00
$319.00
Shipping calculated at checkout.
  1. [MODEL YEAR] Android 14 Screen for Mercedes Benz 2008 - 2011 C - Class (C180 C200 C230 C250 C260 C280 C300 C350). For W204 chassis with NTG4.0 System.

  2. [VERY IMPORTANT] Be sure to connect the power cord “VCC+12V” of the LVDS box to the “DVR POWER”, otherwise the OEM menu information cannot be obtained.

  3. [PLEASE NOTE] Because the AUX of NTG4.0 OEM main unit does not support automatic switching and needs to be switched manually, every time you start your car, if you want to use the AUX sound and Linux device sound, you need to manually press the "DISC" button on the OEM main unit by yourself first, and it switches to AUX status. At this time, click the screen to enter the Linux to use the sound.If your car has AMI or AUX port, please choose the corresponding cable to get Linux sound.

  4. [FEATURED FUNCTIONS] Supports wired & wireless CarPlay, Android Auto, and wireless Mirror Link. Features a 12.3" 1920x720 HD oversized display with multi - point capacitive touch. for quick response. Bluetooth 5.0 enables music playback during navigation. Once connected to the network, it supports online voice control.

  5. ​[MORE FUNCTIONS] Retains original car features like knob and steering wheel controls, radio, amplifier, factory knobs, rear - view camera with reverse trajectory. Built - in Wi - Fi and USB ports. Compatible with factory and aftermarket cameras. Supports Bluetooth music and call
$19.90
$39.90
Pay in installment: $661 /mth
Payment
MastercardVisaAmerican Express PayPalMaestroKlarnaJCBDiscover

  1. System: Linux
  2. CPU: 8368XU
  3. Main frequency: 1GHz
  4. Storage: SPI flash 1Gb
  5. Memory: DDR3 2Gb
  6. Resolution: 1920*720RGB
  7. Bluetooth Version: BT5.0
  8. Carplay/Android Auto: Wired/Wireless
  9. AirPlay Mirror link: Wired/Wireless
  10. USB Version: 2.0
  11. UI interface: Three Styles

1-Year Warranty
In stock! Ships within 1-2 business days.
Respond to questions within 12 hours.
Return to your nearest address. (USA and Europe)
You can get carplay android auto and miror link function

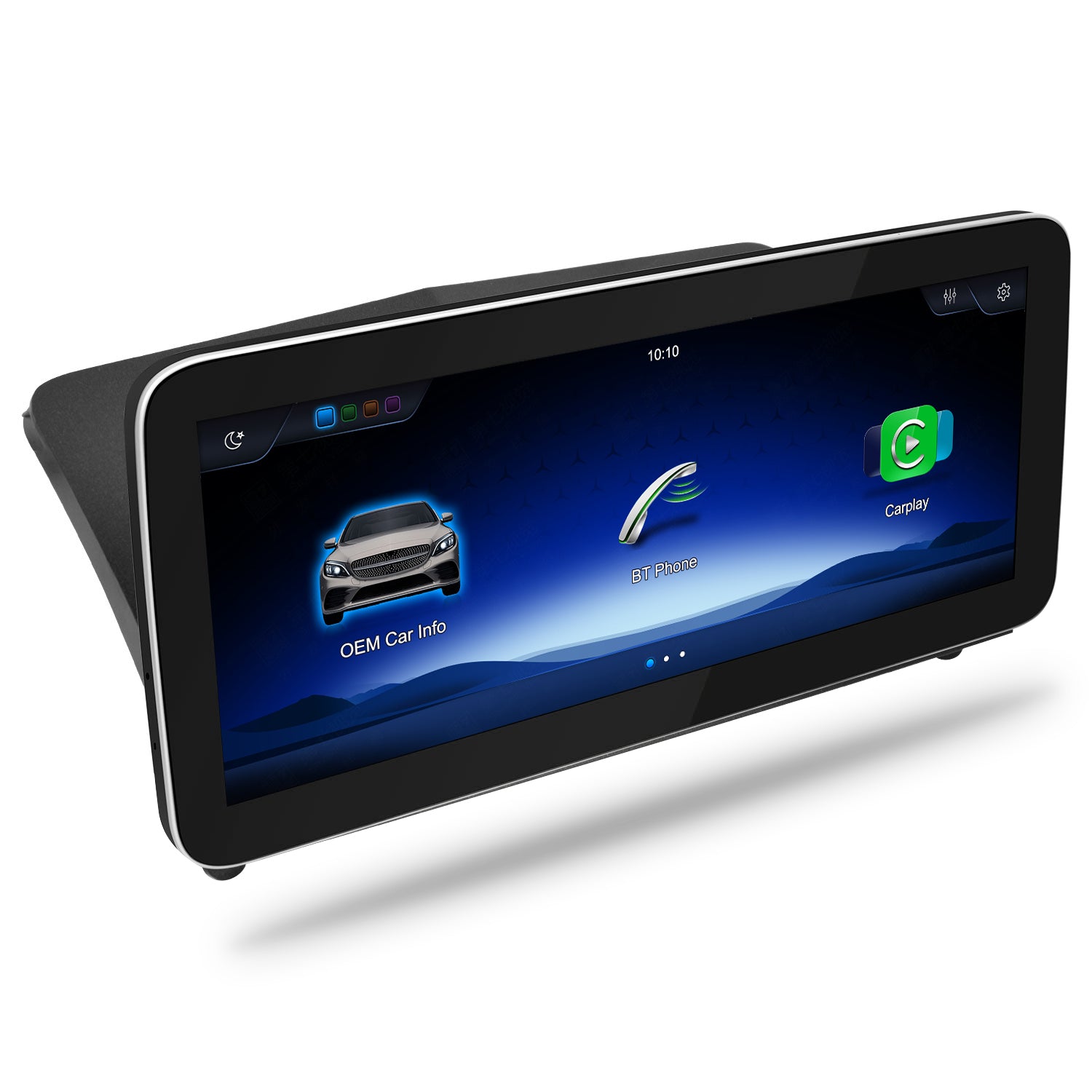

Using the 12.3-inch large IPS display, Resolution 1920x 720.

You can enjoy the online movie and video playback experience.

Read More

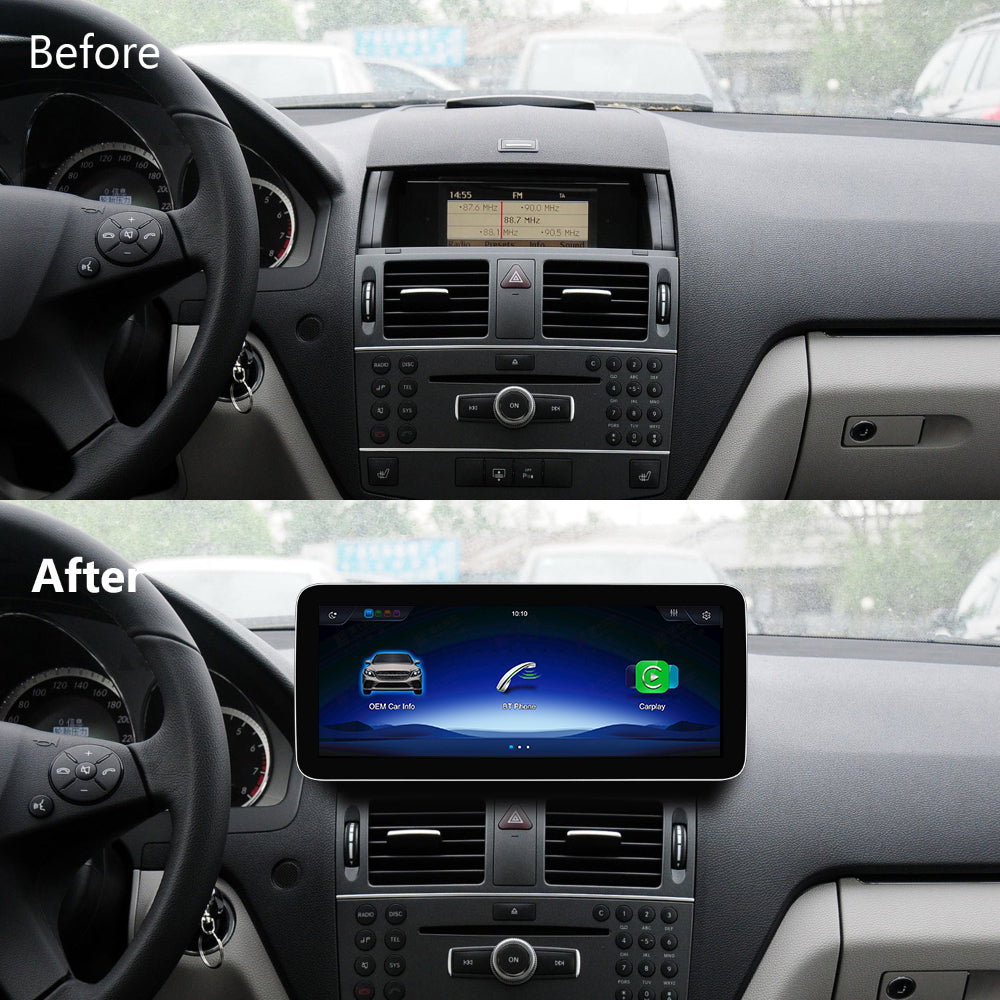

Replace the OEM screen with a large 12.3-inch riser style.

Replace the inline screen with the new standing screen

Read More

Intelligent Interconnection

Support wired and wireless

Support Wired/Wireless Apple Carplay

Built-in wired/wireless carplay function. You can use your phone app on PEMP screen, support touch control.

Built-in Wired/Wireless Android Auto Function.

You can use your phone app on PEMP screen, support touch control.

Built-in Wired/Wireless Mirroring Link Function.

You can mirror all the pictures of your mobile phone to PEMP screen.

LVDS cables and CAN protocol cables

Please check carefully before installation

How can I check if the CAN protocol cable interface of my car is connected correctly?

There will be different power cables due to different cable production batches and sometimes the white port connections between protocols are not accurate. Please make different connections depending on the white port type.

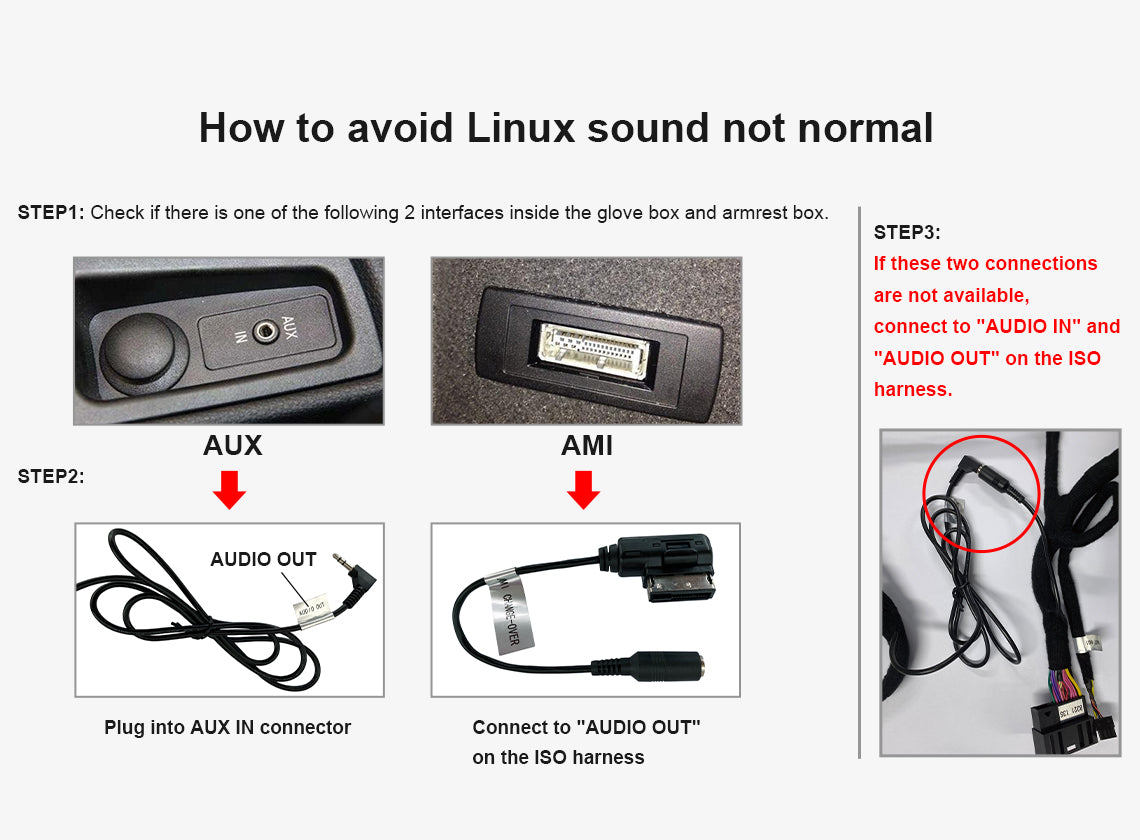

How to avoid Linux sound not norma

1.When your car has AMl, give priority to plug in the AMl audio cable. 2. lf it doesn't have AMl interface and has AUX input, you need to use the AUX audio out cable to connect.

Product Installation and Setup

Approaches to common problems

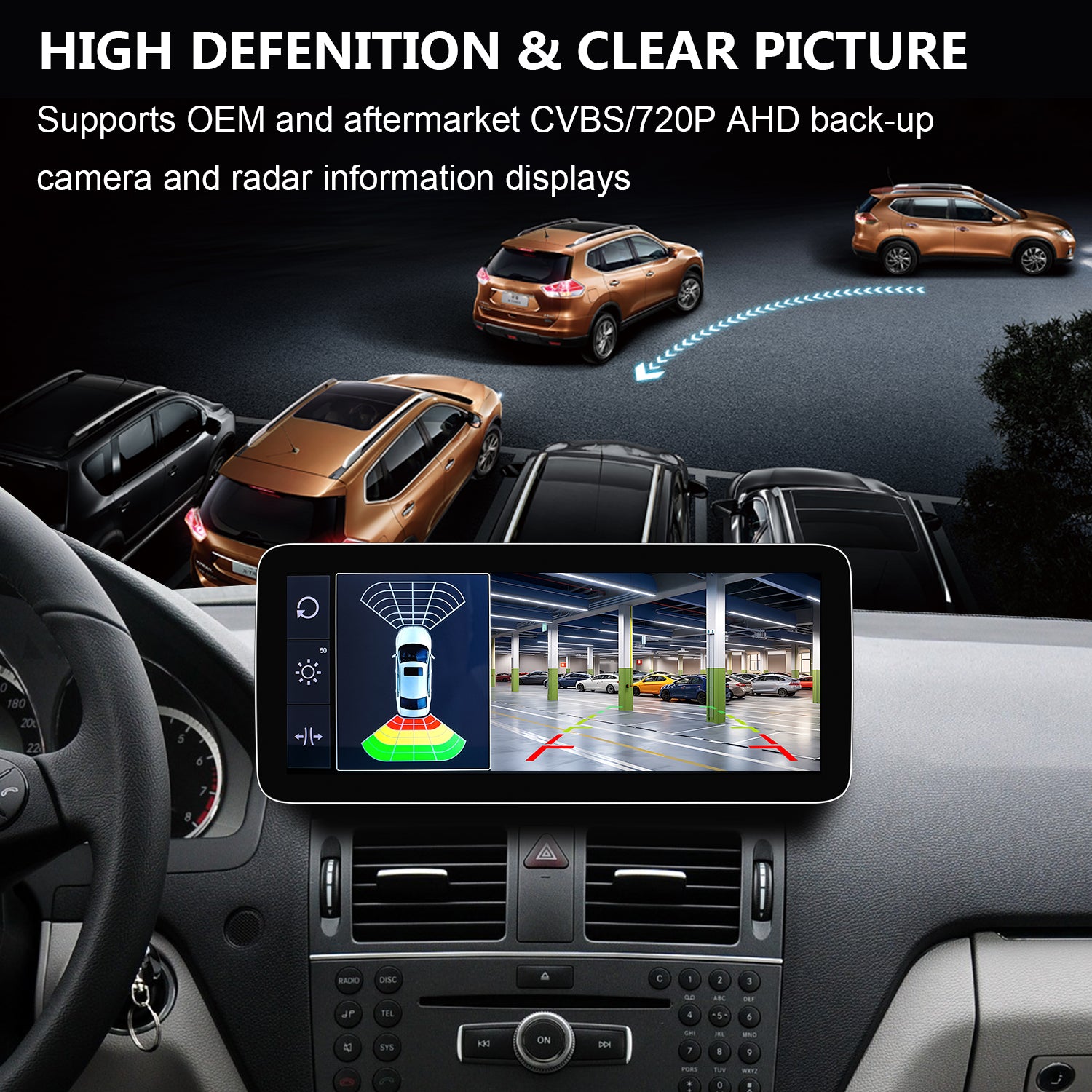

Support the OEM and After-market Camera

You can select the camera option in the settings the after-marketcamera only support CVBS or 720P AHD format

Support the OEM or after-market Camera

Please select the correct camera option within Settings Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Set the OEM Resolution

Please select the correct resolution for the OEM display with in the settings, other wise the OEM Car INFO may not display properly.Setup>Car Settings> Original Car's Screen Resolution> Select the item

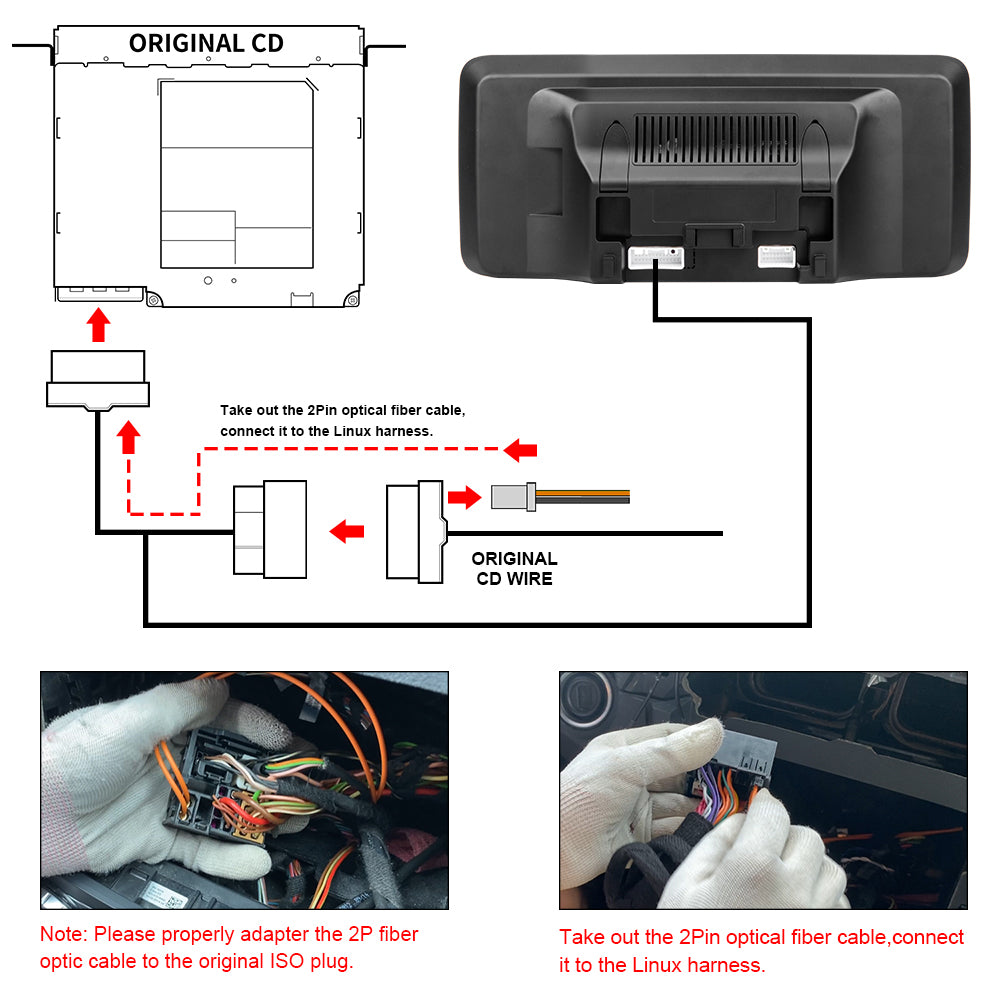

If the original host has a fiber optic cable, how do I transfer it correctly

Step 1: Unplug the 2P fiber optic cable from the original CD player, and remember the hole where the cable is located. Step 2: Insert the 2P fiber optic cable you just unplugged into the appropriate hole on the YEEHUNG ISO harness. Step 3: After the fiber optic cable is inserted, plug the ISO harness into the stock CD player. Step 4: Finally, you can just connect the ISO harness on the other end to the stock CD cable.
