PEMP Store

PEMP (5643) Ultra-Thin 12.3" Qualcomm Snapdragon 680 8 Cores Android Screen, for BMW X3 F25 CIC Android 13 Wireless and Wired CarPlay Android Auto Calls Using The OEM Microphone Monitor

PEMP (5643) Ultra-Thin 12.3" Qualcomm Snapdragon 680 8 Cores Android Screen, for BMW X3 F25 CIC Android 13 Wireless and Wired CarPlay Android Auto Calls Using The OEM Microphone Monitor

常规价格 $599.00 USD
常规价格 促销价 $599.00 USD
促销 售罄
结账时计算的运费

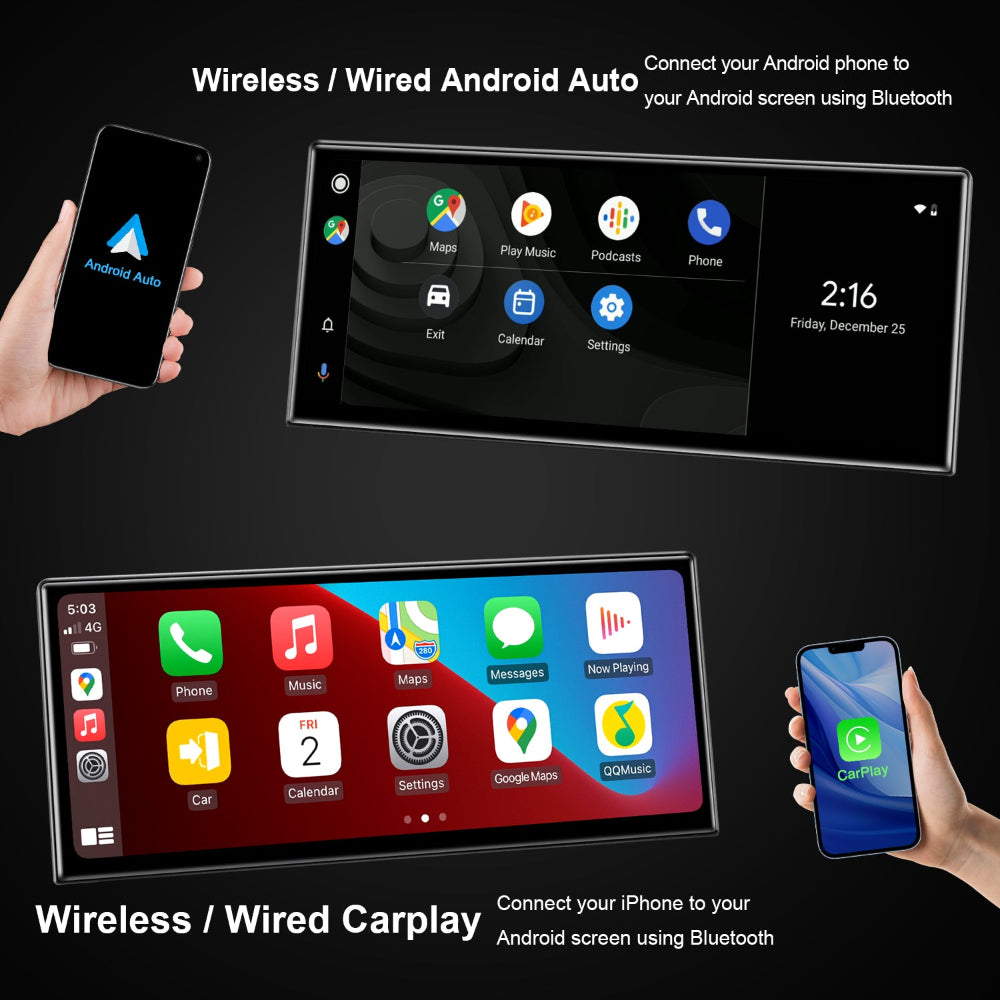

Built-in Apple CarPlay
Support the wired and wireless Apple CarPlay

Built-in Android Auto
Support the wired and wireless Android auto

Built-in Mirror Link
Support the wired and wireless Mirror Link Function

Metal Casing and Ultra-thin Panel
1. 13MM ultra-thin panel design, aluminum alloy material shell.

2. Narrow bezel process, screen ratio up to 82.3%.

12.3" Big Android Screen
Features a 12.3” IPS display. Wide viewing angle up to 170 degrees.

HD Resolution
High Resolution up to 1920X720RGB

High Screen-to-body Ratio
82.3% screen-to-body ratio using narrow bezels

0-pitch full lamination process and 2.5D touch screen
1. Adopting airless 0-pitch laminating process, the image is more realistic.

2. Using 2.5D touch screen edge processing. Smoother touch.

The SIM and MicroSD Slot on the TOP
The 4G card and SD card are designed on the top of the product, which is easy to dial and insert for replacement.

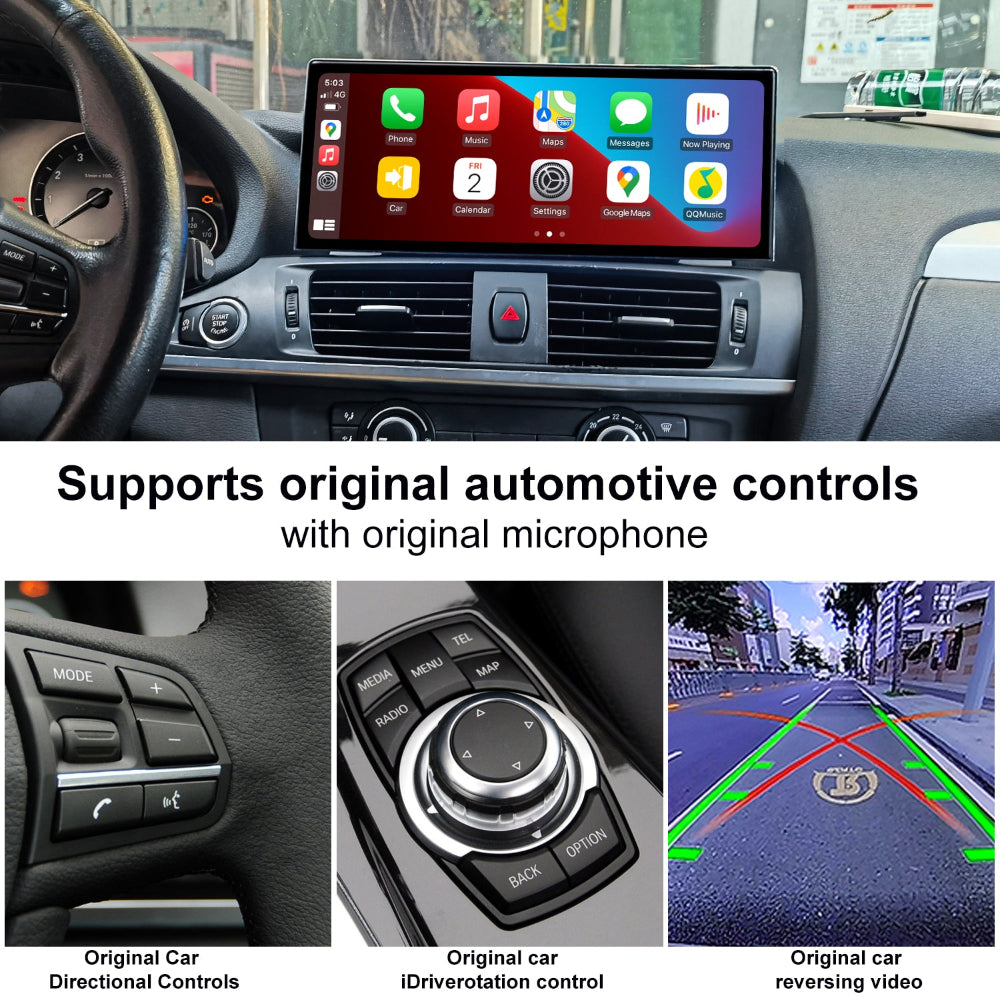

Support original steering wheel and button control.
You can use the original steering wheel and knob to control the Android system. Note that F10 F01 does not support steering wheel pulley up and down control.

Support the OEM Camera
You can make the OEM camera work with the Android screen by selecting the OEM Camera option within the settings.

You can get Better Call Quality with the OEM Microphone (no echo)

Step 1: Please select the external microphone and factory microphone option in the settings;

Step 2: Please remove the protective hose from the MIC IN connector on the ISO harness and connect it to the MIC IN on the USB harness.



Installation Notes

Moving the stock 2 green fiber optic wires to the android harness.
Be sure to move the stock 2 green fiber optic wires to the Android harness. Otherwise the maintenance information will not show up and you will not get the Android sound.

Connect the audio cable between the Android screen audio output and the car's AUX IN
You need to connect the audio cable between the Android screen audio output and the car's AUX IN if necessary. Only then you can get the sound of Android.

Manual transmission settings
If your car has a manual transmission, you need to select another gear in the factory settings. Otherwise you won't be able to get the stock camera image.

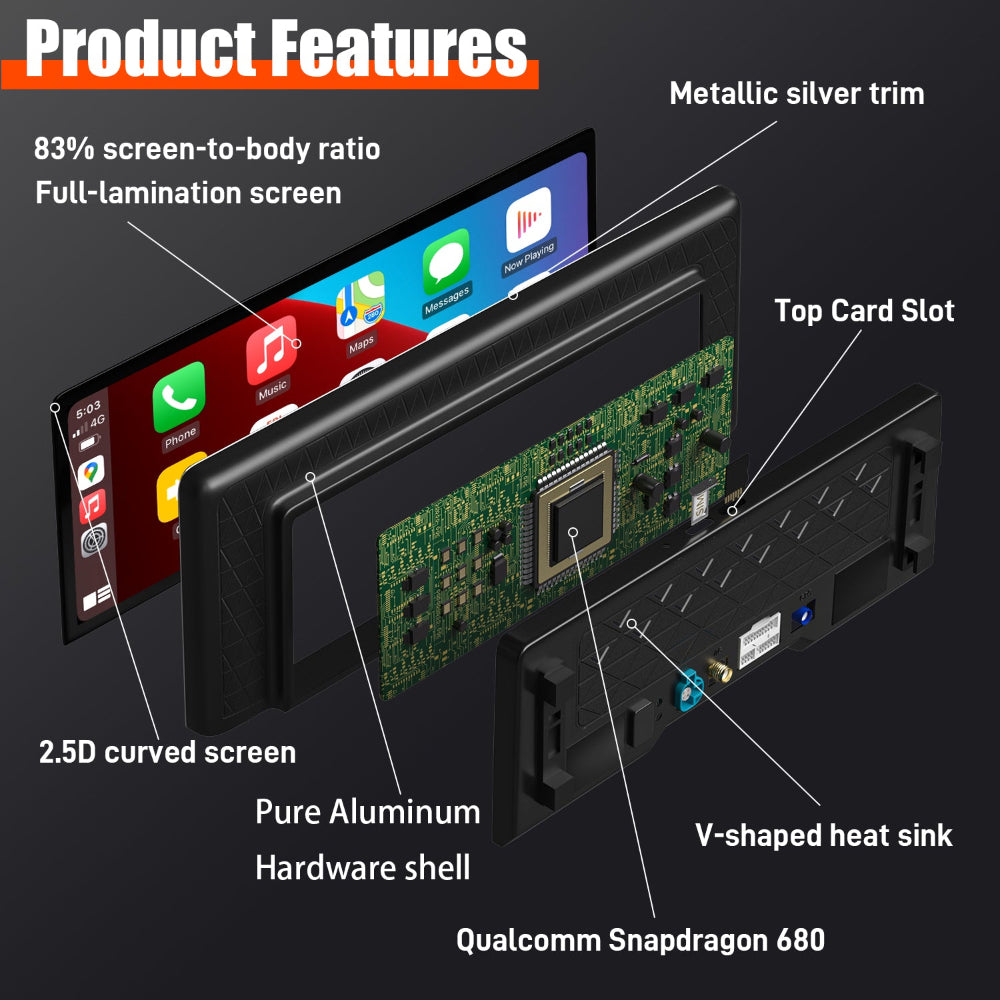

Product Features:
1. Using Ultra-thin process, the screen-to-body ratio reaches 82.3%, 12.3" large Android display; metal material shell and Non-Airgap process, the picture quality image is more realistic.
2. Supports wireless and wired CarPlay and Android Auto, you can use the original car microphone to make calls when using CarPlay and Android Auto. No echo and high quality sound.
3. Powered by Qualcomm Snapdragon 680 chip with 6nm process, 8-core processor. Android 13 Version. 8GB of RAM with 128GB of ROM, DDR4 Emmc UFS 2.2 can handle multitasking quickly without lagging.

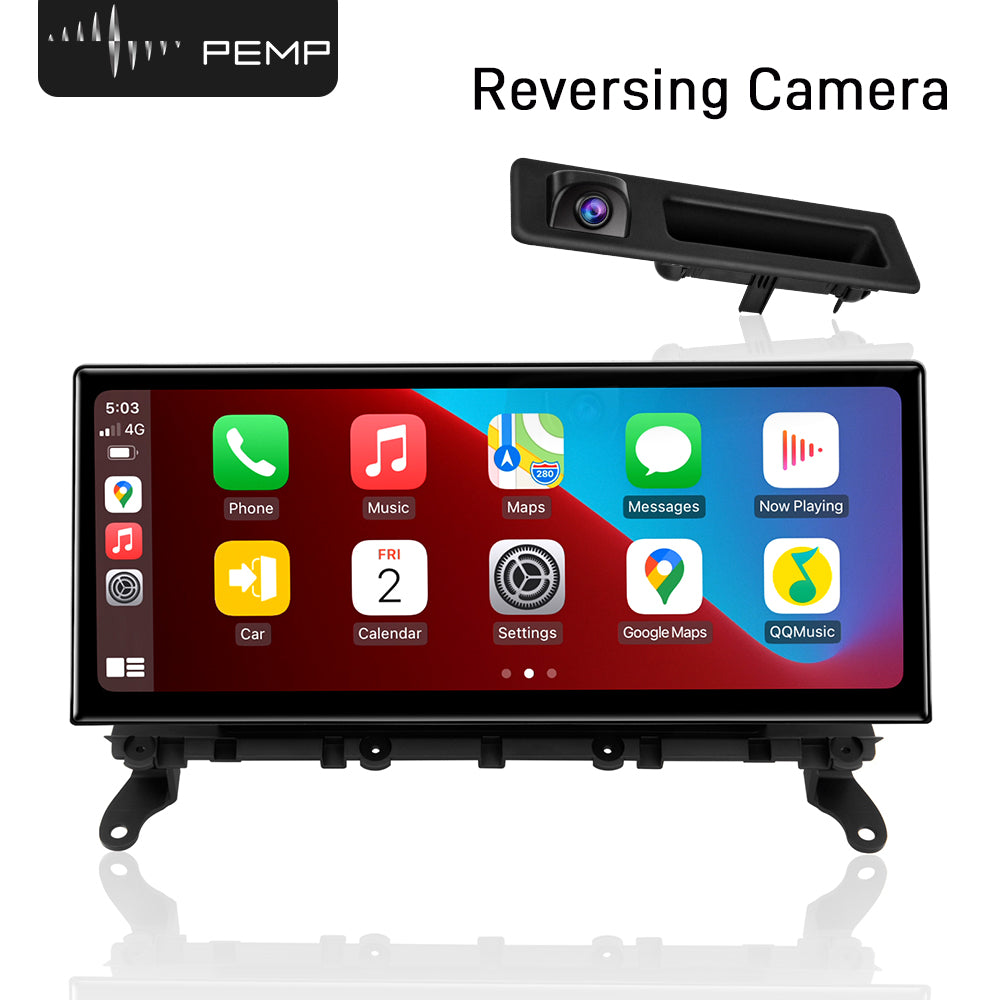

4. Support The OEM Camera and PEMP AHD Reversing Camera (Asin: B08YWL8CND) & front Camera. The Reversing Picture Will Be Very Clear.
5. Using The SIM Card Holder Design Of The Mobile Phone, It Is Convenient To Take Out And Insert The SIM Card, So That You Can Enjoy The 4G High-Speed Network Immediately, 2.4G and 5.0G Two bands WiFi;

Product Specifications:
Processor: Qualcomm Snapdragon 680
CPU: 4xA73@2.4GHz 4xA53@1.9GHz
GPU: Adreno 610 @ 1115MHz
Process Node: 6nm
Display: IPS 12.3"1920x720RGB
Touchscreen: Capacitive
Storage: 8GB RAM + 128GB ROM
Android Version: 13
Operating Voltage and Temperature: DC 14V -20℃ to +70℃
Support 4G Network
Support 2.4G 5G Wifi
Video Support Format: 1080P
Reversing camera support format: 1080P/720P/CVBS
Front view support format: 1080P 30FPS
