PEMP (5807) Vertical Screen Android 14, 1920x720 HD 10.25“ Snapdragon 680 8core Android auto CarPlay for BMW E65 E66 (2002-2008)
- 通常価格
- $689.00
- セール価格
- $689.00
- 通常価格
-
Shipping calculated at checkout.
$19.90
$49.00
$49.00
$89.00
$69.00
$119.00
$109.00
$29.00
Return to your nearest address. (USA and Europe)
Snapdragon 680 chip
Read More
TOP CARD SLOT DESIGN.
Read More
Utilizes Non-Air-Gap Lamination Technology
Read More
Intelligent Interconnection
Support wired and wireless
Built-in Wired And Wireless Carplay For BMW E65 E66
You can use Apple Maps, iTunes, Spotify Music and other apps on your phone.
Built-in Wired And Wireless Android Auto For BMW E65 E66
You can use Google Maps, Spotify Music and other apps on your phone.
Built-in Wired And Wireless Mirror link For BMW E65 E66
You can mirror pictures or videos from your phone to your Android display through the Mirror Link program.
Product Features
Blue Anti-Glared Technology
Use The Blue Anti-Glared Touch Screen to Absorb The Reflected Light And Make The Display Clearer. Multi Point G + G Capacitive Touch Prevents the Screen From Being Scratched And Makes It Easier To Clean.
Lift And Rihgt Of BMW E65 E66 After Installing Android Screen
We changed the new design according to the data of the E65 E66 instrument panel, so that the PEMP Android vertical screen matches the original car more perfectly!
Product Installation and Setup
Approaches to common problems
How To Solve The Problem That Bmw E65 E66 No Aux Menu, So Cannot Get Android Sound

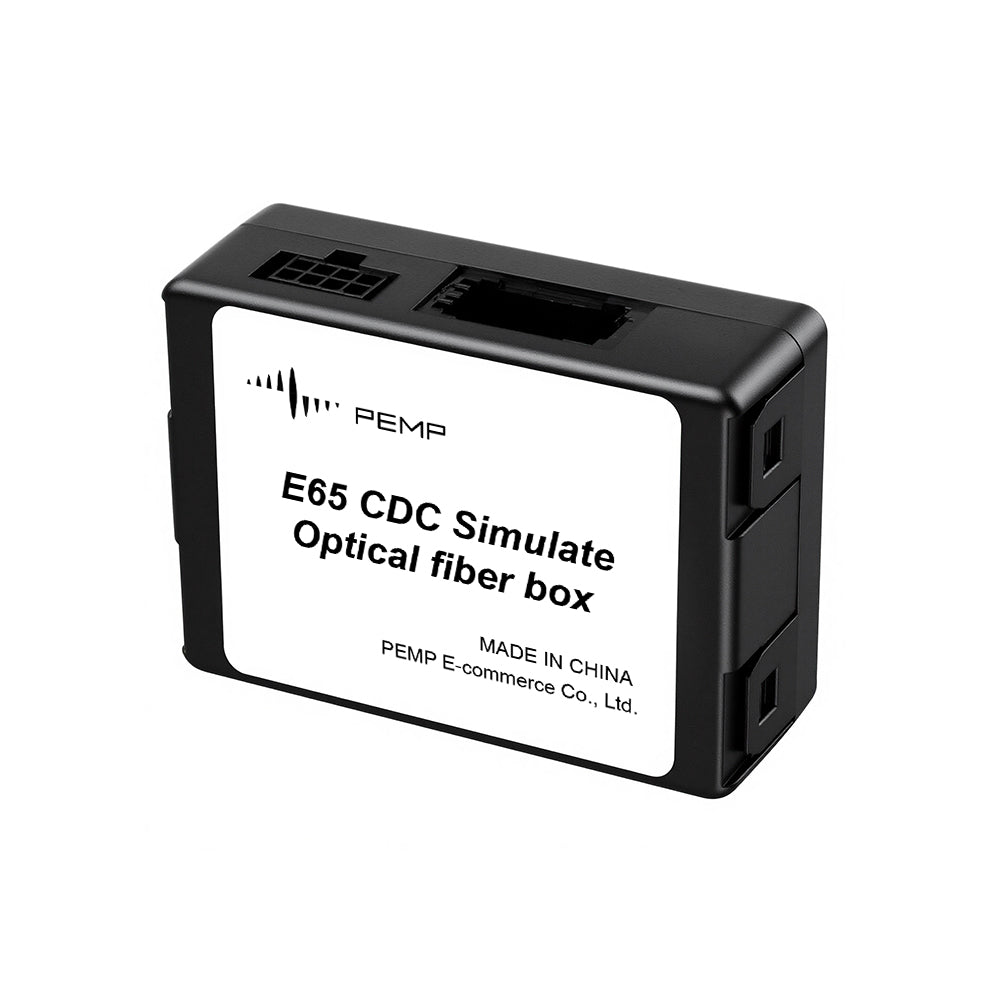

If your E65 E66 does not have an AUX menu, the external device will not be able to input audio. If you replace the Android smart screen, you will not be able to get Android sound. But you can get external input by simulate CDC fiber box: 1. Check whether the original car has an AUX menu? 2. If not, after you buy the Android screen, you will also purchase ASIN: B097RM2LTQ, CDC Simulate Optical Fiber Box, please follow the picture above to install; 3. After the installation is successful, you click CDC, CD01, it is the audio of your external device (Android screen). You can hear the sound of Android from inside the car.
Move the Original Host Fiber Optic Cable to The Android Harness
If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Android harness. Otherwise you can't get the car information and the Android sound. And it will be accompanied by a heartbeat wheezing sound.
Manual Transmission Back Camera Settings
Settings> factory>pass word070305> vehicle> Gear Selection, pls select type2 or 3 Then reverse the vehicle, and the reversing screen will be displayed normally.
You May Also Like

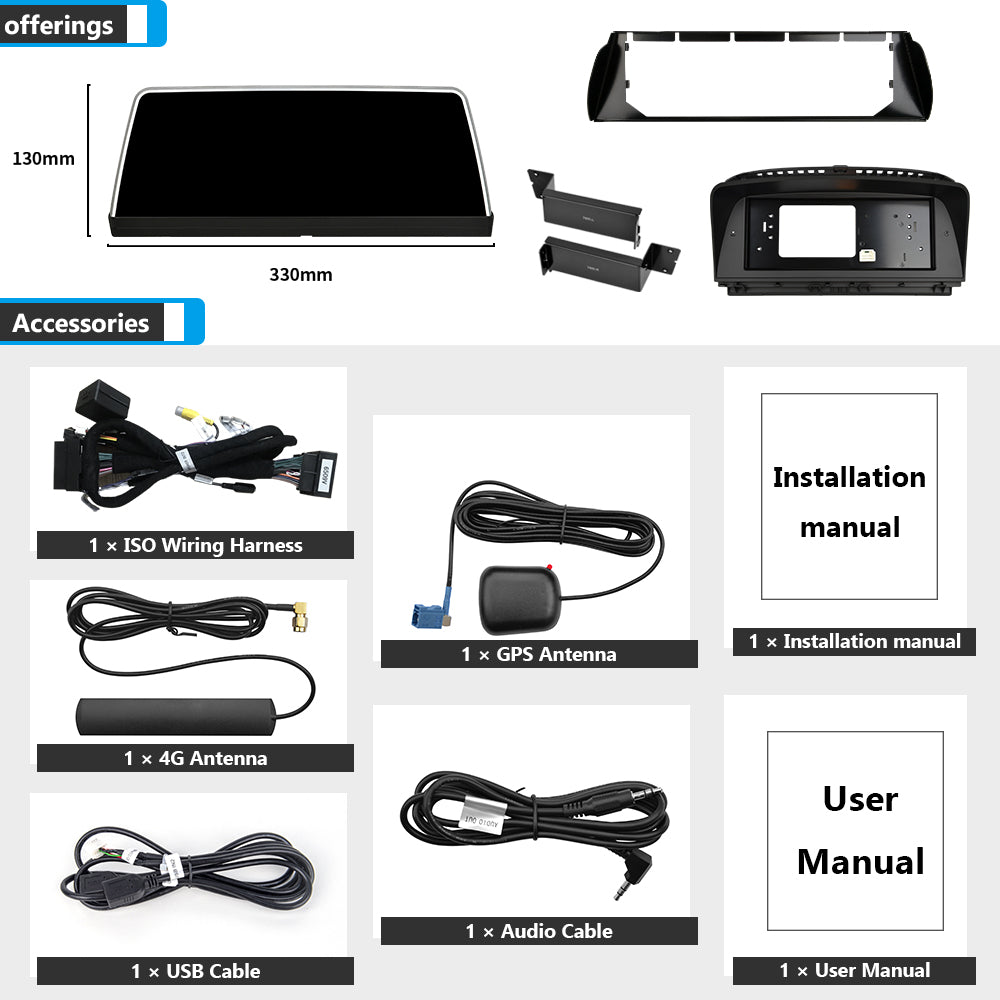

IN THE BOX
1×Android Screen
1×Bases and Stands
1 x ISO Wiring Harness
1 x USB Cable
1 × Audio Cable
1 ×GPS Antenna
1 ×4G Antenna
1 × Installation Manual
1 × User Manual
Reversing Camera (Only for With Camera option)
Frequently Asked Questions
Pre-Sales FAQ
Answer your pre-sales questions
- Since all our screens use AUX to transmit sound, you must check if you have the AUX menu in your OEM system.
- Otherwise you will have problems with no sound on the screen after installation.
- Situation 1: OEM system with AUX
- If your OEM system has an AUX menu, then you can purchase our screen and install it directly.
- After installation you just need to enter your OEM system and switch the multimedia mode to AUX to get normal sound.
-
- Situation 2: OEM system without AUX menu
- If your OEM system does not have an AUX option, then you will need to purchase one of our CDC fiber optic boxes to get sound.
-
- After the screen and fiber optic box are installed, all you need to do is enter the OEM system, switch the multimedia mode to CDC and press the OK button to confirm that the sound will come out normally.（NOTE: After using it, the original car's CD changer channel is occupied, so the original car's CDC function cannot be used;）
-
- PEMP screen products are abundant, if you want to buy the right PEMP screen for your car, you need to know which kind of OEM system your car has first.
- Below we'll cover the differences and appearance of the 4 common BMW screen systems:
- 1. The CCC system is used in older models, with a simple display interface and four functions, communication, Climate, navigation and Entertainment, that can be distinguished at a glance.
-
- The CCC LVDS cable is a 10 PIN LVDS cable:
-
-
- 2. The CIC system, with significantly more features than the CCC, is arranged in a vertical list. Maps, phone, radio, navigation, CD, etc. are available, and you can set options and view vehicle information at the same time.
-
- The LVDS cable used in the CIC system is a 4 PIN LVDS cable:
-
- The NBT system is still arranged in a vertical list and begins to have a connected driving function as well as a mobile office, and the system is more technological compared to the CIC detailing with highlights and shadows.
-
- NBT uses a 6 PIN LVDS cable
-
- 2. The EVO is arranged horizontally for a richer functionality and an easily recognizable system UI.
-
-
- EVO system still utilizes the 6 PIN LVDS connector.
-
After-Sales FAQ
Answer your pre-sales questions
- If you experience abnormal sound problems, you can check the screen and cables one by one by following the steps in this document.
- You can also copy the video link to your browser off to see the detailed video tutorial:
- https://youtu.be/QKJVoJlUpiU
- Or scan the QR code of the video to watch it:
-
- Step 1: Click CAR INFO on PEMP home page to enter the OEM system, check whether the OEM system can be displayed normally.
-
- Step 2:If the OEM system displays abnormally, refer to the documentation on how to handle abnormal OEM system displays or contact Customer Service.
-
- Step 3: If the OEM system displays properly,press the FM/AM button and check that the radio is producing sound.
-
- Situation A: If there is no sound from the radio after pressing the FM/AM button .
- Please refer directly to the method of B-7 and B-8 in case B to check your cables.
- Situation B: If the radio sounds when the FM/AM button is pressed .
-
- B-1: If there is sound coming from the radio, click Multimedia-External Devices, then select Multimedia Mode as AUX Front.
-
- B-2: If you are connected to OEM Bluetooth, disconnect OEM Bluetooth and delete the connection history.
-
- B-3: Set AUX auto switching to off.
- If you have a Qualcomm 680/685 screen, the setup path is Settings - System - AUX Settings.
-
- If you have a Qualcomm 662/8953 screen, the setup path is Settings - Factory - 070305 - Vehicle - AUX Switching Modes.
-
- B-4: The default sound of AUX mode is rather low, please try to adjust the sound greatly by using the sound adjustment knob.
-
- B-5: Connect one end of the supplied AUX cable to the AUDIO OUT port on the IOS harness; The other end connects to the car's AUX IN (usually located at the armrest box).
-
- B-6: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness.
-
-
- B-7: Check the ISO harness plugs and re-unplug and re-insert the plugs .
-
- B-8: Check the power cable and LVDS cable on the back of the screen and unplug and re-plug them.
-
- If you are experiencing problems with your OEM system displaying anomalies, you can check your screen and cables one by one by following the steps shown in this document.
-
- You can also copy the video link to your browser off to see the detailed video tutorial:
- https://youtu.be/dxED9pfNt08
- Or scan the QR code of the video to watch it:
-
- Step 1: Press the FM/AM button and check the radio for sound .
- A: If you can hear the FM sound, please go to the PEMP system homepage, click “Settings” - “Factory Settings” - "070305" - "Vehicle display" and "CAN Protocol" , and select the vehicle protocol and resolution Select the option that corresponds to the OEM system.
-
-
- B-1: If the OEM screen still doesn't display properly or you can't hear the FM sound, you need to check if there is a fiber optic cable on the plug of the OEM ISO harness, and if there is, you need to transfer it to the PEMP ISO harness.
-
- B-2: Because the plug is designed to be tight in order to prevent the plug from loosening, it is easy for the ISO plug to not be inserted to the end and have poor contact.
- Therefore, we need to unplug the ISO plug, and then re-insert it, you can use a little force when inserting, please make sure that the plug is completely inserted to the end.
-
-

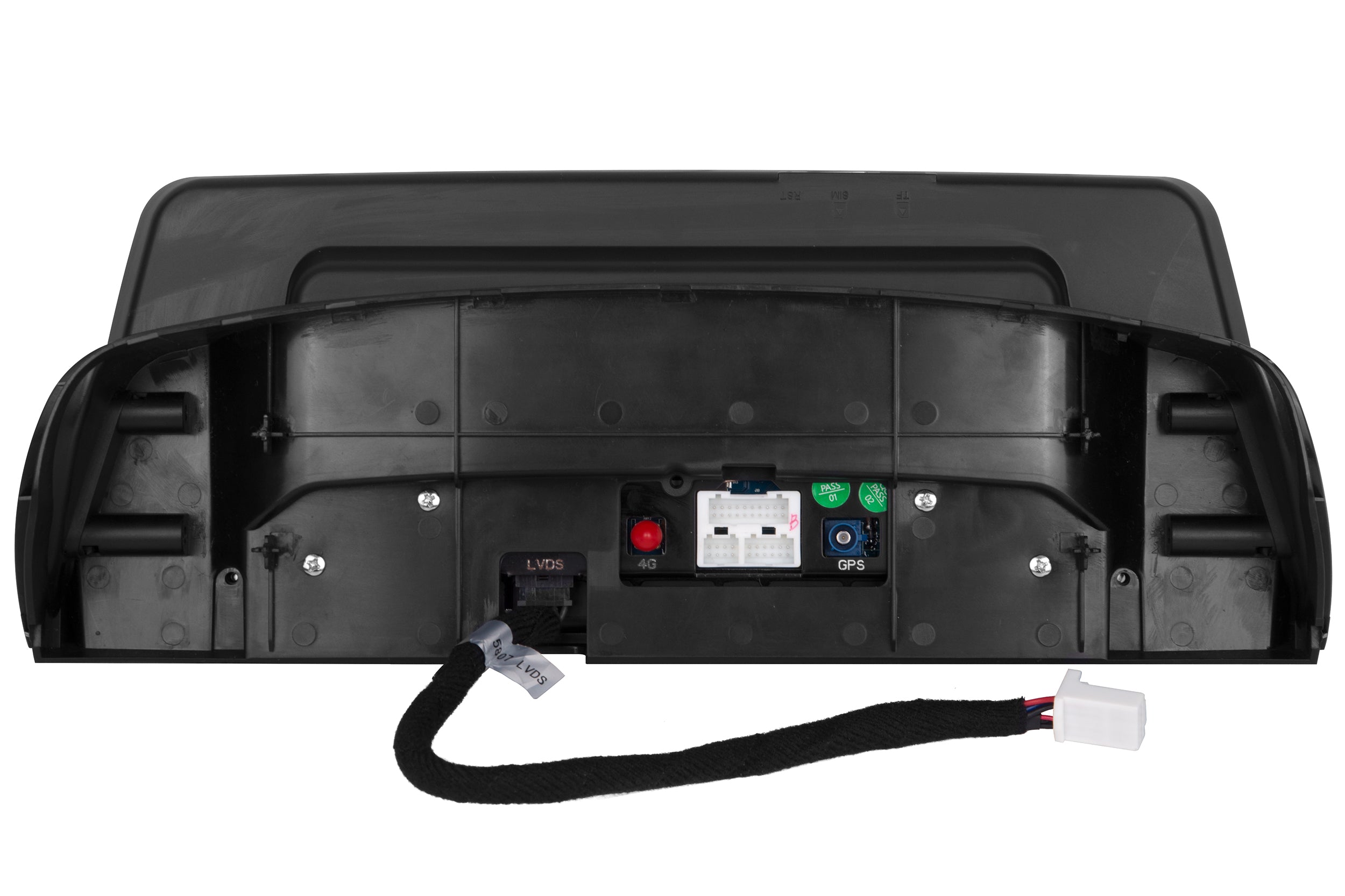

- B-3：Then check the LVDS cable behind the screen and the white power plug.
- As some cars have less space to install the screen, it is easy for the cable to be squeezed, which can lead to loose plugs and poor contact.
- So we need to unplug and re-plug the cable and make sure it is fully inserted and that it is not pinched when installing the screen.
-
