PEMP (NBT) Wireless Carplay Retrofit and Airplay Android Auto Mirror Link Use The OEM Microphone for BMW F01 F07 F10 F12 F15 F20 F30 F25 F48 NBT

PEMP (NBT) Wireless Carplay Retrofit and Airplay Android Auto Mirror Link Use The OEM Microphone for BMW F01 F07 F10 F12 F15 F20 F30 F25 F48 NBT

Precio habitual $299.00 USD
Precio habitual Precio de oferta $299.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Configurations

Built-in Wired and Wireless Carplay
Built-in Apple Carplay function, you can use the touch screen and OEM Knob control the menu of the carplay interface.

Built-in Wired Android auto
Built-in Wered Android auto function, you can call on the android auto interface.

Built-in Morror Link Function
if you use the android phone, you should connect us get the morror link APP.

Setting of NBT Dial Switch
1. If your OEM screen is 6.5 inches, please set as A;

2. If your OEM screen is 8.8 or 10.25 inches switch of the dial code as B;

3. If your CAR is M Sport, you can set the switch as C;

Auto Switch Carplay Sound When You Into Carplay Interface
You set the carplay sound auto switch:

step1-Select the AUX front menu input on the OEM interface;

step2-Long press the No. 8 key on the panel; the AUX front row is stored in the No. 8 key.

step3-Press and hold the MENU button to enter the CarPlay interface, and the sound will automatically switch to the CarPlay box.

YOU CAN USE THE OEM MICROPHONE

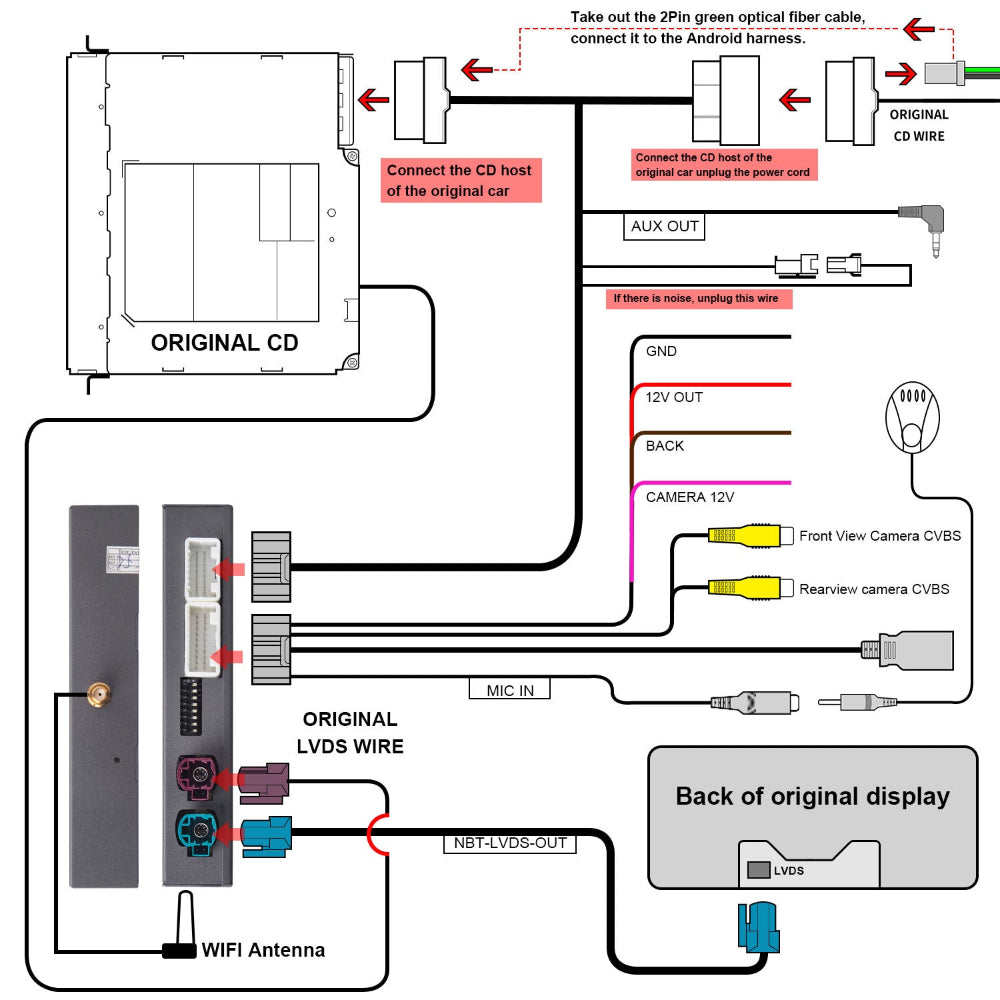

How to Connect The Microphone And Settings
USE THE AFTER-MARKET MIC

1. If your car has not the OEM microphone, you need insert external microphone to the MIC Socket on the box;

2. Set the microphone to Aftermarket microphone option.

USE THE OEM MIC

1. If your car has the OEM microphone, you need insert the mic cable of the iso harness to the MIC Socket on the box;

2. Set the microphone to OEM microphone.

Set The Camera And Connection
1. if the car has OEM camera, you need select the Factory Camera in the settings;

2. if you install a after-market camera, you need select the Aftermarket Camera option in the settings;

3. if the car is a Manual Transmission, you need select the 12V Active option in the Car settings. At the same time, you need to use the power cord of the backup light to connect with the Backup light 12v in.

This CarPlay Box Only For BMW NBT System
This product is only suitable for BMW NBT system. There is a 6PIN LVDS at the back of the OEM screen. It does not support CIC 4PIN and EVO system. If you buy the wrong system, you will not be able to install it.

Special attention:

This product is only suitable for the original display screen, and it is not suitable for rear mounted display.

Product function

Support wireless Carplay and Android auto functions;

Support the wireless screen feeding function of Grasscarp mobile phone airplay;

The original vehicle information can be displayed normally by setting the 6.5/8.8/10.25 inch display screen of the original vehicle through the dial.

Support audio and video playback;

Support the original vehicle knob control and steering wheel key control;

Support for ahd 720p, 25/30 frame reversing camera input

Support CVBS format reverse camera input.
