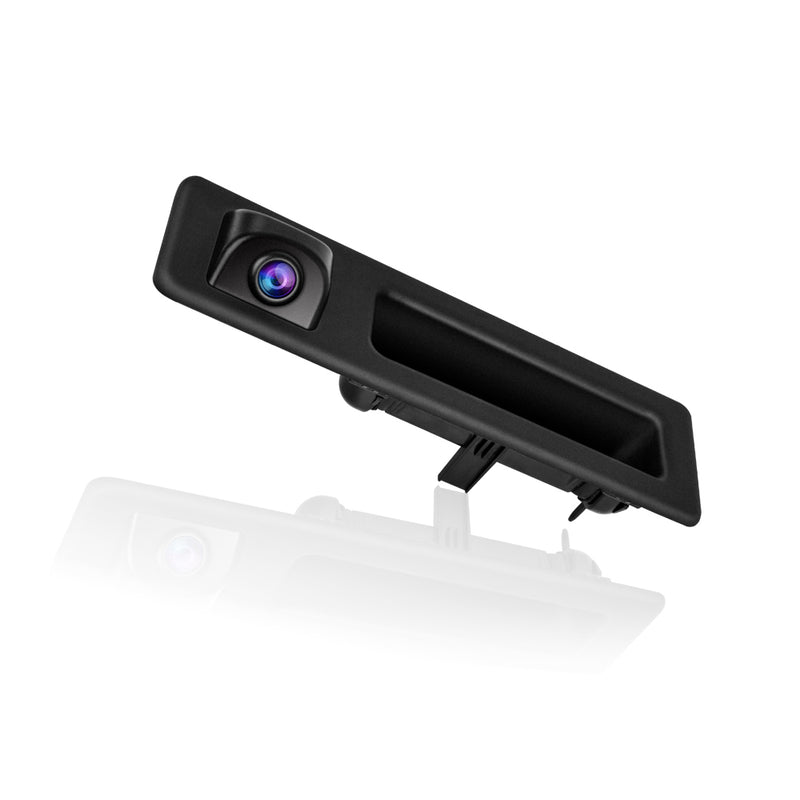

PEMP (8006) AHD Backup Camera Parking Rear View Reverse Camera for PEMP BMW F10 F30 F25 F48 Android Linux Screen (AHD 160 * 45)

$69.00
$69.00
Envío calculado al finalizar la compra.
  1. 0Special note: It is not suitable for your original car display. If your display does not support AHD input interface, it cannot be displayed! So it only supports rear display with AHD input.
  2. It only supports PEMP1920*720 resolution below

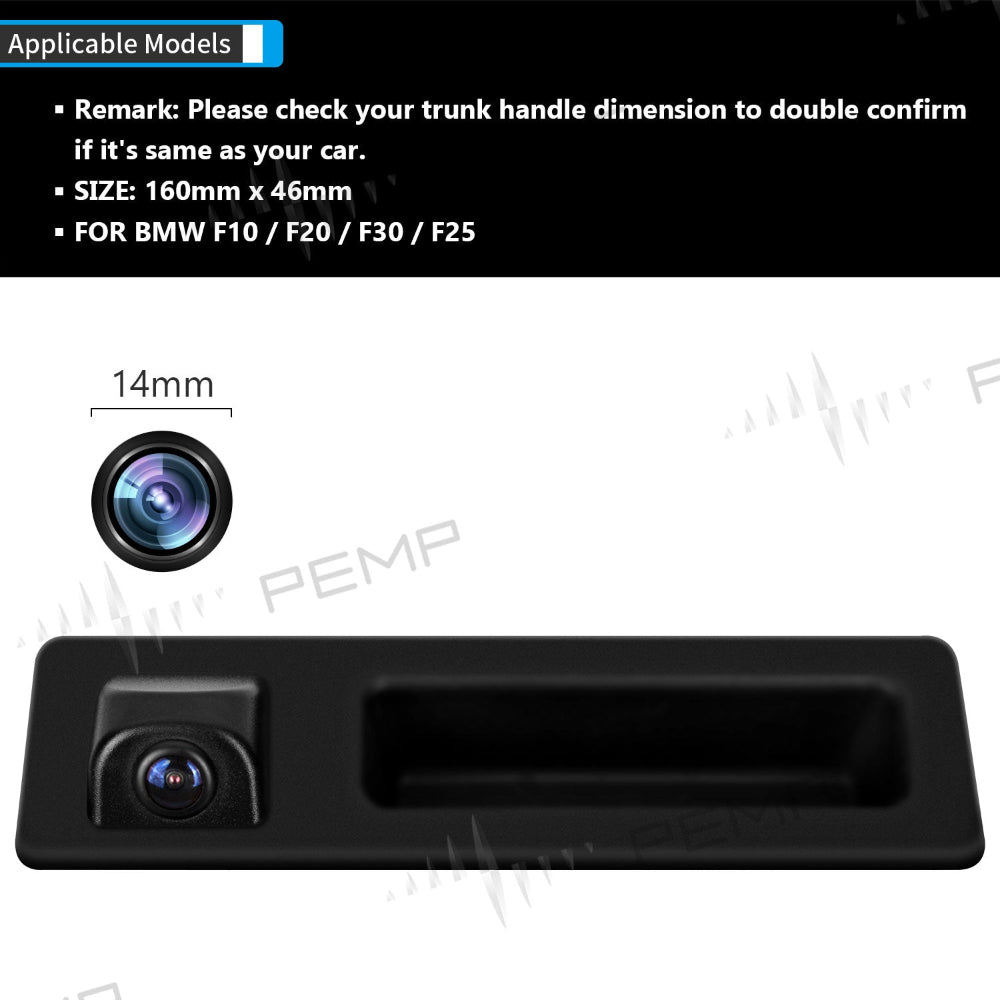

  3. It is only suitable for BMW F10 F30 F25 dedicated rear-view camera, other models you cannot install.

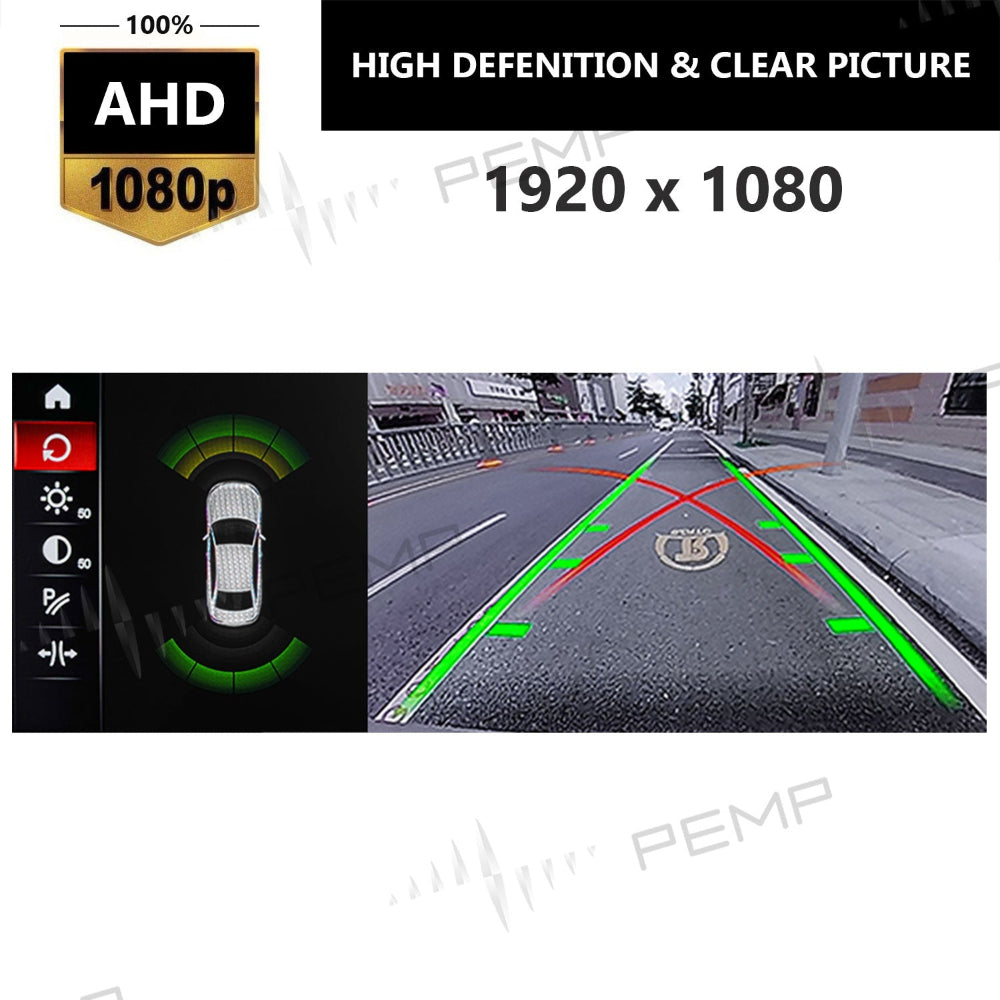

  4. HD AHD camera with maximum 1920*1080 resolution. Please make sure your display can support 1080P 30FPS format input, otherwise it only has black and white image.
  5. Camera width up to 120 degrees, HD night vision effect.5.
Camera:
Pay in installment: $661 /mth
Learn more
Payment
MastercardVisaAmerican Express PayPalMaestroKlarnaJCBDiscover

  1. Brand PEMP

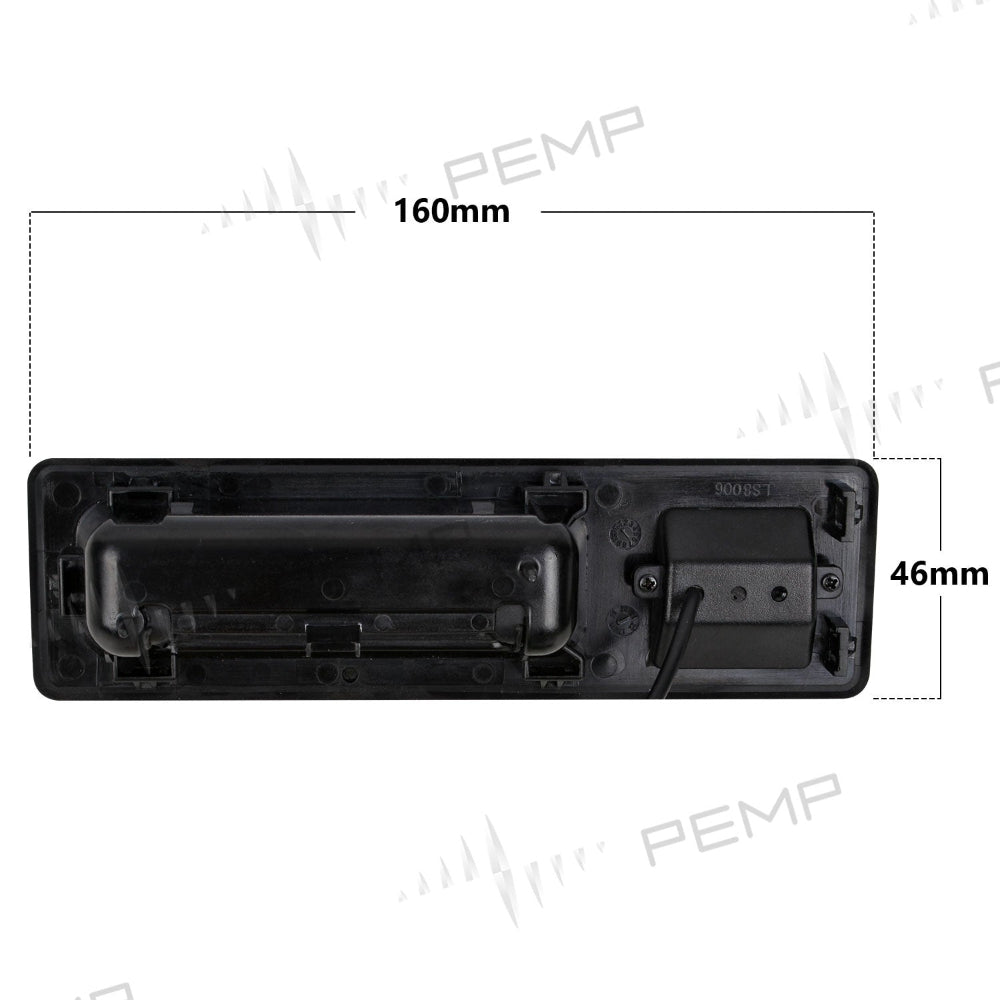

  2. Product Dimensions 6.3"L x 1.77"W x 0.79"H
  3. Lux rating 0.3 Lux
  4. Compatible Devices Monitor
  5. Installation Type Surface Mount
  6. Video Capture Resolution 1080p
  7. Voltage 12 Volts
  8. Optical Sensor Technology CMOS
  9. Effective Still Resolution 1.92E+3 Pixels
  10. Lens Type Wide Angle

1-Year Warranty
In stock! Ships within 1-2 business days.
Respond to questions within 12 hours.
Return to your nearest address. (USA and Europe)

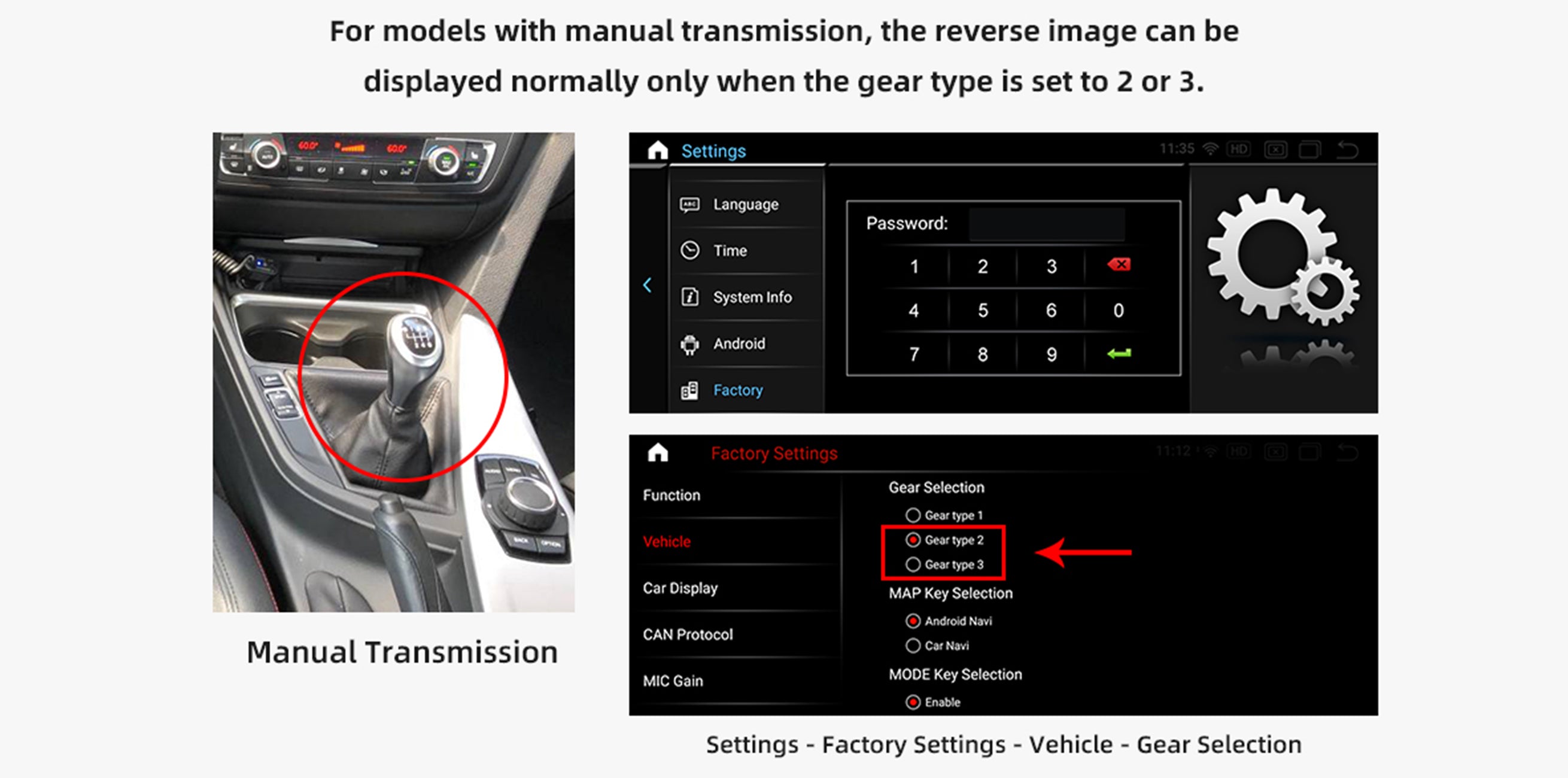

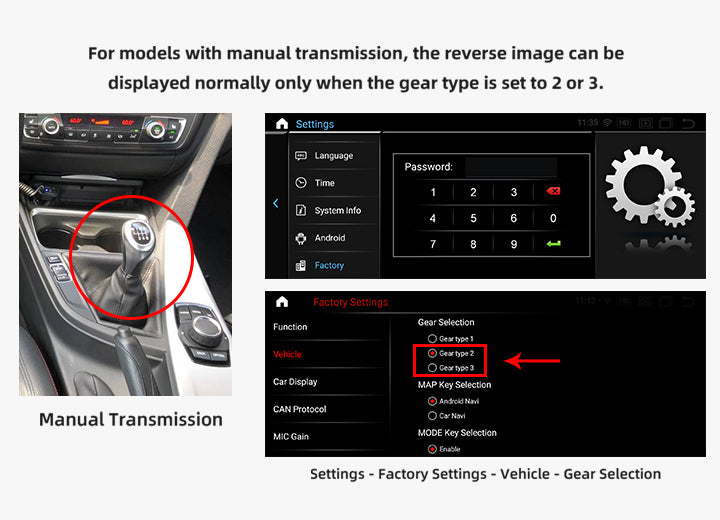

Manual Transmission back Camera settings

If your car is a manual transmission, you need to select gear type2 or 3 in the setting(PEMP Android screen) ; The setting method is as follows:

Settings> factory>pass word070305> vehicle> Gear Selection, pls select type2 or 3

Then reverse the vehicle, and the reversing screen will be displayed normally.

Read More

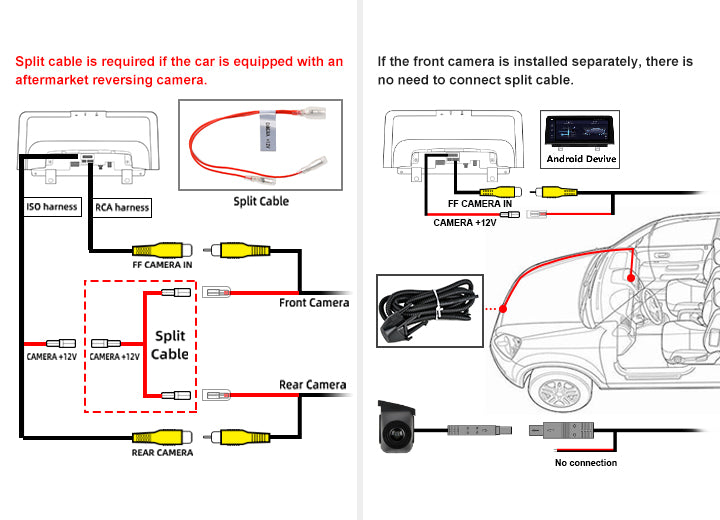

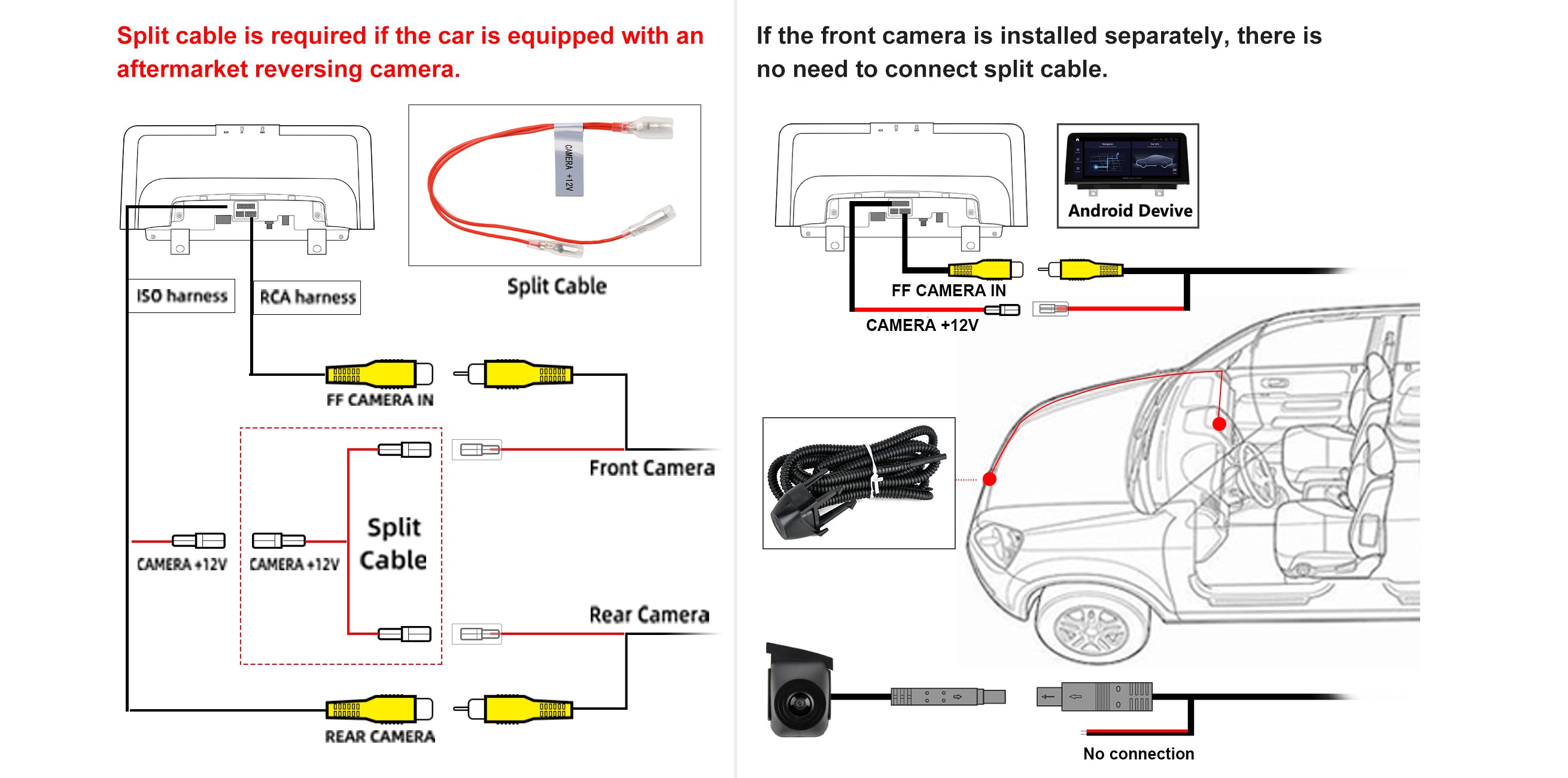

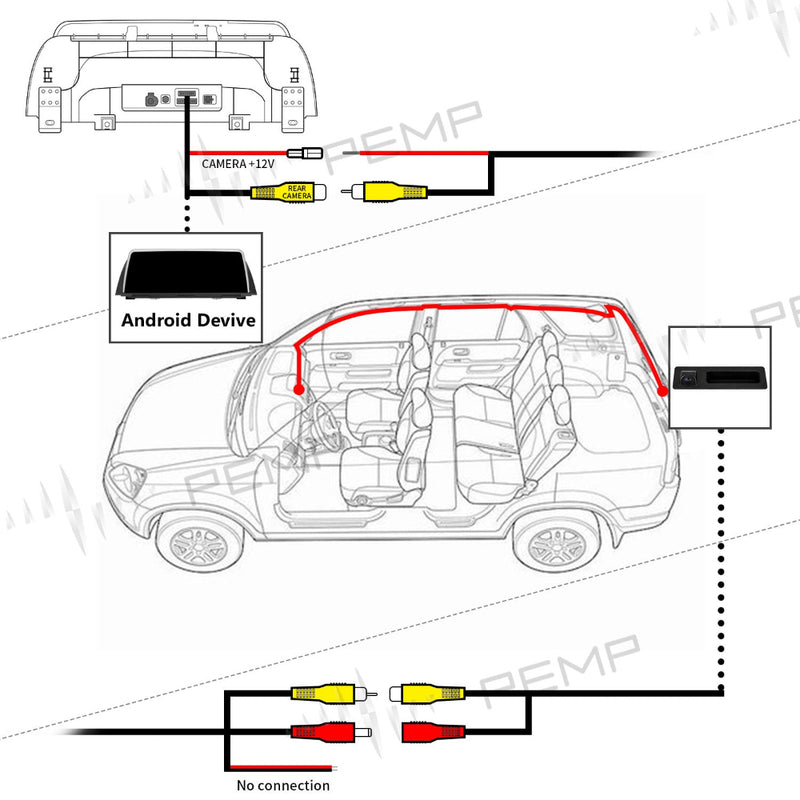

How to connect the Carmea wires?

1. Please connect the REAR camera's yellow video cable to the PEMP Android harness with the Rear Camera IN.

2. Please connect the red power cable of the camera to the PEMP Android wiring harness marked with Carmera +12V;

3. Do not connect any other wires.

4. When you are reversing, the Android interface will automatically switch the reversing screen, Carmera +12V starts to supply power to the camera, and you can see the reversing picture on the screen.

Notice:

1. If you purchased the PEMP front camera, you need to connect the power of the front camera with the Camera +12V. And connect the yellow video cable of front view camera with FF Camera in.

2. PEMP Android screen, the 8.8-inch display only supports CVBS camera input; the 10.25-inch display supports AHD and CVBS reversing cameras.

Read More

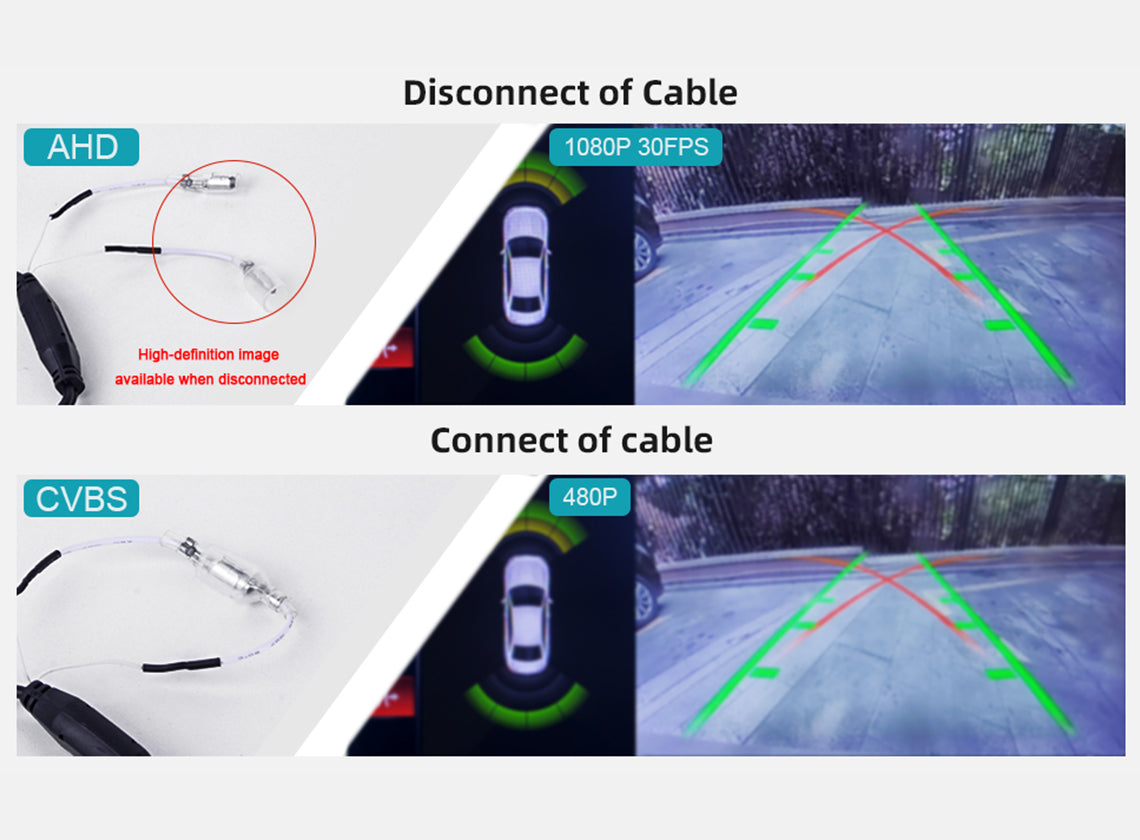

Support the AHD and CVBS format

You can connect or disconnect the plug, set the video format you want.

You can connect or disconnect the plug, set the video format you want.

1.When you disconnect, it is 1080P 30FPS HD format. This must be supported by your Android screen. 2.When you connect the plug, it is 480P normal format. Most Android screens support this format.

Product Video

How to install BMW F30 3Series rear view Camera

You May Also Like

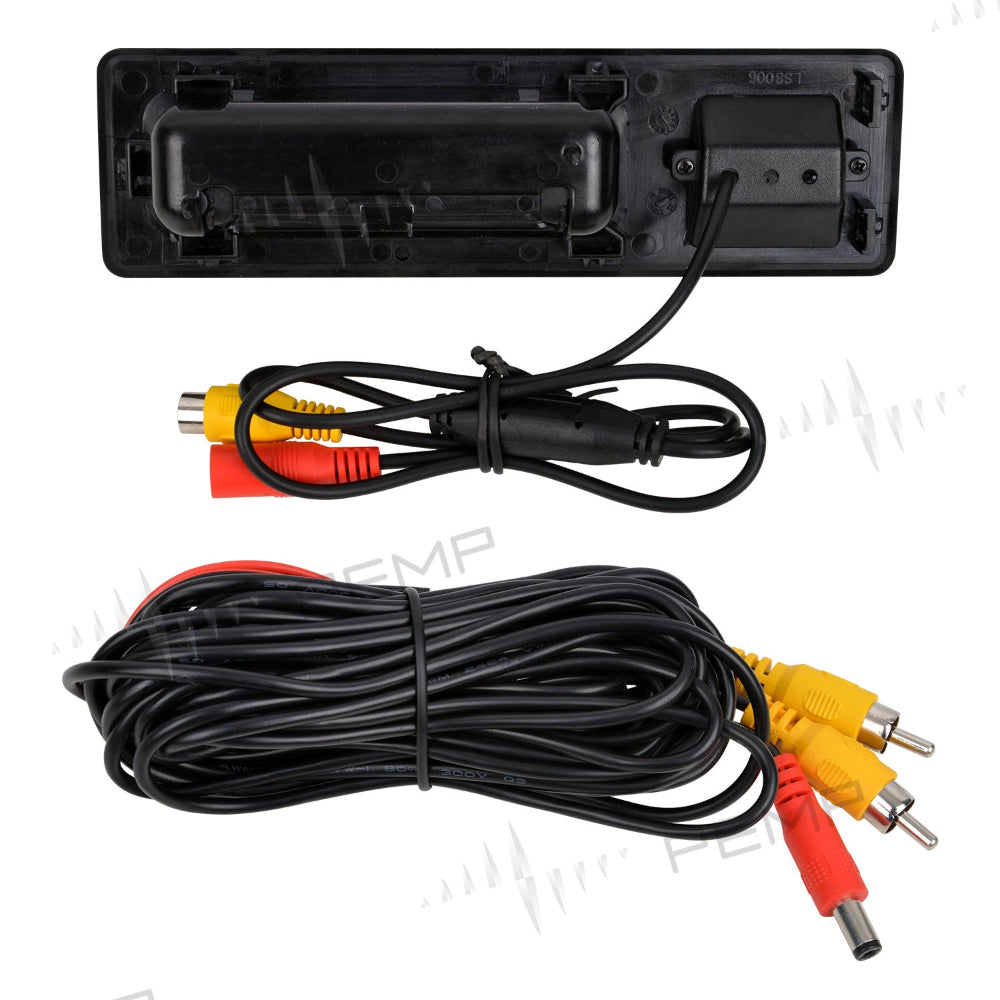

IN THE BOX
