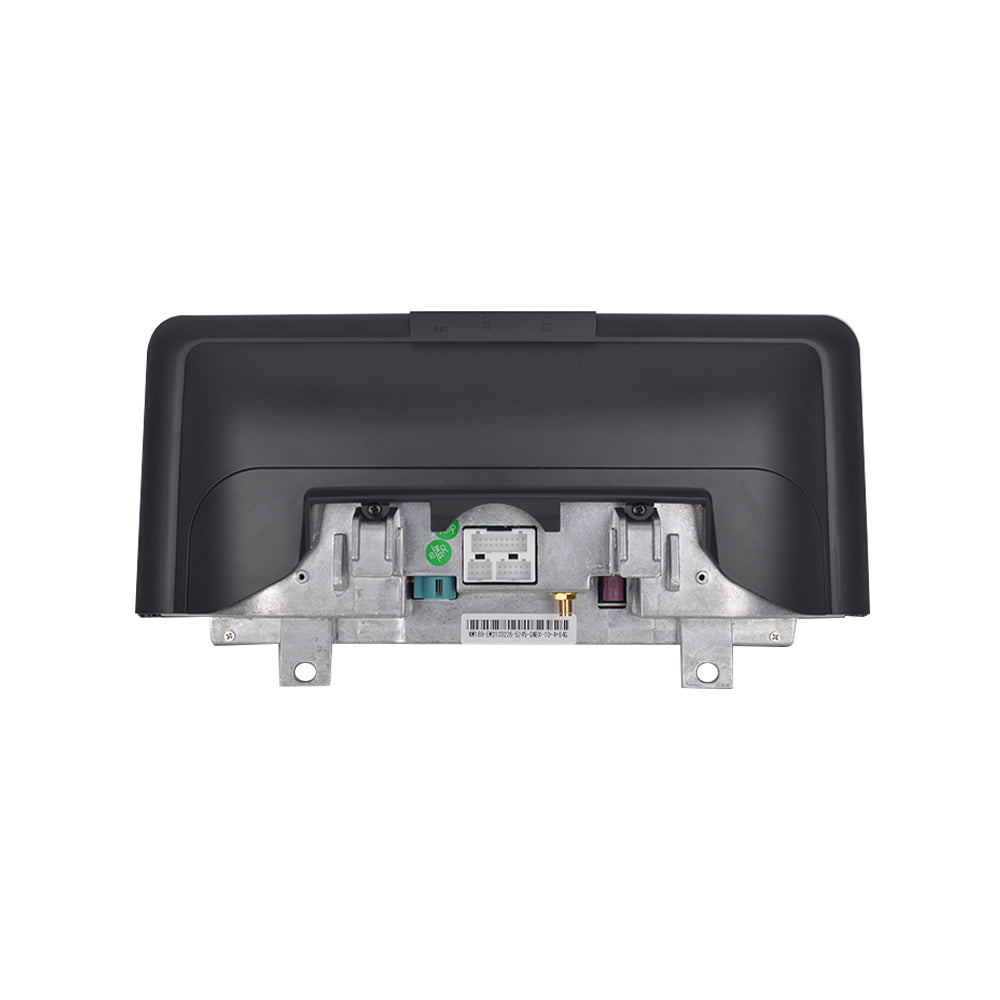

PEMP (5245) for BMW X5 X6 F15 F16 Android 14 CarPlay Android auto, 1920X720 10.25" IPS Touch Screen, Snapdragon 680 8core Display F15 F16 (2013-2015) NBT

$599.00
$599.00
Shipping calculated at checkout.
  1. Only suitable for BMW NBT original car 6(4+2)PIN LVDS system. Not suitable for EVO system.
  2. The Product Has Built-In Wireless Car Play and Wired Android Auto.You can use OEM Bluetooth to get the sound of CarPlay or Android auto phone calls and music. The sound is not delayed and has good sound quality.
  3. Qualcomm Snapdragon 680, SM6225 8 core processor, working frequency up to 2.4GHz; 8GB RAM and 128GB ROM; SM6225 uses 6nm process, low power and fast response.
  4. Multi-Point Capacitive Touch Screen, 10.25 HD IPS Display Screen, Resolution Up To 1920 * 720; Matching With PEMP AHD Reversing Camera, The Reversing Picture Will Be Very Clear.
  5. Using The SIM Card Holder Design Of The Mobile Phone, It Is Convenient To Take Out And Insert The SIM Card, So That You Can Enjoy The 4G High-Speed Network Immediately, 2.4G and 5.0G Two bands WiFi;
Configurations:
Camera:
$19.90
$69.00
$89.00 $79.00
$29.00
Pay in installment: $661 /mth
Payment
MastercardVisaAmerican Express PayPalMaestroKlarnaJCBDiscover

  1. Processor:Qualcomm Snapdragon 680
  2. CPU:4xA73@2.4GHz 4xA53@1.9GHz
  3. GPU:Adreno 610 @ 1115MHz
  4. Process Node:6nm
  5. Display:IPS 10.25"1920x720RGB
  6. Touchscreen:Capacitive
  7. Storage:8GB RAM + 128GB ROM
  8. Android Version:14
  9. Operating Voltage and Temperature:DC 14V -20℃ to +70℃
  10. Video Support Format:1080P
  11. Reversing camera support format:1080P/720P/CVBS
  12. Front view support format:1080P 30FPS·

1-Year Warranty
In stock! Ships within 1-2 business days.
Respond to questions within 12 hours.
Return to your nearest address. (USA and Europe)
Use the OEM Bluetooth to Calling in CarPlay Android auto

If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.
NOTE: This connection can only be used to get music sound when your vehicle has Bluetooth audio capability.

Read More
TOP CARD SLOT DESIGN.

Supports 4G signal and 64G memory card
No need to disassemble the screen,can be very easy to replace theSlM card and memory card, the whole processwithout complicated operation.

Read More
Snapdragon 680 chip

Powered by Qualcomm Snapdragon 680 chip with 6nm process, 8-core processor. Android 14 Version. 8GB of RAM with 128GB of ROM, DDR4 Emmc UFS 2.2 can handle multitasking quickly without lagging.

Read More

Intelligent Interconnection

Support wired and wireless

Built-in Wired And Wireless Carplay For BMW F15

You can use Apple Maps, iTunes, Spotify Music and other apps on your phone.

Built-in Wired And Wireless Android Auto For BMW F15

You can use Google Maps, Spotify Music and other apps on your phone.

Built-in Wired And Wireless Mirror link For BMW F15

You can mirror pictures or videos from your phone to your display through the Mirror Link program.

Product Features

Piano Finish And Fully Laminated Screen

Piano Lacquer Process

Dozens of processes quench the mirror shine to meet the standard of musical instrument grade finish.

Utilizes Non-Air-Gap Lamination Technology

With the lamination process, the distance between the display and the touchpad is 0. The background is darker when the screen is off and the colors are more realistic when the screen is on!

Product Video

How to install BMW X5 F15 Android screen

Product Installation and Setup

Approaches to common problems
Installation text Product Manual

Move the original host fiber optic cable to the Android harness

lf your OEM radio has a fiber optic cable above the power harness, Pls move it to the Android harness. Otherwise you can't get the car information and the Android sound. And it will be accompanied by a heartbeat wheezing sound.

Please connect the audio harness to the armrest box AUX IN connector

If you have properly adapted the fiber optic harness and selected the AUX menu in the OEM interface, you still can't get CarPlay or Android auto sound. Be sure to connect the audio cable between the armrest box AUX IN and AUDIO OUT.

Only For BMW NBT System (6PIN LVDS)

This product is only suitable for BMW NBT system. There is a 6PIN LVDS at the back of the OEM screen. It does not support CIC 4PIN system. If you buy the wrong system, you will not be able to install it.

App Split Screen Operation Method

STEP 1: Click the split screen icon on the main menu STEP 2: Drag the app to move to the left gray area

You May Also Like

IN THE BOX

1× Android Screen

1 x ISO Wiring Harness

1 x USB Cable

1 × Audio Cable

1 × 4G Antenna

1 × GPS Antenna

1 × Base

1 x Installation Manual

1 × User Manual

Reversing Camera (Only for With Camera option)

Frequently Asked Questions

Pre-Sales FAQ

Answer your pre-sales questions

  1. PEMP screen products are abundant, if you want to buy the right PEMP screen for your car, you need to know which kind of OEM system your car has first.
  2. Below we'll cover the differences and appearance of the 4 common BMW screen systems:
  3. 1. The CCC system is used in older models, with a simple display interface and four functions, communication, Climate, navigation and Entertainment, that can be distinguished at a glance.
  4. 配置图片
  5. The CCC LVDS cable is a 10 PIN LVDS cable:
  6. 配置图片
  7. 配置图片
  8. 2. The CIC system, with significantly more features than the CCC, is arranged in a vertical list. Maps, phone, radio, navigation, CD, etc. are available, and you can set options and view vehicle information at the same time.
  9. 配置图片
  10. The LVDS cable used in the CIC system is a 4 PIN LVDS cable:
  11. 配置图片
  12. The NBT system is still arranged in a vertical list and begins to have a connected driving function as well as a mobile office, and the system is more technological compared to the CIC detailing with highlights and shadows.
  13. 配置图片
  14. NBT uses a 6 PIN LVDS cable
  15. 配置图片
  16. 2. The EVO is arranged horizontally for a richer functionality and an easily recognizable system UI.
  17. 配置图片
  18. 配置图片
  19. EVO system still utilizes the 6 PIN LVDS connector.
  20. 配置图片
  1. This content describes in detail the difference between Android screen and LINUX, I believe you will have a clear understanding of them after reading all the content, and then according to your needs to buy the right screen for you.
  2. You can also copy the video link to your browser off to see the detailed video tutorial:
  3. https://youtu.be/wReZG_1Aajo
  4. Or scan the QR code of the video to watch it:
  5. 配置图片
  6. Below is a general overview of the differences between the Android screen and the LINUX screen:
  7. 配置图片
  8. Points of difference:
  9. Difference 1: Start-up speed difference
  10. Android screen startup time is about 35 seconds,
  11. LINUX screen startup time is about 9 seconds.
  12. 配置图片
  13. Difference 2: Price difference
  14. Android screens are relatively expensive due to their functionality and highly regulated configuration.
  15. LINUX screens are relatively simple in terms of functionality and configuration and are relatively inexpensive.
  16. 配置图片
  17. Difference 3: APP Download and Installation.
  18. Android screen supports downloading APP and installing，
  19. LINUX screen can't download APP and only supports using some APP by connecting Carplay and Android Auto.
  20. 配置图片
  21. Difference 4: SIM card and TF/SD card difference
  22. Android screen has built-in SIM card and SD/TF card slot, support using SIM card network and TF/SD card memory expansion.
  23. LINUX screen has no SIM card and SD/TF card slot, does not support SIM card and TF/SD card function.
  24. 配置图片
  25. Difference 5: Built-in navigation .
  26. Android screen with built-in navigation, support for connecting GPS antenna, you can use the navigation directly without connecting the phone.
  27. The LINUX screen does not have built-in navigation and does not support the connection of a GPS antenna; navigation must be used through the phone with Carplay and Android Auto connected.
  28. 配置图片
  29. Difference 6: Memory Difference
  30. Android screens support the selection of memory configurations.
  31. LINUX screens do not support the selection of memory configurations.
  32. 配置图片
  33. Difference 7: Antenna and installation difficulty.
  34. Android screen support GPS and SIM card, standard equipped with GPS and 4G antenna, the installation of the GPS and 4G antenna need to find the location of the installation and the location of the cable, the difficulty of installation is relatively difficult.
  35. LINUX screen does not support GPS and SIM card, do not need to install GPS and 4G antenna, the difficulty of installation is relatively easy.
  36. 配置图片
  37. Difference 8: CPU difference
  38. Android screen uses a Qualcomm processor,
  39. LINUX screen uses a Sunplus processor.
  40. 配置图片
  41. Difference 9: Aftermarket Reverse Camera
  42. Android screen supports installation of 1080P and 720P AHD/CVBS aftermarket reversing cameras.
  43. LINUX only supports to install 720P aftermarket reversing camera.
  44. 配置图片
  45. Similarities:
  46. Similarity 1: Intelligent Connectivity
  47. Both Android and LINUX screens support wireless and wired Carplay & Android Auto connectivity.
  48. 配置图片
  49. Similarity 2: Dual system switching
  50. Both Android and LINUX screens support OEM systems as well as quick switching between corresponding aftermarket systems (Android/LINUX).
  51. 配置图片
  52. Similarity 3: Camera and Radar .
  53. Android screen and LINUX screen both support OEM reverse camera and radar display.
  54. Android screen and LINUX screen both support installation of aftermarket reverse camera.
  55. 配置图片
  56. Similarity 4: Same screen specs.
  57. Both the Android screen and the LINUX screen use touchscreens of the same size and resolution.
  58. 配置图片
After-Sales FAQ

Answer your pre-sales questions

  1. If you experience abnormal sound problems, you can check the screen and cables one by one by following the steps in this document.
  2. You can also copy the video link to your browser off to see the detailed video tutorial:
  3. https://youtu.be/QKJVoJlUpiU
  4. Or scan the QR code of the video to watch it:
  5. 配置图片
  6. Step 1: Click CAR INFO on PEMP home page to enter the OEM system, check whether the OEM system can be displayed normally.
  7. 配置图片
  8. Step 2:If the OEM system displays abnormally, refer to the documentation on how to handle abnormal OEM system displays or contact Customer Service.
  9. 配置图片
  10. Step 3: If the OEM system displays properly,press the FM/AM button and check that the radio is producing sound.
  11. 配置图片
  12. Situation A: If there is no sound from the radio after pressing the FM/AM button .
  13. Please refer directly to the method of B-7 and B-8 in case B to check your cables.
  14. Situation B: If the radio sounds when the FM/AM button is pressed .
  15. 配置图片
  16. B-1: If there is sound coming from the radio, click Multimedia-External Devices, then select Multimedia Mode as AUX Front.
  17. 配置图片
  18. B-2: If you are connected to OEM Bluetooth, disconnect OEM Bluetooth and delete the connection history.
  19. 配置图片
  20. B-3: Set AUX auto switching to off.
  21. If you have a Qualcomm 680/685 screen, the setup path is Settings - System - AUX Settings.
  22. 配置图片
  23. If you have a Qualcomm 662/8953 screen, the setup path is Settings - Factory - 070305 - Vehicle - AUX Switching Modes.
  24. 配置图片
  25. B-4: The default sound of AUX mode is rather low, please try to adjust the sound greatly by using the sound adjustment knob.
  26. 配置图片
  27. B-5: Connect one end of the supplied AUX cable to the AUDIO OUT port on the IOS harness; The other end connects to the car's AUX IN (usually located at the armrest box).
  28. 配置图片
  29. B-6: Some cars have fiber optic cable on OEM ISO harness, if your OEM ISO harness has fiber optic cable, please transfer it to PEMP ISO harness.
  30. 配置图片
  31. 配置图片
  32. B-7: Check the ISO harness plugs and re-unplug and re-insert the plugs .
  33. 配置图片
  34. B-8: Check the power cable and LVDS cable on the back of the screen and unplug and re-plug them.
  35. 配置图片
  1. If you are experiencing problems with your OEM system displaying anomalies, you can check your screen and cables one by one by following the steps shown in this document.
  2. 配置图片
  3. You can also copy the video link to your browser off to see the detailed video tutorial:
  4. https://youtu.be/dxED9pfNt08
  5. Or scan the QR code of the video to watch it:
  6. 配置图片
  7. Step 1: Press the FM/AM button and check the radio for sound .
  8. A: If you can hear the FM sound, please go to the PEMP system homepage, click “Settings” - “Factory Settings” - "070305" - "Vehicle display" and "CAN Protocol" , and select the vehicle protocol and resolution Select the option that corresponds to the OEM system.
  9. 配置图片
  10. 配置图片
  11. B-1: If the OEM screen still doesn't display properly or you can't hear the FM sound, you need to check if there is a fiber optic cable on the plug of the OEM ISO harness, and if there is, you need to transfer it to the PEMP ISO harness.
  12. 配置图片
  13. B-2: Because the plug is designed to be tight in order to prevent the plug from loosening, it is easy for the ISO plug to not be inserted to the end and have poor contact.
  14. Therefore, we need to unplug the ISO plug, and then re-insert it, you can use a little force when inserting, please make sure that the plug is completely inserted to the end.
  15. 配置图片
  16. 配置图片
  17. B-3：Then check the LVDS cable behind the screen and the white power plug.
  18. As some cars have less space to install the screen, it is easy for the cable to be squeezed, which can lead to loose plugs and poor contact.
  19. So we need to unplug and re-plug the cable and make sure it is fully inserted and that it is not pinched when installing the screen.
  20. 配置图片
