Modern vehicle upgrades have changed the way drivers interact with their dashboards. Replacing the factory screen with a widescreen unit creates a larger display area for navigation and media, making it easier to view multiple types of information without switching menus.
The Technical Foundation of the Vehicle Screen Architecture
Understanding the hardware and software inside your new display is the first step toward effective use. These systems prioritize stability and fast operation to ensure your dashboard remains responsive during your drive.
Why System Stability Dictates Multitasking Capabilities
Many high-quality aftermarket displays use a specific operating system known for being very lightweight. This architecture focuses on core driving tasks rather than trying to act like a general-purpose tablet. Because the software is streamlined, it can boot up almost instantly, often becoming usable within a few seconds of starting the car. This speed is a direct result of a closed system design. While you cannot download random games or video apps directly onto the unit, this setup ensures the processor has enough power to run a map and a music player side by side without any lag.
The Relationship Between Hardware and Physical Controls
A key benefit of these screens is how they work with the physical control knob in the center console. The software responds to rotary movements and clicks of the factory controller. When you are in a multitasking view, you can rotate the knob to move a highlight box between different windows on the screen. This physical connection makes it easier to manage multiple apps while driving because you do not have to reach out and hunt for small touch targets on a glass screen. The coordination between the physical buttons and the digital interface keeps your focus on the road while still allowing you to control your media.
Managing Multi-Window Layouts via Mobile Phone Integration
Most drivers rely on their mobile devices to provide navigation and entertainment. Modern software automatically adjusts to wider screens, allowing you to view maps and music side by side with minimal effort.
Activating the Dashboard View on Widescreen Displays
When you first connect your phone, the screen might only show one application at a time. To unlock the full potential of a wide display, you should use the dashboard view. This feature partitions the screen into a map and several smaller widgets for music and suggestions. You can activate this view by following these steps:
- Connect your mobile device and ensure the main app menu is visible on the display.
- Locate the multi-window icon in the corner of the screen, which usually looks like a small grid or a set of squares.
- Tap the icon or use the rotary controller to select it.
- The view will automatically change to a split layout with the map on one side and media controls on the other.

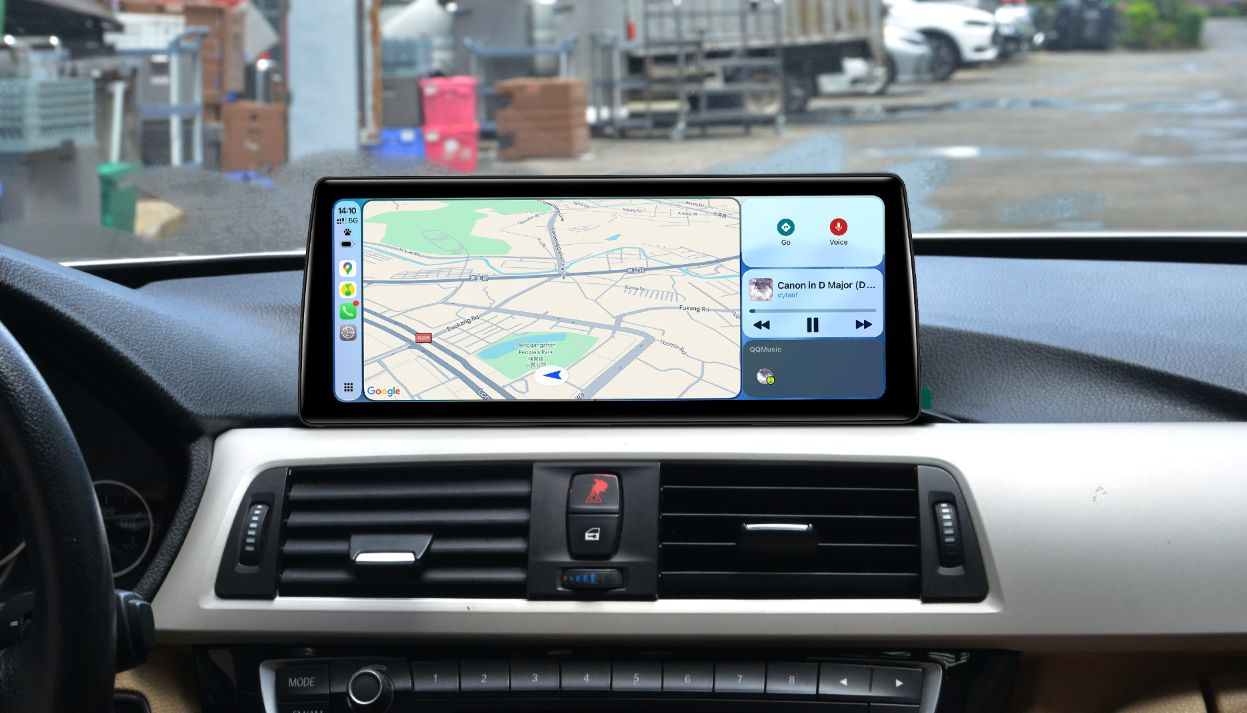

On a 10.25-inch or 12.3-inch display, this layout keeps the map large enough to read easily while still showing your next turn and current track information.
The Information Hierarchy of Modern Dashboard Software
The software organizes information in a specific order to make it glanceable. On a wide display, the navigation map typically occupies the left two thirds of the screen, placing it closer to the driver. The right third is split into two smaller vertical cards. The top card usually shows your audio source, while the bottom card provides smart suggestions based on your recent activity or upcoming calendar events. This layout maximizes the horizontal space of your new screen. It prevents the screen from feeling cramped and allows you to process your route and your music simultaneously.
Configuring Dynamic Card Interfaces for Wide Aspect Ratios
Smartphone users have access to a flexible interface that partitions the display into distinct cards. Learning to move the taskbar and prioritize windows will significantly improve how much information you see.
Customizing Taskbar Placement for Maximum Map Space
The modern interface used by many smartphones allows the dashboard to adapt to wide rectangular screens. You can customize where the taskbar sits to make better use of the available space. Moving the bar from the bottom to the side is a popular choice for widescreen owners. To adjust this setting, follow this process:
- Access the settings menu within the phone integration software on your car display.
- Search for the option labeled taskbar position or navigation bar location.
- Select the option for the side or the left orientation.
- The system will refresh, and the icons will move to the side closest to the driver.
This configuration maximizes the usable vertical space on the display. It allows more map and media information to remain visible without overlapping, which is a major advantage of having a rectangular widescreen unit.
Ensuring Software Versions Support Multi-Window Functions
To use these advanced multitasking features, your mobile device must be running a current version of its operating system. If your screen only shows one app and refuses to split, you should check for updates on your phone. Most of these multi-window features are now standard across recent mobile operating system updates. Additionally, some specific settings in the phone menu allow you to toggle the multi-window view on or off. Verifying that these are active ensures your car display uses its full width to show your route and entertainment simultaneously.
Navigating the Native Tile Interface and Real-Time Vehicle Data
Even when a phone is not connected, the screen provides its own way to see multiple streams of data. The built-in interface allows for quick monitoring of your vehicle health and media.
Organizing Live Tiles for Simultaneous Information Monitoring
The home screen of the unit itself uses a series of large tiles that act as a native form of multitasking. Each tile is live, meaning it updates in real time without you having to click on it. You can configure the screen to show several pieces of data at once:
- A live digital speedometer and trip computer.
- Current media information from a radio or Bluetooth source.
- Real-time vehicle data like engine temperature and fuel levels.
- Local weather updates for your current route.
Because the native system reads data directly from the car computer, the display behaves more like an integrated instrument panel than a standalone tablet. This is useful when you want to monitor driving data and media information without connecting a phone.
Using Tactile Shortcuts for Quick Window Management
Navigating through these native tiles is handled by the rotary knob and the buttons around it. You can move the highlight from one tile to another by turning the knob. If you want to change what is inside a tile, you can often use the physical "Option" button to bring up a small list of alternatives. This allows you to switch your view from a fuel economy graph to a clock in just a few seconds. Using physical controls reduces the need to reach for on-screen touch targets, which makes it easier to manage multiple views while driving.
Integrating the Factory Vehicle Menu with the New Hardware
Upgrading your screen does not mean losing access to the original car settings. You can switch between the modern software and the factory interface while maintaining a cohesive look across both systems.
Switching Between the Modern Software and Factory Menus
These displays work in a dual-system mode where the new software runs alongside the original factory computer. You can jump back and forth between the two systems with a simple physical command. To manage this switch, use the following steps:
- Locate the "Menu" or "Back" button on your center console.
- Press and hold the button for about three seconds.
- The BMW screen will flip from the modern apps to the original factory interface.
- Perform the same long press to return to the widescreen multitasking view.
PEMP (9213) for BMW F30 F36 F80 F82 Linux NBT CIC Wired and Wireless Apple CarPlay Retrofit Android Auto，10.25" 1920 x 720 Display Mirror Link Car Radio Bluetooth Video Player Screen (2012-2017)
Switching back to the factory interface is still required for adjusting vehicle settings or checking service information. Being able to move between the two systems gives you access to both modern apps and factory functions.
Coding the Vehicle to Support Widescreen Resolutions
If your original factory menu looks stretched or is confined to a small box with black bars on the side, your car computer may need an adjustment. This happens because the car still thinks it is connected to a smaller original screen. You can use third-party diagnostic apps on your phone to change this. By telling the car computer that it now has a larger display, the original menus will reformat to fill the entire width of the glass. Once the car is coded for the wider display, the factory split-screen feature can show vehicle data in a sidebar alongside the main menu, making better use of the available space.
Troubleshooting Common Resolution and Audio Routing Issues
Technical glitches can sometimes interfere with a perfect split-screen view. You can resolve most common problems with simple adjustments in the factory settings menu.
Correcting Stretched Images and Aspect Ratio Errors
If icons look pulled sideways or text is blurry, you are likely experiencing a resolution mismatch. This is a common setup issue that is fixed by selecting the correct vehicle profile in the internal settings. Follow these steps to fix the image:
- Go to the settings menu on the native screen.
- Find the factory or system settings section.
- Enter the specific passcode provided by the unit manufacturer, such as 0703 or 1314.
- Look for the car type or display resolution list.
- Select the profile that matches your vehicle year and original screen size.
After a quick reboot, the icons and text should look sharp and correctly proportioned. This ensures that the split-screen windows are easy to read and aligned perfectly.
Resolving Audio Focus and Volume Conflicts
A common multitasking issue is hearing two audio sources at once, such as your phone navigation talking over the factory radio. This usually occurs because the audio routing is not set correctly. To fix this, you should follow this logic:
- Set the original factory audio source to the "AUX" or "USB" input.
- Ensure the volume on the factory system is set to a moderate level.
- Use the volume settings on the new display to balance navigation and music.
Setting the correct audio path allows the new software to manage the volume levels of all its active apps. This means the system can automatically lower the music volume whenever a navigation voice prompt occurs, preventing the two sounds from fighting each other.
FAQs about Split Screen and Display Settings
Q1: How Do I Turn On Split Screen on My Car?
To use split screen on the factory system, move your controller to the right while in a menu and check the box for split screen. For the new widescreen interface, you should tap the multi-window icon inside your phone link app to see your map and music side by side.
Q2: Does This Screen Support Split Screen for Navigation and Music?
Yes, this is one of the main advantages of the wider display. Both modern phone integration systems and the native interface will partition the screen to show a navigation map and a media player at the same time once the correct mode is selected.
Q3: Why Is the Image Not Filling the Whole Screen?
If the original car menu is small or has black bars, the car computer likely needs to be coded to recognize the larger screen size. If the new software is not filling the glass, you should check the factory settings of the unit to ensure the correct car profile is chosen.
Q4: Can I Watch Videos While Using a Map?
For safety and system stability, these Linux-based units focus on driving-related multitasking. Therefore, playing video in a split-screen window is not supported, especially while the vehicle is in motion.
Q5: What Is the Best Way to Switch Between the Two Systems?
The most efficient method is to long-press the physical "Menu" button on your iDrive console. This allows you to toggle instantly between the modern interface and your original BMW factory menu.
