Introduction
The BMW E60 5 Series, produced from 2003 to 2010, was groundbreaking in its time with the introduction of the iDrive system. However, as technology has rapidly evolved, the original CCC (Car Communication Computer) system now feels dated with its small screen, limited functionality, and lack of modern connectivity options like smartphone integration, high-resolution displays, and current navigation databases.
Upgrading to a modern Android-based navigation system transforms your classic BMW into a contemporary driving experience while maintaining all original vehicle functions. This comprehensive guide walks you through the complete installation process of a 10.25" HD Android touchscreen system, featuring a powerful Qualcomm 8-core processor, 4GB RAM, and 64GB storage.
This installation guide is based on the professional PEMP Car Audio vertical screen system, which has been specifically engineered for BMW E60 models with CCC systems. The upgrade provides modern navigation, smartphone connectivity, streaming capabilities, and a dramatically improved user interface while preserving your car's original aesthetic and functionality.
What You'll Need
Components Required
- Android Touchscreen Unit - 10.25" HD display with Qualcomm 8-core processor, 4GB RAM + 64GB storage
- Main Android Wiring Harness - Pass-through design with Quadlock connectors
- GPS Antenna - High-sensitivity antenna for precise navigation
- 4G/LTE Antenna - For mobile data connectivity
- USB Cables - Multiple cables for device connectivity
- LVDS Cable - High-quality video signal transmission
- Screen Mounting Hardware - Custom base and metal brackets
Tools Required
- Plastic Pry Tool - Essential for non-destructive trim removal
- T20 Torx Screwdriver - For main component removal
- T10 Torx Screwdriver - For smaller fasteners
- Precision Tweezers - Critical for fiber optic cable handling
- Soft Microfiber Cloth - For surface protection during installation
- Work Light - For better visibility in dashboard cavities
- Magnetic Parts Tray - To prevent losing small screws
Step-by-Step Installation Process
Step 1: Dashboard Disassembly
Begin the installation by carefully removing the decorative wood trim and air vent assembly. Use plastic pry tools exclusively to prevent scratching or damaging the dashboard surfaces. Start at one end of the trim piece and work your way across, gently releasing each clip. This non-destructive approach is crucial for maintaining the interior's pristine appearance.
Once the upper trim is removed, carefully extract the climate control panel by disconnecting its electrical connectors. This provides access to the components mounted behind the dashboard. Take photos before disconnecting any connectors to ensure proper reassembly.
Step 2: Removing the Original Head Unit
With the climate control panel removed, you now have access to the original BMW CD/DVD drive unit. Carefully extract this unit from the center console, noting how it slides out on its mounting rails. Disconnect the main wiring harness (Quadlock connector) at the rear of the unit.
Important: This original head unit will be reinstalled later in the process. The new Android system works as a "pass-through" design, allowing you to maintain all original BMW functions including radio, CD playback, and vehicle system integration. Store the unit safely during the installation process.
Step 3: Critical Wiring Connections - The MOST Important Step
⚠️ CRITICAL WARNING: This is the most important step in the entire installation process. Failure to complete this step correctly will result in complete audio system failure.
Fiber Optic Cable Transfer: For BMW E60 models equipped with fiber optic sound systems (MOST - Media Oriented Systems Transport), you must carefully transfer the fiber optic cable from the original harness to the new Android harness.
Using precision tweezers, locate the small green 2-pin fiber optic (MOST) cable on the original wiring harness. Carefully unclip this cable and transfer it to the corresponding slot on the new Android harness. This cable carries all audio signals throughout the vehicle's sound system. Handle it with extreme care as fiber optic cables are fragile and expensive to replace.
Step 4: Complete Wiring Integration
Now complete the comprehensive wiring integration. Connect the pass-through harness between the car's main Quadlock connector and the original head unit. This configuration allows the Android system to intercept and process signals while maintaining full compatibility with BMW's systems.
Route the new system cables strategically: GPS antenna cable, 4G antenna cable, and USB extension cables should be routed to the passenger side glove box area for clean installation and easy access. Connect all cables to the Android screen unit: main power harness, blue LVDS video cable, and both antenna connections.
Antenna Placement: Position the GPS and 4G antennas on the passenger side A-pillar, high up and away from metal obstructions. This location provides optimal satellite and cellular signal reception while remaining completely hidden.

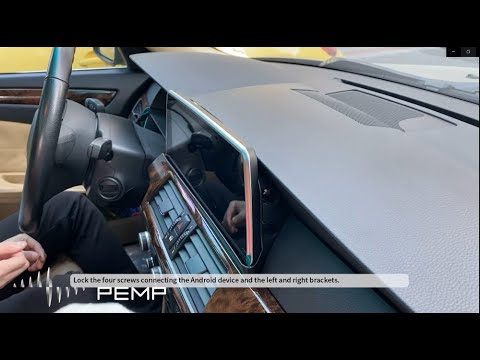

Step 5: Installing the New Android Screen
Install the new mounting brackets in place of the original screen mounting hardware. These custom brackets are specifically designed to accommodate the larger 10.25" widescreen format while maintaining perfect alignment with the dashboard contours.
Carefully align the Android unit with the mounting brackets, ensuring all connection points are properly seated. The size difference compared to the original screen is immediately apparent - the new display is significantly larger and provides a much more modern appearance that complements the BMW interior design.
Secure the screen firmly in position using the provided hardware. Ensure the screen sits flush with the dashboard and that there are no gaps or misalignments that would compromise the professional appearance of the installation.
Step 6: Final Assembly and Testing
Reinstall all dashboard components in reverse order: climate control panel, decorative trim pieces, and air vent assemblies. Ensure all clips engage properly and that panel gaps are consistent with the original factory appearance.
Start the vehicle to conduct comprehensive system testing. Verify the following functions:
- Power and Boot Sequence: Android system should start within 10-15 seconds
- Touch Functionality: All areas of the screen should respond accurately
- Audio Output: Test both system sounds and music playback
- Navigation: GPS signal acquisition and route calculation
- Bluetooth Connectivity: Phone pairing and audio streaming
- Original BMW Functions: Radio, CD player, and vehicle information displays
The transformation is remarkable - the modern Android interface with large, clear icons completely replaces the dated BMW system while maintaining seamless integration with all vehicle functions.
Key Technical Highlights
- Qualcomm 8-core Processor: Ensures smooth, responsive performance for all applications and navigation functions
- 10.25" HD Touchscreen: Crisp, clear display with excellent visibility in all lighting conditions
- Pass-through Design: Maintains 100% compatibility with all original BMW functions and systems
- 4GB RAM + 64GB Storage: Ample memory for navigation maps, applications, and media storage
- CCC System Compatibility: Specifically engineered for BMW E60 models with CCC iDrive systems
- Dual Connectivity: Built-in Wi-Fi and 4G LTE for internet access and real-time traffic updates
- Multi-format Support: Plays virtually all audio and video formats
Important Notes and Professional Tips
- AUX Audio Activation: If your BMW doesn't currently have an AUX AUDIO menu in the original system, you must purchase and install an AUX activation tool before beginning this installation
- Fiber Optic Cable Handling: This is the most critical aspect of the installation. Take extreme care when handling the MOST cable - it's fragile and essential for audio functionality
- Tool Selection: Use only plastic pry tools for trim removal. Metal tools will permanently scratch interior surfaces
- Installation Time: Allow 2-3 hours for complete installation. Rushing this process increases the risk of damage or connection errors
- Original Function Preservation: All original BMW functions remain fully operational after installation, including steering wheel controls, voice commands, and system integration
- Professional Installation: If you're not comfortable working with car electronics or fiber optic systems, professional installation is strongly recommended
Where to Purchase
This complete BMW E60 Android navigation upgrade kit is available from authorized retailers:
- PEMP Store: Official BMW E60 CCC Vertical Android Screen
- Amazon USA: Multiple purchasing options available with fast shipping
- Additional Accessories: Reversing camera, AUX activator, and installation accessories available separately
Package Includes: Android screen unit, all necessary wiring harnesses, mounting hardware, antennas, and detailed installation instructions.
Upgrade Your E60 Now
This Android navigation screen upgrade represents a remarkable transformation for the BMW E60, bringing cutting-edge technology to a classic luxury sedan. The installation process, while requiring attention to detail and careful handling of components, results in a seamless integration that looks and functions as if it were designed by BMW's original engineers.
The combination of modern Android functionality, high-resolution display, and preserved BMW system integration creates the perfect balance between contemporary technology and classic automotive design. Whether you're navigating with real-time traffic updates, streaming music via Bluetooth, or accessing your favorite apps, this upgrade enhances every aspect of your driving experience while maintaining the sophisticated character that makes the E60 special.
For those not comfortable with automotive electronics or fiber optic systems, professional installation ensures optimal results and preserves your vehicle's warranty and integrity. The investment in this upgrade not only improves daily usability but also adds significant value to your BMW E60.
