iDrive is a control and communication system that BMW has introduced and used to this day since 2001.
The purpose of the iDrive system is to integrate all in-vehicle control functions into a single system. Depending on your vehicle model and year, the iDrive on-board computer may be of the CCC, CIC, NBT, or EVO type. To help you better select a suitable CarPlay large screen, we will introduce the basic methods for distinguishing these iDrive system types in the subsequent chapters.

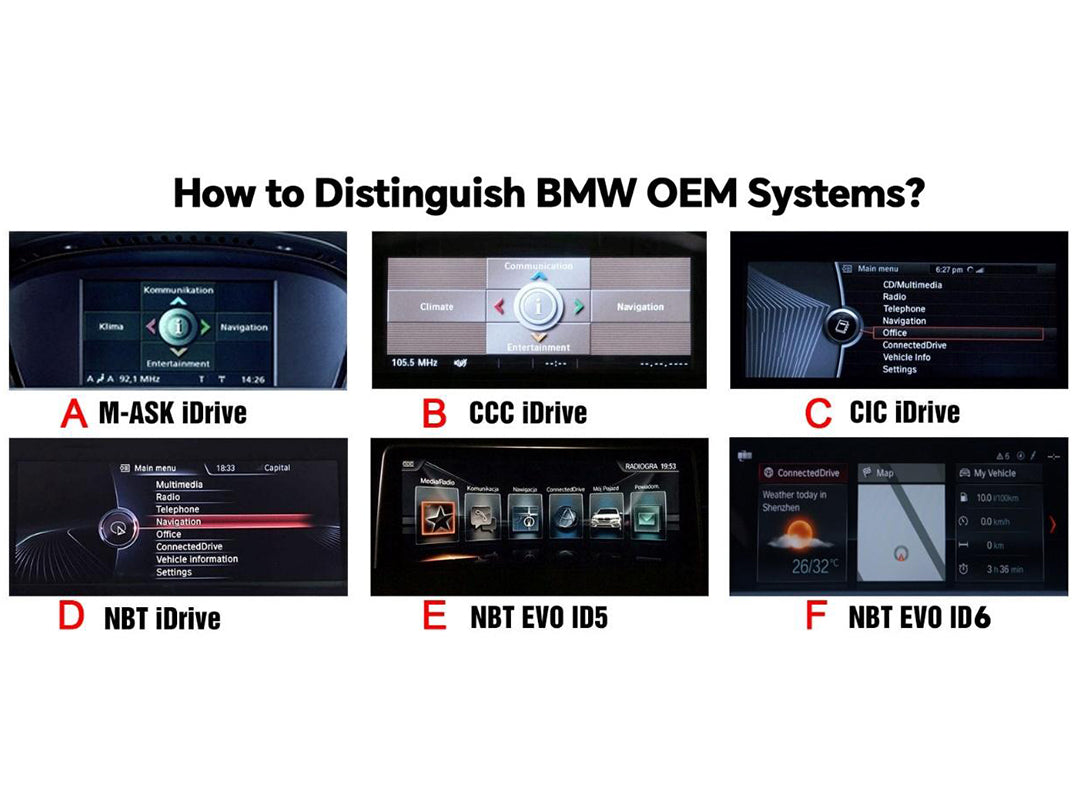

There are two simple methods to help you distinguish between different iDrive systems.
1.By User Interface
Most iDrive systems have a specific interface, so you must also check the appearance of the menu, compare it with that of other iDrive systems, and then determine the iDrive version based on the production year.
2.By Production Year
Of course, this does not guarantee that you can determine your iDrive version with 100% accuracy, as production months may vary in certain countries/regions. However, it can at least give you a general idea of which iDrive system your BMW is likely equipped with.
CCC:
UI Appearance:
LVDS Interface:
10-Pin
Production Year / Vehicle Model:
|
Series/Model |
Timeframes |
|
1-Series E81/E82/E87/E88 |
06/2004 – 09/2008 |
|
3-Series E90/E91/E92/E93 |
03/2005 – 09/2008 |
|
5-Series E60/E61 |
12/2003 – 11/2008 |
|
6-Series E63/E64 |
12/2003 – 11/2008 |
|
X5 Series E70 |
03/2007 – 10/2009 |
|
X6 E72 |
05/2008 – 10/2009 |
CIC:
UI Appearance:
LVDS Interface:
4-Pin
Production Year / Vehicle Model:
|
Series/Model |
Timeframes |
|
1-Series E81/E82/E87/E88 |
09/2008 – 03/2014 |
|
1-Series F20/F21 |
09/2011 – 03/2013 |
|
3-Series E90/E91/E92/E93 |
09/2008 – 10/2013 |
|
3-Series F30/F31/F34/F80 |
02/2012 – 11/2012 |
|
5-Series E60/E61 |
11/2008 – 05/2010 |
|
5-Series F07 |
10/2009 – 07/2012 |
|
5-Series F10 |
03/2010 – 09/2012 |
|
5-Series F11 |
09/2010 – 09/2012 |
|
6-Series E63/E64 |
11/2008 – 07/2010 |
|
6-Series F06 |
03/2012 – 03/2013 |
|
6-Series F12/F13 |
12/2010 – 03/2013 |
|
7-Series F01/F02/F03 |
11/2008 – 07/2013 |
|
7-Series F04 |
11/2008 – 06/2015 |
|
X1 E84 |
10/2009 – 06/2015 |
|
X3 F25 |
10/2010 – 04/2013 |
|
X5 E70 |
10/2009 – 06/2013 |
|
X6 E71 |
10/2009 – 08/2014 |
|
Z4 E89 |
04/2009 – present |
NBT(ID4):
UI Appearance:
LVDS Interface:
6-Pin
Production Year / Vehicle Model:
|
Series/Model |
Timeframes |
|
1-Series F20/F21 |
03/2013 –06/2016 |
|
2-Series F22/F23 |
11/2013 –06/2016 |
|
3-Series F30/F31 |
11/2012 –06/2016 |
|
3-Series F34 |
03/2013 –06/2016 |
|
3-Series F80 |
03/2014 –06/2016 |
|
4-Series F32 |
07/2013 –06/2016 |
|
4-Series F33 |
11/2013 –06/2016 |
|
4-Series F36 |
03/2014 –06/2016 |
|
5-Series F07 |
07/2012 – present |
|
5-Series F10/F11/F18 |
09/2012 – present |
|
6-Series F06/F12/F13 |
03/2013 –06/2016 |
|
7-Series F01/F02/F03 |
07/2012 – 06/2015 |
|
7-Series G11/G12/G13 |
07/2015 – 06/2016 |
|
X3 F25 |
04/2013 –06/2016 |
|
X4 F26 |
04/2014 –06/2016 |
|
X5 F15 |
08/2014 – 07/2016 |
|
X5 F85 |
12/2014 – 07/2016 |
|
X6 F16 |
08/2014 – 07/2016 |
|
X6 F86 |
12/2014 – 07/2016 |
|
i3 |
09/2013 – present |
|
i8 |
04/2014 – present |
EVO(ID5 ID6):
UI Appearance:
ID5
ID6
LVDS Interface:
6-Pin
Production Year / Vehicle Model:
|
Series/Model |
Timeframes |
|
1-Series F20/F21 |
07/2016 – 2019 |
|
2-Series F22 |
07/2016 – 2021 |
|
3-Series F30/F31/F34/F80 |
07/2016 – 2018 |
|
4-Series F32/F33/F36 |
07/2016 – 2019 |
|
5-Series G30/G31/G38 |
10/2016 – 2019 |
|
6-Series F06/F12/F13 |
07/2016 – 2018 |
|
6-Series G32 |
07/2017 – 2018 |
|
7-Series G11/G12/G13 |
07/2016 – 2019 |
|
X1 F48 |
2015 – 2022 |
|
X2 F39 |
2018 – present |
|
X3 F25 |
07/2016 – 2017 |
|
X3 G01 |
11/2017 – present |
|
X4 F26 |
07/2016 – 2018 |
|
X5 F15/F85 |
07/2016 – 2018 |
|
X6 F16/F86 |
07/2016 – 2018 |
|
i3 |
09/2018–present |
|
i8 |
09/2018- 2020 |
